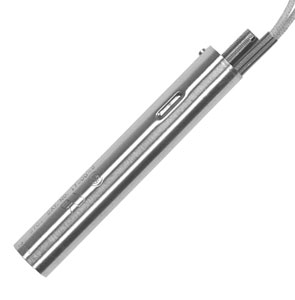

Cartridge and Immersion Temperature Controllers

17000/18000 Series

Cartridge and Immersion Temperature Controllers | 17000/18000 Series

Cartridge and Immersion Temperature Controllers

ZUR BESTELLTABELLE
  • 17000/18000 Series
    • Cartridge and Hex Head Immersion (17000 Series)
    • Coupling Head Immersion (18000 Series)
    • Non-Indicating
    • -73 to 316°C (-100 to 600°F) Temperature Range
    • Slow Make and Break SPST
    • 0.1°C Accuracy
    • Not Recommended for Pilot Duty Switching of Mechanical Contactor
Regler, Anzeiger und Schaltgeräte - Verwandte Produkte anzeigen

Beschreibung

Application (17000/18000 Series)
Cartridge type is designed for drilled hole cartridge heating installations in molding presses, platens, rubber vulcanizers, hot plates, etc.

Features
  • Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application . Resolution sensitivity of 0.1°C (0.1°F) offers close control of process
  • Compact size; lengths under 127 mm (5") and diameters less than 20.6 mm (13.16") fit almost any application
  • Fast response as external metal shell expands or contracts with each temperature change
  • Sheathing is brass for low range units; stainless steel for higher temperature use
  • Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads.


SPECIFICATIONS
Well Assembly Pressure Ratings: 690 kPa at 120°C (100 psi at 250°F), 415 kPa at 260°C (60 psi at 500°F)
Well Assembly Material: Type 321 stainless steel
Current Rating: 10 A at 120 Vac; 5 Amps at 240 Vac
Extreme Temperature Exposures: May be exposed to -74°C (-100°F) indefinitely; they may be exposed to high temperature for one hour maximum, refer to the chart.
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
17000-0
Consult Sales
Lieferzeit:


-73 to 204 (-100 to 400) Temperature Range, Opens on Temperature Rise
17021-0
€507,05
Lieferzeit: 1 Woche

-73 to 204 (-100 to 400) Temperature Range, Closes on Temperature Rise
17002-0
€1.061,21
Lieferzeit: 5 Wochen

-73 to 315 (-100 to 600) Temperature Range, Opens on Temperature Rise
17023-0
€527,64
Lieferzeit: 7 Wochen

-73 to 315 (-100 to 600) Temperature Range, Closes on Temperature Rise
17052-0
€574,03
Lieferzeit: 7 Wochen

-73 to 315 (-100 to 600) Temperature Range, Opens on Temperature Rise
Hex Head Immersion Type (With Knob and Dial)
17100-0
Consult Sales
Lieferzeit:


-73 to 204 (-100 to 400) Temperature Range, Opens on Temperature Rise
17121-0
Consult Sales
Lieferzeit:


-73 to 204 (-100 to 400) Temperature Range, Closes on Temperature Rise
17102-0
Consult Sales
Lieferzeit:


-73 to 315 (-100 to 600) Temperature Range, Opens on Temperature Rise
17123-0
Consult Sales
Lieferzeit:


-73 to 315 (-100 to 600) Temperature Range, Closes on Temperature Rise
17152-0
Consult Sales
Lieferzeit:


-73 to 315 (-100 to 600) Temperature Range, Opens on Temperature Rise
17000-0
Consult Sales
Lieferzeit:


-73 to 204 (-100 to 400) Temperature Range, Opens on Temperature Rise
17021-0
€507,05
Lieferzeit: 1 Woche

-73 to 204 (-100 to 400) Temperature Range, Closes on Temperature Rise
17002-0
€1.061,21
Lieferzeit: 5 Wochen

-73 to 315 (-100 to 600) Temperature Range, Opens on Temperature Rise
17023-0
€527,64
Lieferzeit: 7 Wochen

-73 to 315 (-100 to 600) Temperature Range, Closes on Temperature Rise
17052-0
€574,03
Lieferzeit: 7 Wochen

-73 to 315 (-100 to 600) Temperature Range, Opens on Temperature Rise
Hex Head Immersion Type (With Knob and Dial)
17100-0
Consult Sales
Lieferzeit:


-73 to 204 (-100 to 400) Temperature Range, Opens on Temperature Rise
17121-0
Consult Sales
Lieferzeit:


-73 to 204 (-100 to 400) Temperature Range, Closes on Temperature Rise
17102-0
Consult Sales
Lieferzeit:


-73 to 315 (-100 to 600) Temperature Range, Opens on Temperature Rise
17123-0
Consult Sales
Lieferzeit:


-73 to 315 (-100 to 600) Temperature Range, Closes on Temperature Rise
17152-0
Consult Sales
Lieferzeit:


-73 to 315 (-100 to 600) Temperature Range, Opens on Temperature Rise
Coupling Head Immersion Type
18000-0
Consult Sales
Lieferzeit:


-73 to 204 (-100 to 400) Temperature Range, Opens on Temperature Rise
18021-0
€769,44
Lieferzeit: 7 Wochen

-73 to 204 (-100 to 400) Temperature Range, Closes on Temperature Rise
18002-0
€649,37
Lieferzeit: 7 Wochen

-73 to 315 (-100 to 600) Temperature Range, Opens on Temperature Rise
18023-0
€1.472,67
Lieferzeit: 7 Wochen

-73 to 315 (-100 to 600) Temperature Range, Closes on Temperature Rise
*Alle Preisangaben in Euro.
 Anmerkung: All models are UL recognized
Important: Connect 0.1 µf capacitor across switch leads on all 240 Vac applications.
