Norgren Excelon® Modular Compressed Air Line Filter/Regulators for control and protection of pneumatic equipment.

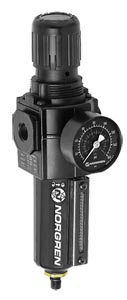

B72G Series Inline and Modular Air Line Filter / Pressure Regulator

Norgren Excelon® Modular Compressed Air Line Filter/Regulators for control and protection of pneumatic equipment. | B72G Series Inline and Modular Air Line Filter / Pressure Regulator

€118,41 B72G-2AK-AE3-RMG

ZUR BESTELLTABELLE
  • FRL's for In-Line or Modular Installation
  • High Efficiency Water and Particle Removal
  • Quick Release Bayonet Bowl
  • Push to Lock Adjusting Knob with Tamper Resistant Accessory
  • Optional Patented Quarter Turn Manual Drain
Bewegung - Verwandte Produkte anzeigen

Beschreibung

The B72G Series Air Line Filter / Pressure Regulators are designed for use as a single in-line unit or as part of a Norgren's Excelon® modular compressed air preparation supply system. As a modular pneumatic component, this air line filter / regulator can quickly be attached to oilers, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes. This air line filter / regulator is designed for high efficiency water and particle removal, and come with a push to lock adjusting knob.


SPECIFICATIONS
Fluid: Compressed air
Maximum Pressure:
    Transparent Bowl: 10 bar (150 psig)
    Metal Bowl: 17 bar (250 psig)
    B72G with Metal Bowl and Auto Drain: 10 bar (150 psig)
Operating Temperature*:
Transparent Bowl: -34 to 50°C (-30 to 125°F)
Metal Bowl: -34 to 80°C (-30 to 175°F)

B72G MATERIALS
Body: Zinc
Bonnet: Acetal
Valve: Brass
Transparent Bowl: Polycarbonate

Metal Bowl: Zinc Liquid Level Indicator Lens
(Metal Bowl): Transparent nylon
Element: Sintered polypropelene Elastomers: Neoprene and nitrile

B73G AND B74G MATERIALS
Body and Bonnet: Aluminum
Transparent Bowl: Polycarbonate
Guarded Transparent Bowl: Polycarbonate with steel
Metal Bowl: Aluminum Liquid Level Indicator Lens
(Metal Bowl): Transparent nylon (Pyrex® optional)
Element: Sintered polypropelene
Elastomers: Neoprene and nitrile
*Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F)


ordering options



IMPERIAL DIMENSIONS: FILTER/REGULATOR (in)
SERIES DRAIN TYPE A B C E F G H PANEL DIA PANEL DEPTH
72 Semi auto 6.46 8.46 1.02 2.87 1.97 1.89 1.38 1.57 0 to 0.16
72 Auto 5.98 7.99 1.02 2.87 1.97 1.89 1.38 1.57 0 to 0.16
72 Manual 5.28 7.28 1.02 2.87 1.97 1.89 1.38 1.57 0 to 0.16
73 Auto 6.48 8.84 1.22 3.78 2.68 2.44 2.2 1.89 0.07 to 0.25
73 Manual 6.14 8.5 1.22 3.78 2.68 2.44 2.2 1.89 0.07 to 0.25
74 Auto 7.03 9.75 1.22 5 3.15 2.91 2.2 2.05 0.07 to 0.25
74 Manual 6.97 9.69 1.22 5 3.15 2.91 2.2 2.05 0.07 to 0.25
METRIC DIMENSIONS: FILTER/REGULATOR (mm)
72 Semi auto 164 215 26 73 50 48 35 40 0 to 4
72 Auto 152 203 26 73 50 48 35 40 0 to 4
72 Manual 134 185 26 73 50 48 35 40 0 to 4
73 Auto 165 225 31 96 68 62 56 48 1.8 to 6.4
73 Manual 156 216 31 96 68 62 56 48 1.8 to 6.4
74 Auto 179 248 31 127 80 74 56 52 1.8 to 6.4
74 Manual 177 246 31 127 80 74 56 52 1.8 to 6.4
IMPERIAL DIMENSIONS: NECK MOUNTING BRACKETS (in)
SERIES J K L M N P R S T V
72 0.31 1.93 1.5 2.5 1.18 0.94 —- 0.17 0.31 0.59
73 0.67 2.52 1.5 2.76 1.5 1.5 0.98 0.28 —- —-
74 0.94 3.5 2.05 3.39 2.2 1.38 0.91 0.28 —- —-
METRIC DIMENSIONS: NECK MOUNTING BRACKETS (mm)
72 7.9 49.0 38.1 63.5 30.0 23.9 —- 4.3 7.9 15.0
73 17.0 64.0 38.1 70.1 38.1 38.1 24.9 7.1 —- —-
74 23.9 88.9 52.1 86.1 55.9 35.1 23.1 7.1 —- —-
Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.
Stk
Beschreibung
Pneumatic Filter / Pressure Regulators

B72G-2AK-AE1-RMG
Consult Sales
Lieferzeit:


5 µm Air Line Filter/Regulator ¼" NPT Port
Click to expand/minimize a list of what others bought with theB72G-2AK-AE3-RMG
B72G-2AK-AE3-RMG
€118,41
Lieferzeit: 1 Woche

40 µm Air Line Filter/Regulator ¼" NPT Port

B72G-2AK-QD1-RMG
Consult Sales
Lieferzeit:


5 µm Air Line Filter/Regulator ¼" NPT Port with manual drain

B72G-2AK-QD3-RMG
Consult Sales
Lieferzeit:


40 µm Air Line Filter/Regulator ¼" NPT Port with manual drain

B73G-3AK-AD1-RMG
Consult Sales
Lieferzeit:


5 µmAir Line Filter/Regulator 3⁄8" NPT Port

B73G-3AK-AD3-RMG
Consult Sales
Lieferzeit:


40 µmAir Line Filter/Regulator 3⁄8" NPT Port

B73G-3AK-QD1-RMG
Consult Sales
Lieferzeit:


5 µmAir Line Filter/Regulator 3⁄8" NPT Port with manual drain

B73G-3AK-QD3-RMG
Consult Sales
Lieferzeit:


40 µmAir Line Filter/Regulator 3⁄8" NPT Port with manual drain

B74G-4AK-AD1-RMG
Consult Sales
Lieferzeit:


5 µm Air Line Filter/Regulator ½" NPT Port

B74G-4AK-AD3-RMG
Consult Sales
Lieferzeit:


40 µm Air Line Filter/Regulator ½" NPT Port

B74G-4AK-QD1-RMG
Consult Sales
Lieferzeit:


5 µm Air Line Filter/Regulator ½" NPT Port with manual drain

B74G-4AK-QD3-RMG
Consult Sales
Lieferzeit:


40 µm Air Line Filter/Regulator ½" NPT Port with manual drain

B72G-2GK-AE3-RMG
Consult Sales
Lieferzeit:


40 µm Air Line Filter/Regulator ¼"R Port

B73G-3GK-AD3-RMG
Consult Sales
Lieferzeit:


40 µm Air Line Filter/Regulator 3⁄8"R Port

B74G-4GK-AD3-RMG
Consult Sales
Lieferzeit:


40 µm Air Line Filter/Regulator ½"R Port
Accessories

OM-AIR-74316-50
€11,21
Lieferzeit: 1 Woche

Neck mounting bracket fro B72G

OM-AIR-4461-50
€12,67
Lieferzeit: 1 Woche

Neck mounting bracket for B73G

OM-AIR-4368-51
€23,88
Lieferzeit: 1 Woche

Neck mounting bracket for B74G

OM-AIR-4224-50
Consult Sales
Lieferzeit:


Wall mounting bracket for B72G models

OM-AIR-4424-50
Consult Sales
Lieferzeit:


Wall mounting bracket for B73G models

OM-AIR-4324-50
Consult Sales
Lieferzeit:


Wall mounting bracket for B74G models
Click to expand/minimize a list of what others bought with theOM-AIR-18-013-214
OM-AIR-18-013-214
Consult Sales
Lieferzeit:


Gauge, (1⁄8" NPT), 1.5" diameter, 0 to 30 psi for B72G

OM-AIR-18-013-211
Consult Sales
Lieferzeit:


Gauge, (1⁄8" NPT), 1.5" diameter, 0 to 60 psi for B72G
Click to expand/minimize a list of what others bought with theOM-AIR-18-013-212
OM-AIR-18-013-212
Consult Sales
Lieferzeit:


Gauge, (1⁄8" NPT), 1.5" diameter, 0 to 11 Bar (160 psi ) For B73G & B74G

OM-AIR-18-013-207
Consult Sales
Lieferzeit:


Gauge, (¼"), 2" diameter, 0 to 30 psi for B73G & B74G

OM-AIR-18-013-208
Consult Sales
Lieferzeit:


Gauge, (¼"), 2" diameter, 0 to 60 psi for B73G & B74G
Click to expand/minimize a list of what others bought with theOM-AIR-18-013-209
OM-AIR-18-013-209
€17,08
Lieferzeit: 1 Woche

Gauge, (¼"), 2" diameter, 0 to 160 psi for B73G & B74G

OM-AIR-4248-89
Consult Sales
Lieferzeit:


Panel nut for B72G

OM-AIR-5191-88
Consult Sales
Lieferzeit:


Panel nut for B73G

OM-AIR-4348-89
Consult Sales
Lieferzeit:


Panel nut for B74G
Replacement Filter Elements

OM-AIR-4338-04
Consult Sales
Lieferzeit:


B74G Replacement filter element, 5 µm

OM-AIR-4338-05
€13,89
Lieferzeit: 1 Woche

B74G Replacement filter element, 40 µm

OM-AIR-4438-01
Consult Sales
Lieferzeit:


B73G Replacement filter element, 5 µm

OM-AIR-4438-03
Consult Sales
Lieferzeit:


B73G Replacement filter element, µm

OM-AIR-5925-02
Consult Sales
Lieferzeit:


B72G Replacement filter element, 40 µm

OM-AIR-5925-03
Consult Sales
Lieferzeit:


B72G Replacement filter element, 5 µm
*Alle Preisangaben in Euro.
 Anmerkung: Models listed include PTF threads, knob adjustment, automatic drain, metal bowl with liquid level indicator, 40 µm element, relieving diaphragm, 0.3 to 10 bar (5 to 150 psig) outlet pressure adjustment range* with gage. *Outlet pressure can be adjusted to pressures in excess of, and less than, those specified. Do not use these units to control pressures outside of the specified ranges.
Typical flow with 10 bar (150 psig) inlet pressure, 6.3 bar (90 psig) set pressure and a 1 bar (15 psig) droop from set.
 Ordering Example: (1) B72G-2AK-AE3-RMG Filter/regulator with ¼" port, flow of up to 80 scfm, metal bowl with liquid level indicator, knob adjustment and PTF threads., €118,41
