Heater Wiring Accessories: Ring Terminals, Butt-Splice Terminals, Twist-On Connectors and Bus Bars

BBS, BBP, RLNC and RLNI

Heater Hook-up Wire Accessories

Heavy Duty Crimp Tool and Wire Cutter
High Temperature Ring Terminals. Rated to 345°C or 650°C
Porcelain Twist-On Wire Connectors. Rated to 105°C
Solid and Perforated Bus Bars

Beschreibung

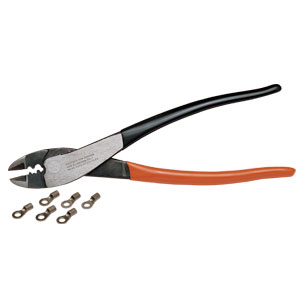

Crimp Tool This high quality crimp tool is suitable for crimping terminals onto 0.32 to 5.3mm² wire (10-22awg) and also serves as a wire cutter for aluminium and copper conductors.
High Temperature Ring Terminals Omega offers two types of crimp-on ring terminals: RLNC terminals are made from nickel-plated copper and are rated for temperatures up to 345°C. RLNI terminals are 100% nickel and rated to 650°C. Both types are suitable for use with terminals/studs up to 4.8mm diameter.
	Porcelain Twist-On Wire Connectors Omega's PWN twist-on wire connectors are a fast and efficient means of joining stranded copper conductors from 0.8 to 2mm². They are made from porcelain and rated to 105°C and 300V
Bus Bars High-temperature bus bars are solid or perforated to facilitate wiring. The perforated bus bar has 8.7 x 5.6mm slots on 11mm centres. When connecting elements with a bus bar, provide expansion loops between elements. The current ratings in the table below will cause a temperature rise of 38°C above ambient in the bus bar.

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

CT-HT

€113,87

Lieferzeit: 1 Woche

Crimping Tool

High Temperature Ring Terminals for up to 345°C (packs of 10)

RLNC-22

€6,71

Lieferzeit: 1 Woche

Nickel-plated copper ring terminals for 0.3 to 1.3mm² wire

RLNC-16

€8,67

Lieferzeit: 1 Woche

Nickel-plated copper ring terminals for 1.3 to 2mm² wire

RLNC-12

€9,94

Lieferzeit: 4 Wochen

Nickel-plated copper ring terminals for 3.3 to 5.2mm² wire

High Temperature Solid Nickel Ring Terminals for up to 650°C (packs of 10)

RLNI-22

€16,69

Lieferzeit: 4 Wochen

Nickel ring terminals for 0.3 to 1.3mm² wire

RLNI-16

€18,36

Lieferzeit: 1 Woche

Nickel ring terminals for 1.3 to 2mm² wire

RLNI-12

€25,92

Lieferzeit: 1 Woche

Nickel ring terminals for 3.3 to 5.2mm² wire

Porcelain Twist-On Wire Connectors (packs of 10)

PWN-S

Consult Sales

Lieferzeit:

Twist-on connectors. Min 2 x 0.82mm². Max. 2 x 1.3mm² with 1 x 0.82mm²

PWN-M

Consult Sales

Lieferzeit:

Twist-on connectors. Min 2 x 0.82mm². Max. 2 x 1.3mm² with 2 x 0.82mm²

PWN-L

Consult Sales

Lieferzeit:

Twist-on connectors. Min 2 x 0.82mm². Max. 4 x 1.3mm²

Bus Bars

BBS-A

€19,01

Lieferzeit: 5 Wochen

Solid Bus Bar 13mm wide. 0.08mm thick. 18Amp. (sold in units of 1foot/300mm)

BBS-B

€20,57

Lieferzeit: 5 Wochen

Solid Bus Bar 13mm wide. 1.6mm thick. 28Amp. (sold in units of 1foot/300mm)

BBP-A

€21,71

Lieferzeit: 5 Wochen

Perforated bus bar 13mm wide. 0.08mm thick. 9 amp. (sold in units of 1foot/300mm)

BBP-B

€24,93

Lieferzeit: 5 Wochen

Perforated bus bar 13 mm wide. 1.6mm thick. 16Amp. (sold in units of 1foot/300mm)

BBINS

€2,63

Lieferzeit: 1 Woche

Porcelain High Temperature Bus Bar Insulator

*Alle Preisangaben in Euro.
Anmerkung: Busbars are sold by the foot. 10ft minimum order quantity.
