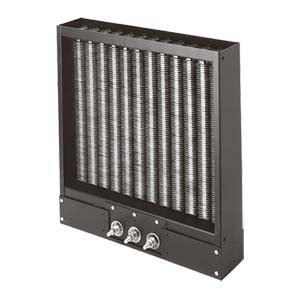

Low Temperature electric Air Duct Heaters

CAB and CABB Series

^€1.768,00 CAB-62/120V

ZUR BESTELLTABELLE

Side Terminals (type CAB)
Bottom Terminals (type CABB)
6 - 100 kW
120, 208, 240 and 480 Volt
1 or 3 Phase
Rust-Resisting Iron or Chrome Steel Sheath Elements
440°F Max. Outlet Air Temp.
Applications • Sole Heat Source
• Booster Heater in Process and Comfort Heating Ducts
• Convert existing Forced Air Dryers and Ovens
• With Blower and Duct, can be used to Fabricate simple Forced Air Drying Unit

(Prozess-)Lufterhitzer für Luftkanäle - Verwandte Produkte anzeigen

Beschreibung

Features
Simple Duct Transition Sections may be used to adapt standard heater sizes to various duct sizes to increase air velocities for better heat transfer, lower sheath temperature and longer element life.

Field Wiring Terminals — Heavy duty 3/8" diameter bolts of either brass (iron sheath units) or Stainless Steel (chrome steel sheath units) with necessary hardware are provided for field wiring connections. Terminals are located on the side for CAB units and on the bottom for CABB units, and should be on the outside of ducting.

Fins of aluminized steel are provided to improve heat transfer to the air.

Elements are individually replaceable.

Terminal Cover Option is available to prevent accidental contact with live electrical terminals (PCN 269720), one (1) required per circuit, $89. MONEL Sheath and MONEL Fins are available for humid conditions. Model TDH heaters, using Fintube elements are also available.

kW	Volts	Phase	Amps/ Circ.	No. Circ.	No. Elem.	A	B	D	Rust-Resisting Iron Sheath Temperatures to 750°F Model No.	Chrome Steel Sheath Temperatures to 950°F Model No.	Wt. (Lbs.)
CAB — Side Terminals (26 W/In2)
6 6 6 6 6 6 6	120 208 240 480 208 240 480	1 1 1 1 3 3 3	50 28.9 25 12.5 16.7 14.5 7.2	1 1 1 1 1 1 1	6 6 6 6 6 6 6	10 3/4 10 3/4 10 3/4 10 3/4 10 3/4 10 3/4 10 3/4	15 7/8 15 7/8 15 7/8 15 7/8 15 7/8 15 7/8 15 7/8	11 1/2 11 1/2 11 1/2 11 1/2 11 1/2 11 1/2 11 1/2	CAB-62/120V CAB-62/208V CAB-62/240V CAB-62/480V CAB-62/208V/3P CAB-62/240V/3P CAB-62/480V/3P	CAB-611/120V CAB-611/208V CAB-611/240V CAB-611/480V CAB-611/208V/3P CAB-611/240V/3P CAB-611/480V/3P	25 25 25 25 25 25 25
12 12 12 12 12 12	208 240 480 208 240 480	1 1 1 3 3 3	57.7 50 25 33.4 28.9 14.5	1 1 1 1 1 1	9 9 9 9 9 9	15 3/8 15 3/8 15 3/8 15 3/8 15 3/8 15 3/8	18 1/2 18 1/2 18 1/2 18 1/2 18 1/2 18 1/2	14 1/8 14 1/8 14 1/8 14 1/8 14 1/8 14 1/8	CAB-122/208V CAB-122/240V CAB-122/480V CAB-122/208V/3P CAB-122/240V/3P CAB-122/480V/3P	CAB-1211/208V CAB-1211/240V CAB-1211/480V CAB-1211/208V/3P CAB-1211/240V/3P CAB-1211/480V/3P	35 35 35 35 35 35
15 15 15 15 15 15	208 240 480 208 240 480	1 1 1 3 3 3	72.1 62.5 31.3 41.7 36.1 18.1	1 1 1 1 1 1	9 9 9 9 9 9	15 3/8 15 3/8 15 3/8 15 3/8 15 3/8 15 3/8	21 5/8 21 5/8 21 5/8 21 5/8 21 5/8 21 5/8	17 1/4 17 1/4 17 1/4 17 1/4 17 1/4 17 1/4	CAB-152/208V CAB-152/240V CAB-152/480V CAB-152/208V/3P CAB-152/240V/3P CAB-152/480V/3P	CAB-1511/208V CAB-1511/240V CAB-1511/480V CAB-1511/208V/3P CAB-1511/240V/3P CAB-1511/480V/3P	40 40 40 40 40 40
20 20 20	208 240 480	3 3 3	55.6 48.2 24.1	1 1 1	12 12 12	20 1/8 20 1/8 20 1/8	21 5/8 21 5/8 21 5/8	17 1/4 17 1/4 17 1/4	CAB-202/208V CAB-202/240V CAB-202/480V	CAB-2011/208V CAB-2011/240V CAB-2011/480V	55 55 55
25 25 25	208 240 480	3 3 3	69.5 60.2 30.1	1 1 1	12 12 12	20 1/8 20 1/8 20 1/8	26 1/8 26 1/8 26 1/8	21 3/4 21 3/4 21 3/4	CAB-252/208V CAB-252/240V CAB-252/480V	CAB-2511/208V CAB-2511/240V CAB-2511/480V	65 65 65
30	480	3	18.1	2	18	29 1/2	21 5/8	17 1/4	--	CAB-3011/480V	75
40 40 40	208 240 480	3 3 3	55.6 48.2 24.1	2 2 2	18 18 18	29 1/2 29 1/2 29 1/2	27 3/8 27 3/8 27 3/8	23 23 23	CAB-402/208V CAB-402/240V CAB-402/480V	CAB-4011/208V CAB-4011/240V CAB-4011/480V	90 90 90
50 50 50	208 240 480	3 3 3	69.5 60.2 30.1	2 2 2	18 18 18	29 1/2 29 1/2 29 1/2	33 1/8 33 1/8 33 1/8	28 3/4 28 3/4 28 3/4	CAB-502/208V CAB-502/240V CAB-502/480V	CAB-5011/208V CAB-5011/240V CAB-5011/480V	110 110 110
75 75 75	208 240 480	3 3 3	69.5 60.2 30.1	3 3 3	27 27 27	44 7/16 44 7/16 44 7/16	42 1/8 42 1/8 42 1/8	37 3/4 37 3/4 37 3/4	CAB-752/208V CAB-752/240V CAB-752/480V	CAB-7511/208V CAB-7511/240V CAB-7511/480V	200 200 200
100 100 100	208 240 480	3 3 3	92.6 80.3 40.1	3 3 3	27 27 27	44 7/16 44 7/16 44 7/16	47 1/2 47 1/2 47 1/2	43 1/8 43 1/8 43 1/8	CAB-1002/208V CAB-1002/208V CAB-1002/480V	CAB-10021/208V CAB-10021/208V CAB-10021/480V	220 220 220
CABB — Bottom Terminals (26 W/In2)
6 6	240 480	3 3	14.5 7.2	1 1	6 6	10 3/4 10 3/4	15 7/8 15 7/8	111/2 111/2	-- --	CABB-611/240 CABB-611/480	25 25
12 12 12	208 240 480	3 3 3	33.4 28.9 14.5	1 1 1	9 9 9	15 3/8 15 3/8 15 3/8	18 1/2 18 1/2 18 1/2	141/8 141/8 141/8	-- -- --	CABB-1211/208 CABB-1211/240 CABB-1211/480	35 35 35
20	480	3	24.1	1	12	20 1/8	21 5/8	171/4	--	CABB-2011/480	55
25	480	3	30.1	1	12	29 1/2	26 1/8	213/4	CABB-252/480	CABB-2511/480	65
40	480	3	24.1	2	18	29 1/2	27 3/8	23	CABB-402/480	CABB-4011/480	90
50	480	3	30.1	2	18	29 1/2	33 1/8	283/4	CABB-502/480	CABB-5011/480	110
75	480	3	30.1	3	27	44 7/16	42 1/8	373/4	CABB-752/480	CABB-7511/480	200
100	480	3	40.1	3	27	44 7/16	47 1/2	431/8	CABB-1002/480	CABB-10021/480	220

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

CAB-611/120V

€1.971,00

Lieferzeit: 7 Wochen

chrome steel sheath heater, 6 kW, 120 V, temperatures to 950°F

CAB-611/480V/3P

€1.971,00

Lieferzeit: 7 Wochen

chrome steel sheath heater, 6 kW, 480V, temperatures to 950°F, 3 phase

CAB-62/480V/3P

€1.768,00

Lieferzeit: 7 Wochen

rust-resisting iron sheath heater, 6 kW, 480 V, temperatures to 750°F, 3 phase

CAB-122/480V/3P

€2.730,00

Lieferzeit: 7 Wochen

rust-resisting iron sheath heater, 12 kW, 480 V, temperatures to 750°F, 3 phase

*Alle Preisangaben in Euro.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

(1)		(2)	(3)		(4)	(5)
	-			/

Optionsbeschreibungen:

(1) Model Wählen Sie:
CAB für Model CAB
CABB für Model CABB

(2) Wattage Wählen Sie:
6 für 6 kW
12 für 12 kW
15 für 15 kW
20 für 20 kW
25 für 25 kW
30 für 30 kW
40 für 40 kW
50 für 50 kW
75 für 75 kW
100 für 100 kW

(3) Code in Part Number Wählen Sie:
2 für code 2
11 für code 11

(4) Voltage Wählen Sie:
120V für 120 V
208V für 208 V
240V für 240 V
480V für 480 V
208 für 208 V
240 für 240 V
480 für 480 V

(5) Phase Wählen Sie:
Keine (Feld leer lassen) für 1 phase
/3P für 3 phase

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
