Circulation Heaters for Clean Water

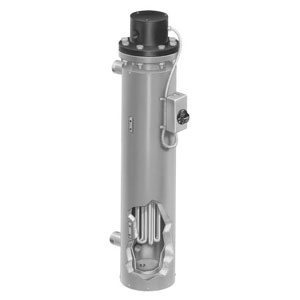

CHF7 Series

Circulation Heaters | CHF7 Series

Circulation Heaters

ZUR BESTELLTABELLE
  • Standard Element Sheath Materials
  • Incoloy® 800 — A Nickel (30 to 35%), Chromium (19 to 23%), Iron alloy. The high nickel content of this alloy contributes to its resistance to scaling and corrosion. Used in air heating (also see Incoloy® 840) and immersion heating of potable water and other liquids that are not corrosive to an Incoloy® 800 sheath.
  • Low Carbon Steel — Applications include fluid heat transfer media, tar, high to low viscosity petroleum oils, asphalt, wax, molten salt, and other solutions not corrosive to a steel sheath.
  • 316 Stainless Steel — A Chromium (16 to 18%), Nickel (11 to 14%), Iron Alloy with Molybdenum (2 to 3%) added to improve corrosion resistance in certain environments, especially those that would tend to cause pitting due to the presence of chlorides. Applications include deionized water.
  • Copper — Mainly used in clean water heating for washrooms, showers, rinse tanks and freeze protection of storage tanks.
Durchlauferhitzer - Verwandte Produkte anzeigen

Beschreibung

Surface Treatments for Stainless Steel and Incoloy® Elements and Other Wetted Parts to Improve Corrosion Resistance Flanged immersion heater surfaces in contact with the material being heated can be passivated or electro-polished to improve their resistance to corrosion. Passivation removes surface contamination, usually iron, so that the optimum corrosion resistance of the stainless steel is maintained. Surface contamination would come from the small amount of steel that may be worn off a tool during the manufacturing process. Passivating is accomplished by dipping the heater in a warm solution of nitric acid. Electro-Polishing is an electrochemical process that removes surface imperfections and contaminants, enhancing the corrosion resisting ability of the stainless steels. The resultant surface is clean, smooth and bright. Many medical and food applications require this finish.

8 watts/in2 (1.3 watts/cm2) — Typical Applications: Fuel Oils (Bunker C and Number 6)
Nominal Pipe Size Dimensional Drawing Number KW Model Number Approx Weight
120V 240V-1Ph (C*) 240V-3Ph (C*) 480V-1Ph (C*) 480V-3Ph (C*) lb kg
21⁄2 NPT 3 elements 2.2 2 — — CHF01100(1) — CHF01101(1) 37 17
2.3 3 — — CHF01102(1) — CHF01101(1) 46 21
3"—150 lb 3 elements 3.2 2 — — CHF01104(1) — CHF01105(1) 62 28
3.3 3 — — CHF01106(1) — CHF01107(1) 76 34
(C*) = Number of Branch Circuits per heater
60 watts/in2 (9.3 watts/cm2)—Typical Applications: Clean Water
Nominal Pipe Size Model Number Dim Drawing Number KW Approx Weight
120V 240V-1Ph (C*) 240V-3Ph (C*) 480V-1Ph (C*) 480V-3Ph (C*) lb kg
11⁄4 NPT 2 elements CHF01859 CHF01860(1) — — — 1.1 3 14 6
— CHF01861(1) — — — 1.1 4 14 6
— CHF01862(1) — — — 1.2 5 17 8
— CHF01863(1) — — — 1.2 6 18 8
21⁄2 NPT 3 elements — CHF01864(1) CHF01865(1) CHF01866(1) CHF01867(1) 2.1 6 26 12
— CHF01868(1) CHF01869(1) CHF01870(1) CHF01871(1) 2.1 7.5 26 12
— CHF01872(1) CHF01873(1) CHF01874(1) CHF01875(1) 2.1 9 27 12
— — CHF01877(1) CHF01878(1) CHF01879(1) 2.2 12 34 15
— — CHF01881(1) CHF01882(1) CHF01883(1) 2.2 15 35 16
— — CHF01885(1) CHF01886(1) CHF01887(1) 2.3 18 43 20
3"—150 lb 3 elements — CHF01888(1) CHF01889(1) CHF01890(1) CHF01891(1) 3.1 6 52 24
— CHF01892(1) CHF01893(1) CHF01894(1) CHF01895(1) 3.1 9 53 24
— — CHF01896(1) CHF01897(1) CHF01898(1) 3.2 12 61 28
— — CHF01899(1) CHF01900(1) CHF01901(1) 3.2 15 67 30
— — CHF01902(1) CHF01903(1) CHF01904(1) 3.3 18 74 34
4"—150 lb 6 elements — CHF01905(2) CHF01906(1) CHF01907(1) CHF01908(1) 4.1 12 77 35
— CHF01909(2) CHF01910(1) CHF01911(1) CHF01912(1) 4.1 18 79 36
— CHF01913(2) CHF01914(2) CHF01915(2) CHF01916(1) 4.2 24 92 42
— — CHF01917(2) CHF01918(2) CHF01919(1) 4.2 30 94 43
— — CHF01920(2) CHF01921(2) CHF01922(1) 4.3 36 117 53
— — — — CHF01923(2) 4.3 50 121 55
— — — — CHF01924(2) 4.4 60 145 66
5"—150 lb 6 elements — CHF01925(2) CHF01926(2) CHF01927(2) CHF01928(1) 5.1 24 115 52
— — CHF01929(2) CHF01930(2) CHF01931(1) 5.1 30 117 53
— — CHF01932(2) CHF01933(2) CHF01934(1) 5.2 36 128 58
— — — — CHF01935(2) 5.3 50 167 76
— — — — CHF01936(2) 5.4 60 196 89
5"—150 lb 9 elements — — CHF01937(3) CHF01938(3) CHF01939(3) 5.1 36 120 54
— — CHF01940(3) CHF01941(3) CHF01942(3) 5.1 45 122 55
— — CHF01943(3) CHF01944(3) CHF01945(3) 5.2 54 134 61
— — — — CHF01946(3) 5.3 75 176 80
— — — — CHF01947(3) 5.4 90 197 89
6"—150 lb 12 elements — CHF01948(2) CHF01949(2) CHF01950(2) CHF01951(1) 6.1 24 125 57
— CHF01952(3) CHF01953(2) CHF01954(2) CHF01955(1) 6.1 36 129 59
— — CHF01956(4) CHF01957(3) CHF01958(2) 6.2 48 153 69
— — CHF01959(4) CHF01960(3) CHF01961(2) 6.2 60 157 71
— — CHF01962(4) — CHF01963(2) 6.3 72 196 89
— — — — CHF01964(2) 6.3 100 204 93
— — — — CHF01965(4) 6.4 120 246 112
6"—150 lb 15 elements — CHF01966(3) CHF01967(5) CHF01968(3) CHF01969(1) 6.1 30 128 58
— CHF01970(5) CHF01971(5) CHF01972(3) CHF01973(5) 6.1 45 133 60
— — CHF01974(5) CHF01975(3) CHF01976(5) 6.2 60 158 72
— — CHF01977(5) CHF01978(5) CHF01979(5) 6.2 75 163 74
— — CHF01980(5) — CHF01981(5) 6.3 90 202 92
— — — — CHF01982(5) 6.3 125 213 97
— — — — CHF01983(5) 6.4 150 257 117
8"—150 lb 18 elements — — CHF01984(3) CHF01985(3) CHF01986(2) 8.1 50 210 95
— — CHF01987(6) — CHF01988(2) 8.2 75 238 108
— — CHF01989(6) — CHF01990(3) 8.3 100 266 121
— — CHF01991(6) — CHF01992(6) 8.4 125 294 133
— — — — CHF01993(6) 8.5 150 326 148
— — — — CHF01994(6) 8.6 175 358 162
— — — — CHF01995(6) 8.7 200 391 177
Ordering Example: CHF01865, 6 KW, 240 Vac, 3 phase circulation heater.
(C*) = Number of Branch Circuits per heater
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
Nominal Pipe Size 1 1/4 NPT 2 elements
Nominal Pipe Size 3" 150 lbs Flange, 3 elements
CHF01892
Consult Sales
Lieferzeit:


240V-1Ph, 9 KW, 53 lbs
Nominal Pipe Size 6" 150 lbs Flange, 12 elements
CHF01948
Consult Sales
Lieferzeit:


240V-1Ph, 24 KW, 125 lbs
Nominal Pipe Size 8" 150 lbs Flange, 18 elements
CHF01995
Consult Sales
Lieferzeit:


480V-3Ph, 200 KW, 391 lbs

Bestellung nach Modellnummer

Artikelnummer
Stk
Artikelnummer
Stk


*Alle Preisangaben in Euro.
 Anmerkung: (C*) = Number of Branch Circuits per heater.
 Ordering Example: (1) CHF01859 120 volt, 3 KW, 14 lbs Nominal Pipe Size 1 1/4 NPT 2 elements, €1.095,00
