Portable Temperature Calibrators - Discontinued

CL526

Portable Temperature Calibrators

ZUR BESTELLTABELLE

NIST Traceable Standard
All Normalized IEC, DIN and JIS Thermocouples
IPTS68 and ITS90 Linearizations
RJ Internal or External with Direct Keyboard Selection
mA, mV, V (up to 10 V),Ohm
Thermoformed Metal-Click Tactile Polycarbonate Membrane Keyboard
60 Memory Stored Values for 7 Different Simulation Programs
Single Value, Multi-Step or Continuous Ramp/Cycle Simulation
Rechargeable Ni-H Batteries
Bidirectional Digital Interface
Report of Calibration Included
CE Marked

Beschreibung

PERFORMANCE

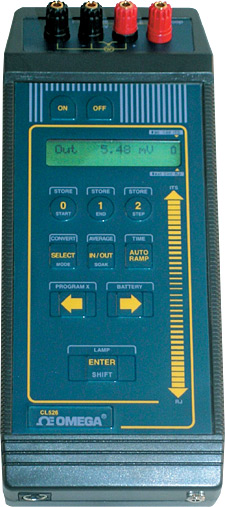

A highly accurate and powerful system for testing, measuring and calibrating built into a single compact portable instrument. The OMEGA™ CL526 indicator-simulator is a multifunction instrument designed to meet, in a modern and practical way, the needs of instrumentation engineers, both in laboratory and field work. Accurate, compact, rugged and easy to use, it is the ideal solution for measuring and simulating:
• Millivolts
• Volts
• Milliamperes
• Ohms
• Thermocouples
• Resistance Thermometers

The CL526 has been developed using the most advanced microprocessor technology to provide high accuracy on extended ranges and a powerful operating flexibility. The modular firmware includes the algorithms of thermocouples and resistance thermometers in accordance with IEC, DIN and Jis standards. IPTS68 and ITS90 linearization are memory stored and can be selected through the keyboard.

A unique internal automatic RJ compensation system allows the CL526 to provide accurate input and output readings in operating conditions with a temperature range of -5 to 50°C (23 to 122°F). Further, external compensation is available with temperature adjustable from -50 to 100°C (-58 to 212°F).

The selection of operating functions is made on a thermoformed polycarbonate membrane keyboard which assures up to one million operations per key. Two thick film membrane "slidewires" (patent pending) are used to set the simulated signal value. Measured or simulated values are indicated on a high quality LCD dot matrix display which provides good contrast even in poor lighting conditions. A menu-driven procedure allows for 7 different simulation programs of 60 memory-stored values, or for continuous or step ramp values.

The case, made of shock-resistant ABS, is ergonomically designed for easy practical use.The instrument is powered by four Ni-H rechargeable batteries; an external battery charger is supplied as a standard accessory.

Be sure to review Complete Product Specifications for the full features of this product!

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Accessories

*Alle Preisangaben in Euro.
Anmerkung: Each unit comes with: operator’s manual, test leads, batteries, battery charger, leather case with shoulder strap, NIST calibration report
