Free Chlorine Sensors

FCLTX Series

^€1.465,00 FCLTX-110

ZUR BESTELLTABELLE

Direct 4 to 20 mA Output
Amperometric Technology
500V Input to Output Isolation
Multiple Ranges Available
Simple Field Maintenance

Beschreibung

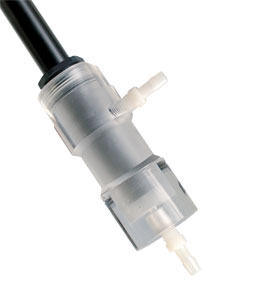

The FCLTX series free chlorine sensors feature amperometric measurement technology. They are designed for use in water treatment disinfection applications and for use with chlorine generators, pools, etc. The sensors are available in several ranges for detecting ppm levels of free chlorine. Choose the FCLTX-102 for 0 to 2 ppm, FCLTX-105 for 0 to 5 ppm or FCLTX-110 for 0 to 10 ppm of free chlorine. Membrane caps and fill solution are easily replaced to maximize sensor life. Sensors can be used in new installations with Omega flow cell or installed as replacement for other 4 to 20 mA output free chlorine (FCl) sensors.

SPECIFICATIONS
Measuring Range:
    FCLTX: 0 to 2, 0 to 5, or 0 to 10 ppm free chlorine
pH Range:
    FCLTX: 5.5 to 9
Cross Sensitivity:
         FCLTX: Bromine, ozone and ClO2 (chlorine dioxide)
Body Material: PVC
Temperature Range: 0 to 45°C (32 to 113°F)
Temperature Compensation: Integrated
Maximum Pressure: 1 Bar (14.7 psig)
Cable Length: 3 m (10') 2 conductors
Flow Cell Process Connection: 1.4 FNPT inlet and outlet
Output: 4 to 20 mA
Flow Range:
    Minimum: 45 l/hr (0.2 gpm)
    Maximum: 135 l/hr (0.6 gpm)
Supply Voltage: 12 to 24 Vdc, 250 mA min
Chemical Compatibility: Up to 50% ethanol/water, up to 50% glycerol/water

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

FCLTX-102

€1.387,00

Lieferzeit: 9 Wochen

Stk

Free chlorine sensor with 4 to 20 mA output, 0 to 2 ppm

FCLTX-105

€1.465,35

Lieferzeit: 9 Wochen

Stk

Free chlorine sensor with 4 to 20 mA output, 0 to 5 ppm

FCLTX-110

€1.465,00

Lieferzeit: 8 Wochen

Stk

Free chlorine sensor with 4 to 20 mA output, 0 to 10 ppm

Accessories

FC72

€436,60

Lieferzeit: 9 Wochen

Stk

Flow cell for FCL or CLD sensors

FCL-RM

€162,20

Lieferzeit: 8 Wochen

Stk

FCLTX replacement membranes

FCL-ES

€61,77

Lieferzeit: 1 Woche

Stk

FCLTX replacement electrolyte solution 30 mL (0.03 qt)

DPI32

€244,82

Lieferzeit: 7 Wochen

Stk

1/32 process indicator

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with instruction sheet.

Ordering Example: (1) DPI32 1/32 DIN panel indicator, €244,82 plus (1) FC72 Flow cell, €436,60 plus (1) FCLTX-105 Free Chlorine sensor with 4 to 20 mA output for 0 to 1 ppm, €1.465,35, €244,82 + 436,60 + 1.465,35 = €2.146,77
