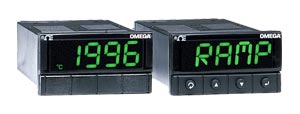

i-Series 1/32 DIN Programmable Strain/ Process Controllers and Meters with RS-232 & RS-485 Communications Featuring a Totally Programmable Color Display

CNiS32 & DPiS32 Series

1/32 DIN Programmable Strain/ Process Controllers and Meters | CNiS32 & DPiS32 Series

€319,26 DPiS32

ZUR BESTELLTABELLE
5 year warranty CE
  • High Quality
  • FREE 5-Year Warranty
  • High Accuracy 0.03% Rdg
  • User Friendly, Simple to Configure
  • Free Software, Active X Controls
  • Electronic Indicator and Controller Models Available
  • Peak and Gross Value Functions Accessable From the Front Panel
Instrumente für Druck und Kraft - Verwandte Produkte anzeigen

Beschreibung

*For our newest range of controllers with Modbus connectivity, expanded ramp and soak programs, universal inputs, and simple PC set-up, visit our Platinum Series.*

The iS32 series of meter/controllers can measure a wide variety of DC voltage and current outputs for all common load cells, pressure transducers, and most any strain gauge type of transducer. It is the first instrument of its kind, offering a wealth of powerful features and performance in an amazingly compact 1/32 DIN package. The iS32 handles input ranges of 0-100 mV, 0-1 V, 0-10 V, 0-20 mA (4-20 mA). The iS32 is easy to configure and scale to virtually any engineering units using the push buttons on the front panel, or using personal computer with the optional serial communications and free configuration software. The serial communications option includes both RS-232 and RS-485 on one instrument, and the straightforward OMEGA ASCII communications protocol. If Modbus is required, we recommend our latest Platinum controllers - CNPT Series.The iS32 includes built-in excitation for transducers, selectable as 10 V at 100 mA or 5 V at 60 mA. The iS32 features a choice of two optional outputs: Form C SPDT (single pole double throw) mechanical relays, solid state relays, DC pulse, and programmable analog output selectable for either a control function or retransmission of the process value. The iS32 features the iSeries totally programmable color display that can change colors between Green, Amber, and Red at any setpoint or alarm point.

SPECIFICATIONS
Input Ranges: 0-100 mV, 0-1 V, 0-10 V, 0-20 mA
Isolation: 354 V peak per IEC spacing
NMR: 60 dB
CMR: 120 dB
Input Impedance: 10 MOhms for 100 mV input, 1 MOhm for 1 or 10 V input, 5 Ohms for 20 mA current input
Display: 4 digits, 9 segments 10.2 mm (.4")
Analog-to-Digital technique: Dual slope
Internal A/D Resolution: 15 bits
Read rate: 3 / sec
Polarity: Automatic
Max Error Strain/Process: ±0.03% rdg.
Span tempco.: ± 50 ppm / C
Step response: 1-2 sec.
Warmup to rated accuracy: 30 min.
Analog Output (optional): 0-10 V, 4-20 mA, can be used as Retransmission or PID Control.
Excitation Voltage: 10 V @ 100 mA, 5 V @ 60 mA
(no excitation on models with "C24" or "DC" options)
Power: 90-240 Vac 50-400 Hz or 90-375 Vdc, 4 W (optional) 24 Vac 50-400 Hz or 12-36 Vdc, 5 W
Dimensions: 25.4 H x 48 W x 127 D mm (1.0 x 1.89 x 5.0")
Weight: 127 g (0.28 lb)
Approvals: CE per EN50081-1, EN50082-2, EN61010-1

For full product specifications view Specs pdf

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.
Stk
Beschreibung
Digital panel indicators

DPiS32
€319,26
Lieferzeit: 1 Woche

1/32 DIN i Series strain gauge meter with 90 - 240 Vac/dc power

DPiS32-DC
€356,46
Lieferzeit: 7 Wochen

1/32 DIN i Series strain gauge meter with 24 Vac or 12-36 Vdc power

DPiS32-C24
€424,08
Lieferzeit: 7 Wochen

1/32 DIN i Series strain gauge meter with RS-232 & RS-485 communications and 90 - 240 Vac/dc power

DPiS32-C24-DC
Consult Sales
Lieferzeit:


1/32 DIN i Series strain gauge meter with RS-232 & RS-485 communications and 24 Vac or 12-36 Vdc power
Indicators with Alarm and/or control outputs

CNIS3253
€404,10
Lieferzeit: 7 Wochen

1/32 DIN i Series strain gauge controller with one analogue output and one Form "C" mechanical relay. 90 - 240 Vac/dc power
Click to expand/minimize a list of what others bought with theCNiS3233
CNiS3233
€405,32
Lieferzeit: 7 Wochen

1/32 DIN i Series strain gauge controller with two Form "C" mechanical relays and 90 - 240 Vac/dc power

CNiS3222
€397,94
Lieferzeit: 7 Wochen

1/32 DIN i Series strain gauge controller with two solid state relays and 90 - 240 Vac/dc power

CNiS3222-C24
Consult Sales
Lieferzeit:


1/32 DIN i Series strain gauge controller with two solid state relays, RS-232 & RS-485 communications and 90 - 240 Vac/dc power

CNiS3222-C24-DC
Consult Sales
Lieferzeit:


1/32 DIN i Series strain gauge controller with two solid state relays, RS-232 & RS-485 communications and 24 Vac or 12-36 Vdc power

CNiS3233-C24
€508,48
Lieferzeit: 7 Wochen

1/32 DIN i Series strain gauge controller with two Form "C" mechanical relays, RS-232 & RS-485 communications and 90 - 240 Vac/dc power

CNiS3233-C24-DC
Consult Sales
Lieferzeit:


1/32 DIN i Series strain gauge controller with two Form "C" mechanical relays, RS-232 & RS-485 communications and 24 Vac or 12-36 Vdc power
*Alle Preisangaben in Euro.
 Anmerkung: Transducer excitation not available on models with serial communications ("-C24") option.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen
Optionsbeschreibungen:


(1) Control Outputs #1 Wählen Sie:
2 für Solid State Relay/1 A at 120/240 Vac continuous
3 für SPDT Relay
4 für Pulsed 10 Vdc at 20 mA
5 für Analogue Output 0 to 10 Vdc or 4-20 mA

(2) Control Outputs #2 Wählen Sie:
2 für Solid State Relay/1 A at 120/240 Vac continuous
3 für Relay SPDT 3A at 120/3 A at 240 Vac
4 für Pulsed Driver 10 Vdc at 20 mA /for use with external SSR

(3) Serial Communications Wählen Sie:
Keine (Feld leer lassen) für Standard Unit
-C24 für Isolated RS-232 and RS-485 300 to 19.2 k baud

(4) Power Supply Wählen Sie:
Keine (Feld leer lassen) für Standard Power (90 to 240 Vac/dc @ 50 to 400 Hz)
-DC für Low Voltage Power (24 Vac or 12 to 36 Vdc)
Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
