Discontinued - Chart Recorder, Temperature, Humidity, Dewpoint, AC Power with 48 Hr. Back-Up

CTH89 Series

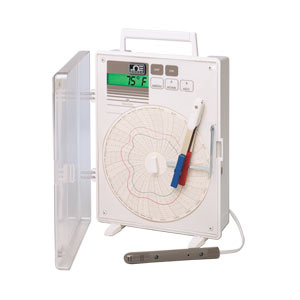

Circular Chart Recorder for Temperature and Humidity

ZUR BESTELLTABELLE

Chart number displayed when time and temperature ranges are selected
Selectable single or continuous chart rotation
Fold away carrying handle
Snap-on extra support legs

Beschreibung

SPECIFICATIONS
With Combined 18 Speed and Temperature Ranges and 4.5 m (15') Remote Probe, 115 Vac with 48-Hour Battery Back-Up
Primary Power: 115 Vac, 50/60 Hz, 3.5 W max (220 to 240 Vac, 50/60 Hz optional)
Backup Power: 8 "AA" alkaline batteries (included) for 48 hours continuous operation
Temperature Accuracy: ±1°C (±2°F)
Relative Humidity Range: 0 to 100% (non-condensing)
Relative Humidity Accuracy: ±3%
Dewpoint Range: 0 to 50°C (32 to 120°F)
Dewpoint Accuracy: ±1°C (±2°F)
Probe: Combined temperature/ humidity with 4.5 m (15') cable (consult sales for longer cable, 7.6 m (25') max)
Chart: 152 mm (6") circular chart (supplied with 60 assorted charts)
Chart Rotation Speeds:User selectable: 7-day, 24-hr, 12-hr, 6-hr, 3-hr, and 1.5-hr
Chart Rotation: User selectable continuous or single turn
Chart Speed Accuracy: Better than 1%
Display: Alphanumeric backlit LCD, 16 characters x 2 lines
Temperature Alarm Range: -30 to 50°C (-20 to 120°F)
Relative Humidity Alarm Range: 0 to 100% RH
Alarm Delay Range: User selectable, no delay, 10-min, 30-min, 1-hr, and 2-hrs
Remote Alarm Connection: Normally open contacts 48 Vac/Vdc, 0.1 A resistive load
Mounting: Vertical or horizontal free standing or wall mount
Dimensions: 23.5 x 18.4 x 7.0 cm (9¼ x 7¼ x 2¾")
Operating Ambient Temp. Range: 0 to 49°C (32 to 120°F)
Weight: 20.1 kg (4 lb, 7 oz)

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

CTH89-Pen-Blue

€28,35

Lieferzeit: 1 Woche

Replacement Blue Pen (Humidity)(shelf life is one year)

CTH89C-MIX

€78,39

Lieferzeit: 9 Wochen

Mix Box of Assorted Charts (5 of each range)

*Alle Preisangaben in Euro.
