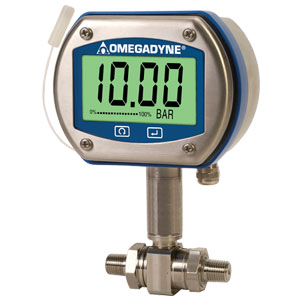

Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.08% BSL
Storage Temperature: -40 to 82°C
Operating Temperature: -18 to 66°C
Thermal Effects (Over Operating Range):
Zero Balance:
Ranges 25 mb to 70 mb: ±1% span
Ranges >70 mb: ±0.5% span
Span Setting:
Ranges 25 mb to 70 mb: ±1% span
Ranges >70 mb: ±0.5% span
Minimum Resistance Between Transducer Body and Any Wire: 100MΩ @ 50 Vdc
Pressure Cycles: 1 million minimum
Long Term Stability (1-yr.): ±0.1% FS typical
Analogue Output: User selectable 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA (external 24 Vdc power supply required).
Set jumper to Select Current or Voltage: Software selection of 0 to 5 Vdc, 0 to 10 Vdc, or 4 to 20 mA
Bidirectional ranges have a unidirectional analogue output equal to their full span; i.e. -15 to +15 psi = 0 to 10 Vdc.
Analogue output is independently scalable
Analogue Output Cable: 2.7 m with ferrite core (included)
Analogue Output Accuracy: 0.08% typical (0.15% maximum in RF field @ 10V/m)
Line/Static Pressure: 500 psi maximum applied to both sides simultaneously
Proof Pressure (differential):
25 mb: = 10 times range
70 mb: = 6 times range
170 mb to 50 Bar: = 4 times range
Hi-Side Containment Pressure (Differential):
25 to 350 mb: To 1000 psi
1 to 50 bar: To 3000 psi
Display: 4-digit LCD with user Selectable backlighting, (9999 count) 25 mm character height
Sample/Display Range: User selectable from 0.38 to 30 seconds (preset to 1/second)
Computer Interface: USB connection for set-up, cable included
Pressure Connection: G ¼ male
Power: One 3.6V lithium 8.4 Ah capacity (C cell) included (two included with wireless option) (replacement battery model no. BATT-C-3V)
Battery Life (Typical): Up to 4-years
|
Enclosure Material: 316 Stainless Steel and ABS centre gasket
Enclosure Finish: Electropolished
Enclosure Environmental Rating: Weatherproof, IP65
Sensor Wetted Parts: 316L stainless steel
Dimensions:
Display: 115 D x 89 W x 74 mm H
Sensor: 72 to 89 mm L below display, 80 mm wide
Weight: 1 kg typical depending upon configuration
Front Panel Functions:
Backlight: Manually turns backlight on/off
Min/Max: Recalls min/max values
Zero/Clear: Zeros display or clears min/max
Software Settings (via USB)
Update Rate: 4 options, 10, 5, 2, 1 times per second
Units: psi, inHg, inH2O, bar, mbar
Lock: Allows the lock-out of front panel functions
Alarms: User selectable “High” and “Low” alarm limits (open collector)
Backlight: On/Off, 10 seconds, 30 seconds, 1 minute, 5 minute
Wireless Transmitter (Optional): Channel number, transmission rate, alarms, sensor offset, chart recording, data logging
Calibrate: Zero and Span
Overrange Indication: “_ _ _ _”
|
