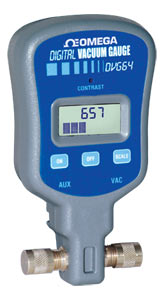

Discontinued - Digital Vacuum pressure Gauge

DVG-64

Digital Vacuum pressure Gauge in stock - order online | DVG-64

Digital Vacuum pressure Gauge in stock - order online

270,55 DVG-64

  • Digital vacuum pressure gauge to Read Vacuum in 7 Units of Measure
  • Auto Shut-off
  • Built in Hanger
  • Cleanable Sensor

Beschreibung

The The digital vacuum pressure gauge of the DVG-64 series delivers high precision at a low price. It can accurately read vacuum from 12,000 microns down to 0vacuum digital gauge of the OMEGA DVG-64 series delivers high precision at a low price. It can accurately read vacuum from 12,000 microns down to 0 (perfect vacuum) over a wide Temperature range of 2° to 52°C (35° to 125°F). The vacuum can be displayed in user selectable units.

SPECIFICATIONS
Display: Updated every 1/2 second. 1 micron resolution below 200 microns
Sensor Type: Thermistor
Connector Type: Standard 1/4 inch flare fitting
Vacuum Range: Perfect vacuum 0 microns up to 12,000 microns (1013mb to 997mb vacuum) (0-1600 Pascals) with vacuum increasing/decreasing indicator when above 12,000 microns
Scale: Microns, PSI, InHg, millibars, Pascals, Torr, millitorr
Operating Temperature Range: 2°C to 52°C (35°F to 125°F)
Overpressure: 20 Bar max. (300 PSI)
Accuracy: +/- 10% (0-1000 Microns)
Power Source: 9 Volt Alkaline Battery (included)
Continuous Usage: Over 35 Hours
Auto Shutoff: After 10 minutes when vacuum reading is above 12,000 microns
Weight: 190 g (6.7 ounces)
Dimensions: 140 x 76 x 32 mm (5.5" H x 3" W x 1.25" D)
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
DVG-64
Consult Sales
Lieferzeit:


Digital vacuum pressure gauge Range: 0 to 12,000 microns
*Alle Preisangaben in Euro.
Anmerkung: This unit is scaled to read from absolute or perfect vacuum. 0 microns = 1013mb Vac. 12000 microns = 997mb Vac.
Ordering Example: (1) DVG-64 Digital vacuum gauge Range: 0 to 12,000 microns, €270,55
