Excelon® General Purpose Air Line Filters for Partical and Water Removal in Compressed Air Systems  - Discontinued

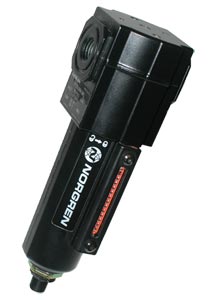

F72G Series General Purpose Compressed Air Filters

Airline Filters | F72G Series General Purpose Compressed Air Filters

Airline Filters

€89,70 F72G-2AN-AE3

ZUR BESTELLTABELLE
  • In-Line or Modular Installation
  • High Efficiency Air Filters for Water and Particle Removal
  • Quick Release Bayonet Bowl
  • Highly Visible, Prismatic Liquid Level Indicator Lens on Metal Bowls
  • Optional Service Indicator Turns from Green to Red When the Filter Element Needs to be Replaced
  • Optional Electrical Service Indicator Also Available
  • Modular Installations with Excelon 72, 73 and 74 Series can be Made to Suit Particular Applications

Beschreibung

The F72G series has been discontinued. Please contact our Flow Engineering department for a viable replacement.


The F72G Series General Purpose Air Line Filters units are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air preparation supply system. As a modular FRL component, this air filter can quickly be attached to regulators, oilers, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.

The F72G series genaral purpose air line filters are high efficient water and partical air filters for compressed air systems. The highly visable liquid level indicators make it easy to detect water removal and the 40 µm filter element is adequate for most pneumatic application.
As a modular pneumatic component, this regulator can quickly be attached to filters, oilers, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.

SPECIFICATIONS

Fluid: Compressed Air
Operating Pressure:
    Transparent Bowl: 10 bar(150 psig)
    Metal Bowl: 17 bar(250 psig)
Operating Temperature*:
    Transparent Bowl:-34 to 50°C (-30 to 125°F)
    Metal Bowl: -34 to 65°C(-30 to 150°F)

F72G MATERIALS
Body: Zinc
Transparent Bowl: Polycarbonate
Guard for Transparent Bowl: Zinc
Metal Bowl Liquid
Level Indicator Lens: Transparent nylon
Element: Sintered polypropylene
Elastomers: Neoprene and nitrile

F73G AND F74G MATERIALS
Body: Aluminum
Transparent Bowl: Polycarbonate
Transparent with Guard: Polycarbonate, steel guard
Metal Bowl: Aluminum
Metal Bowl Liquid Level
Indicator Lens: Transparent nylon
Element: Sintered polypropylene
* Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F)
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
General Purpose Air Line Filter Models with Automatic drain
F72G-2AN-AE1
Consult Sales
Lieferzeit:


General Purpose 5 µm Air Filter with ¼' Port
F72G-2AN-AE3
€89,70
Lieferzeit: 1 Woche

General Purpose 40 µm Air Filter with ¼' Port
F73G-3AN-AD1
Consult Sales
Lieferzeit:


General Purpose 5 µm Air Filter with 3⁄8' Port
F73G-3AN-AD3
Consult Sales
Lieferzeit:


General Purpose 40 µm Air Filter with 3⁄8' Port
F73G-4AN-AD1
Consult Sales
Lieferzeit:


General Purpose 5 µm Air Filter with ½' Port
F73G-4AN-AD3
Consult Sales
Lieferzeit:


General Purpose 40 µm Air Filter with ½' Port
F74G-4AN-AD1
Consult Sales
Lieferzeit:


General Purpose 5 µm Air Filter with ½' Port
F74G-4AN-AD3
Consult Sales
Lieferzeit:


General Purpose 40 µm Air Filter with ½' Port
F74G-6AN-AD1
Consult Sales
Lieferzeit:


General Purpose 5 µm Air Filter with ¾' Port
F74G-6AN-AD3
€149,10
Lieferzeit: 1 Woche

General Purpose 40 µm Air Filter with ¾' Port
Models with Manual Drain
F72G-2AN-QE1
Consult Sales
Lieferzeit:


General Purpose 5 µm Air Filter with ¼' Port
F72G-2AN-QE3
Consult Sales
Lieferzeit:


General Purpose 40 µm Air Filter with ¼' Port
F73G-3AN-QD1
Consult Sales
Lieferzeit:


General Purpose 5 µm Air Filter with 3⁄8' Port
F73G-3AN-QD3
Consult Sales
Lieferzeit:


General Purpose 40 µm Air Filter with 3⁄8' Port
F73G-4AN-QD1
Consult Sales
Lieferzeit:


General Purpose 5 µm Air Filter with 3⁄8' Port
F73G-4AN-QD3
Consult Sales
Lieferzeit:


General Purpose 40 µm Air Filter with 3⁄8' Port
F74G-4AN-QD1
€107,49
Lieferzeit: 1 Woche

General Purpose 5 µm Air Filter with ½' Port
F74G-4AN-QD3
Consult Sales
Lieferzeit:


General Purpose 40 µm Air Filter with ½' Port
F74G-6AN-QD3
Consult Sales
Lieferzeit:


General Purpose 40 µm Air Filter with ¾' Port
Service Life Indicator
OM-AIR-5797-50
Consult Sales
Lieferzeit:


Indicator truns from green to red when element needs to be replaced, for all models
Replacement Filter Elements
OM-AIR-4338-05
€13,89
Lieferzeit: 1 Woche

F74G Replacement filter element, 40 µm
OM-AIR-4338-04
Consult Sales
Lieferzeit:


F74G Replacement filter element, 5 µm
OM-AIR-4438-03
Consult Sales
Lieferzeit:


F73G Replacement filter element, 40 µm
OM-AIR-4438-01
Consult Sales
Lieferzeit:


F73G Replacement filter element, 5 µm
OM-AIR-5925-03
Consult Sales
Lieferzeit:


F72G Replacement filter element, 5 µm
OM-AIR-5925-02
Consult Sales
Lieferzeit:


F72G Replacement filter element,40 µm
Wall Mounting Brackets
OM-AIR-4224-50
Consult Sales
Lieferzeit:


For L72G models
OM-AIR-4424-50
Consult Sales
Lieferzeit:


For L73G models
OM-AIR-4324-50
Consult Sales
Lieferzeit:


For L74G models
Quickclamps
OM-AIR-4214-51
€12,71
Lieferzeit: 1 Woche

Quickclamps for F72G models
OM-AIR-4314-51
€13,89
Lieferzeit: 1 Woche

Quickclamps for F73G & F74G models
Quickclamp Wall Brackets
OM-AIR-4214-52
€16,31
Lieferzeit: 1 Woche

Quickclamp wall bracket for F72G models
OM-AIR-4314-52
Consult Sales
Lieferzeit:


Quickclamp wall bracket for F73G,& F74G models
Pipe Adapters
OM-AIR-4215-02
€16,87
Lieferzeit: 1 Woche

¼' NPT for F72G models
OM-AIR-4215-03
Consult Sales
Lieferzeit:


⅜' NPT for F72G models
OM-AIR-4315-01
Consult Sales
Lieferzeit:


¼' NPT for F73G & F74G models
OM-AIR-4315-02
Consult Sales
Lieferzeit:


⅜' NPT for F73C & F74G models
OM-AIR-4315-03
€17,47
Lieferzeit: 1 Woche

½' NPT for F73G & F74G models
OM-AIR-4315-04
€18,69
Lieferzeit: 1 Woche

¾' NPT for F73G & F74G model
*Alle Preisangaben in Euro.
 Anmerkung: Models listed include PTF threads, automatic drain, metal bowl with liquid level indicator and a 40 µm element.
Typical flow with a 40 µm element at 6.3 bar (90 psig) inlet pressure and 0.35 bar (5 psig) pressure drop.
 Ordering Example: (1) F72G-2AN-AE3 General purpose filter with ¼'' port, metal bowl with liquid level sensor, PTF threads, 40 µm element, €89,70
