Economical Sensor-powered Flow Indicators

FPM-5800 -SCALED-(**)

ZUR BESTELLTABELLE

Sensor Powered
Economical Flow Monitoring
Front Panel Calibration
Splash-Proof,
Shatter-Resistant Acrylic Front Panel

Instrumente und Zubehör - Verwandte Produkte anzeigen

Beschreibung

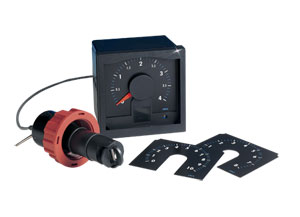

Combining the FPM-5800 self-powered flowmeter with an FP-5300 or FP-5100 flow sensor and a matching sensor-installation fitting produces an affordable, completely self-contained flow monitoring system. The unit requires no external power or battery, so the user can mount it virtually anywhere. System hookup is simple, requiring only 3 flow-sensor wires connected to the terminal strip. Easy-to-install reversible dials give the scale of flow units appropriate for the user’s installation.

SPECIFICATIONS
Compatible Sensors: FP-5300 and FP-5100 Series flow sensors
Minimum Full Scale Range: 7 fps
Accuracy: ±2% FS
Repeatability: ±1% FS
Operating Temperature: -10 to 65°C (14 to 149°F)
Display:
Type: Taut-band suspension meter movement, 250° deflection; not suitable for prolonged exposure to vibration
Dials: Reversible dial kit included (0 to 2, 0 to 4, 0 to 6, 0 to 8, 0 to 10, 0 to 100)
Electrical Power: None required
Dimensions: 97 L x 97 W x 76 mm D (3.8 x 3.8 x 3.0")

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

FPM-5800

Consult Sales

Lieferzeit:

**Unscaled unit only**

FPM-5800-SCALED-[XX]

Consult Sales

Lieferzeit:

Sensor powered flow indicator with reversible dial face kits (0-2, 0-4, 0-6, 0-8, 0-10 and 0-100)

*Alle Preisangaben in Euro.
Anmerkung: (XX)-insert flowrate range in gpm. For ordering through the web site, add the FPM-5800-SCALED-(XX) to your shopping cart. During the check out process you will be prompted for Special Instructions. Enter the desired flow rate as a Special Instruction or call our Flow Engineering if you have any questions.
Comes with complete product manual.
