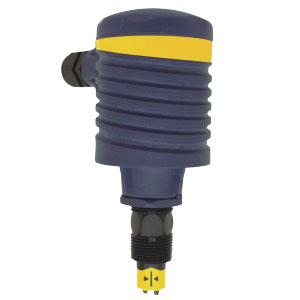

Flow Switch With Compact Relay Controller

FST-200-R and FST-300-R

^€698,08 FST-211-R

ZUR BESTELLTABELLE

Offered in Liquid and Gas Configurations
All-Plastic Construction with PP or PVDF Materials for Corrosive Environments
Invert Switch Provides Simple NO or NC Relay Operation
LED Indicators for Fluid, Relay and Power Status
0-60 Second Time Delay Dampens Out Relay Chatter
Fail-Safe Controller Provides Direct Actuation of Pumps, Valves and Blowers

Blendendurchflussmesser und Schalter - Verwandte Produkte anzeigen

Beschreibung

This switch package offers a complete solution for flow or no-flow switching in pipes or ducting up to 0.3 m (12"). The compact relay controller reliably actuates valves, pumps, or blowers rated up to 1/2 hp. Common applications include low-flow pump or process protection. To complete the instrumentation package, simply select the switch configuration in accordance with the liquid or gas used in your application.

L I Q U I D	Variable	Yes
	Clean	Y
	Slurry	Y
	Bubbles	—
	Coating	—
	Non-Coating	Y
	Low Viscosity	Y
	Med. Viscosity	Y
	High Viscosity	—
	Low Temperature	Y
	Med. Temperature	—
	High Temperature	—
	Δ Temperature	Y
	Low Velocity	Y
	High Velocity	—

G A S	Variable	Yes
	Coating	—
	Non-Coating	Y
	Low Temperature	Y
	Med. Temperature	Y
	High Temperature	—
	Δ Temperature	—
	Low Velocity	Y
	High Velocity	—

SPECIFICATIONS
RELAY CONTROLLER
Supply Voltage: 120/240 Vac 50/60 Hz
Consumption: 0.25 A
Relay Type: (1) SPDT
Relay Current: 10 A, 250 Vac, 1/2 hp
Relay Mode: NO or NC selectable
Time Delay: 0 to 60 s
Temp Range: -40 to 70°C (-40 to 158°F)
Enclosure Rating: NEMA 4X (IP66)
Enclosure Material: Polypropylene (UL 94VO)
Enclosure Rotation: 300° swivel base
Conduit Connection: 1/2 NPT
SENSOR
Range: 0.04 to 3 ft/s (liquids)
Accuracy: ±5% of setpoint at constant temperature and flow rate
Response Time: 10 s (approx.)
Setpoint Drift with Fluid Temperature: 0.5%/°C
Fluid Temperature: 60°C (140°F)
Max Fluid Pressure:
PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.7 psi/°C above 25°C (77°F)
Process Connection: 3/4 MNPT
Dimensions: 208 L x 71 mm Dia (8.2 x 2.8")

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Liquid Flow Switches

Gas Flow Switches

Flow Switch Fittings for 3" Liquid Sensors (1/8 to 1/2" pipe and tubing)

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with operator's manual.

Ordering Example: (1) FST-211-R Polypropylene liquid flow switch with relay, €698,08

Zugehörige Dokumentation:

Download FST-200 and FST-300 Series - Thermal Dispersion Flow Switch

Download FLCN-101 & FLCN-111 Series - Compact Relay Controller
