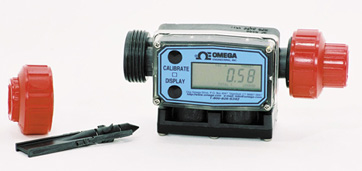

PVDF TURBINE METER

FTB890 Series

PVDF TURBINE METER

^€929,69 FTB891

ZUR BESTELLTABELLE

Both Rate and Total Indication
Field Replaceable Internal Part
Battery Operated– Battery Included
For Use with Many Aggressive Chemicals
Display Models Have Selectable units of Litres, U.S Gallons or 15 point user curve

Turbinen- und Flügelrad-Durchflussmesser - Verwandte Produkte anzeigen

Beschreibung

More information about how a Flow meter works in this link.

OMEGA’s Industrial Meter Turbines are identified by the internal diameter of the inlet and outlet. Model FTB891: 1/2 inch Model FTB892: 1 inch Each turbine is designed to work with onboard computer electronics and/or with one of several accessory modules that can interface to a wide variety of reporting and collecting devices. Liquid flows through the turbine housing causing an internal rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. The electrical signal provides the output necessary to operate the on-board computer electronics for local indication directly on the turbine or one of several accessory modules that transmit the signal to external equipment. Make sure the turbine model meets your specific needs. Refer to the Specifications Section and confirm the following: 1.The flow rate is within the limits of your model. 2.The liquid is compatible with the turbine’s wetted components. 3.The system’s pressure does not exceed the turbine’s maximum pressure rating.

Please download PDF file below for full product specifications

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

FTB891

€929,69

Lieferzeit: 1 Woche

1/2"FNPT, 4.5-45.4 LPM; 1.2-12 USGPM

Field Installable Accessories

FLSC790-MA

€518,92

Lieferzeit: 1 Woche

4-20 mA dc output module

FLSC790-P

Consult Sales

Lieferzeit:

† Pulse output module (open collector output)

FLSC790-P-DC

Consult Sales

Lieferzeit:

External power module for FLSC790-P (9-30 Vdc)

FTB790-RK

Consult Sales

Lieferzeit:

Remote display kit module

FLSC790-P-ND

Consult Sales

Lieferzeit:

† Pulse output for models without displays (“-ND” suffix) open collector output

FLSC790-BATT

Consult Sales

Lieferzeit:

Replacement batteries

*Alle Preisangaben in Euro.
Anmerkung: **Requires Signal Output Module “- FLSC790-P-ND”, ordered separately
†Customer supplied pull-up resistor required, 820 ohm (min)

Zugehörige Dokumentation:

Download FTB890 Series - Industrial Grade PVDF and PVC Turbine Housing

Download FTB790 - FTB790 Series Turbine, Totalizer, Rate Meter
