Fluoropolymer Covered Immersion Heaters

GTF and GTFL Series

^€1.290,21 GTF-11

ZUR BESTELLTABELLE

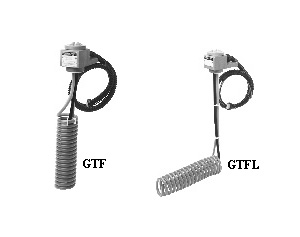

GTF -- Side Mount
GTFL -- L-Shaped
Fluoropolymer Covered Stainless Steel Elements
10 W/In2
1- 6 kW
120, 240 and 480 Volt, Single Phase
Moisture Resistant Terminal Enclosure

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

Click on this link if you need more information about a Immersion Heater or general information about industrial heater elements.

FEATURES
• Moisture Resistant Terminal Enclosure
• Side Mounted Vertical Construction with Mounting Bracket (GTF Only)
• Side Mounted Horizontal Heater L-Shaped (GTFL Only)
• Overtemperature Protection One Time Use Thermal Fuse (260°F), Field Replaceable
• Polypropylene Guard, Order Separately • Optional Riser Heights Available (GTFL Only)

Fluoropolymer	kW	Volts	W/In2	Phase	DIM (In.)		(Lbs.)	Guard Part No.
Model No.	kW	Volts	W/In2	Phase	A	B	(Lbs.)	Guard Part No.
GTF — Side Mount
GTF-11 GTF-12	1 1	120 240	10 10	1 1	11 11	6 6	7 7	GTF-1G
GTF-22 GTF-24	2 2	240 480	10 10	1 1	17 17	10 10	8 8	GTF-2G
GTF-32 GTF-34	3 3	240 480	10 10	1 1	23 23	14 14	13 13	GTF-3G
GTF-42 GTF-44	4 4	240 480	10 10	1 1	29 29	18 18	15 15	GTF-4G
GTF-52 GTF-54	5 5	240 480	10 10	1 1	35 35	23 23	18 18	GTF-5G
GTF-62 GTF-64	6 6	240 480	10 10	1 1	40 40	27 27	21 21	GTF-6G
GTFL — L-Shaped
GTFL-11 GTFL-12	1 1	120 240	10 10	1 1	12 12	9 9	8 8	GTFL-1G
GTFL-22 GTFL-24	2 2	240 480	10 10	1 1	18 18	13 13	9 9	GTFL-2G
GTFL-32 GTFL-34	3 3	240 480	10 10	1 1	18 18	17 17	13 13	GTFL-3G
GTFL-42 GTFL-44	4 4	240 480	10 10	1 1	18 18	21 21	16 16	GTFL-4G
GTFL-52 GTFL-54	5 5	240 480	10 10	1 1	18 18	25 25	18 18	GTFL-5G
GTFL-64 GTFL-64	6 6	240 480	10 10	1 1	18 18	29 29	21 21	GTFL-6G

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

GTF --- Side Mount

GTF-11

€1.290,21

Lieferzeit: 7 Wochen

120 V, 1 kW, Side Mount Immersion Heater

GTF-22

€1.708,00

Lieferzeit: 7 Wochen

240 V, 2 kW, Side Mount Immersion Heater

GTF-24

€1.708,00

Lieferzeit: 7 Wochen

480 V, 2 kW, Side Mount Immersion Heater

GTF-44

€3.394,00

Lieferzeit: 7 Wochen

480 V, 4 kW, Side Mount Immersion Heater

GTFL -- L-Shaped

GTFL-22

Consult Sales

Lieferzeit:

240 V, 2 kW, L-Shaped Immersion Heater,

Guard

GTFL-3G

€376,89

Lieferzeit: 7 Wochen

Heater Guard

*Alle Preisangaben in Euro.
Anmerkung: Guard (not shown). Order separately by PN. Guard adds approximately 1/2' to overall heater dimensions.
