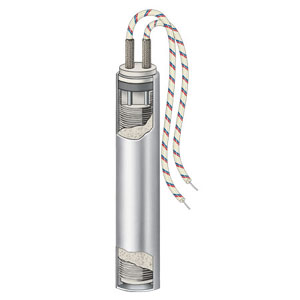

1/8", 5/16" and 1" Diameter Hi-Density electric Cartridge Heaters

HDC19100

HDC19100 SERIES 1/8

€55,78 HDC19100

ZUR BESTELLTABELLE
  • Hi-Density Cartridge Heaters Provide Maximum Processing Temperature Capability
  • Higher watt densities permit smaller heaters to be used without sacrificing life expectancy. This results in up-front as well as long-term cost savings.
  • Swaged construction provides maximum support for the resistance wire and excellent heat transfer characteristics, improving the overall life expectancy of the cartridge heater.
  • Termination styles and special features allow customization to any application.
  • Applications up to 760°C (1400°F)
Heizkartuschen - Verwandte Produkte anzeigen

Beschreibung

Click on this link if you need more information about Cartridge Heaters.

Hi-Density Cartridge Heaters are Classified in Two Distinct Categories Multi-Purpose Use The multi-purpose use cartridge heaters represent OMEGA’s commitment to value-added customer service as we maintain in stock over 65,000 semi-finished hi-density cartridge heater substrates, offering a combination of over 1000 sizes in industry standard diameters and lengths ranging from 25.4 mm (1") to 914.4 mm (36") in a complete spectrum of wattages and operating voltages. Multi-purpose use cartridge heaters are the solution for a multitude of original equipment manufacturers (OEMs) or maintenance (MRO) applications. Highly Engineered Specific Purpose Use OMEGA has been at the forefront of addressing the challenges of Original Equipment Manufacturers (OEMs) in a broad segment of diversified industries. As a company we are uniquely qualified and committed to providing value added expertise in engineering and manufacturing capabilities assisting customers in developing highly engineered specific use cartridge heaters for dependable and reliable performance. Let us provide the optimal solution to your thermal loop system and cartridge heater design challenges.

1⁄8" Diameter, Actual 3.10 mm (0.122") with Type N Termination 254 mm (10") Leads
Model Number Sheath Length Watts Watt Density
120V 240V mm inch Watts/cm2 Watts/in2
HDC19100 — 31.8 11⁄4 25 14 90
HDC19101 — 31.8 11⁄4 35 20 126
HDC19102 — 31.8 11⁄4 50 28 180
HDC19103 — 38.1 11⁄2 30 12 80
HDC19104 — 38.1 11⁄2 60 25 160
HDC19105 — 50.8 2 40 11 70
HDC19106 HDC19112 50.8 2 50 13 87
HDC19107 HDC19113 50.8 2 100 27 175
HDC19108 — 63.5 21⁄2 50 11 68
HDC19109 — 76.2 3 60 10 64
HDC19110 — 88.9 31⁄2 70 10 62
HDC19111 HDC19114 101.6 4 80 9 60
Note: 3.18 mm (1⁄8") diameter hi-density cartridge heaters are made-to-order only. Standard lead time is 3 weeks.
1" Diameter, Actual 25.30 mm (0.996") with Type N Termination 254 mm (10") Leads
Model Number Sheath Length Watts Watt Density
120V 240V mm inch Watts/cm2 Watts/in2
— HDC02662 76.2 3 750 16 101
— HDC02663 88.9 31⁄2 565 10 63
— HDC02664 127 5 1000 11 73
HDC02665 HDC02666 200 77⁄8 500 3 22
— HDC02667 203.2 8 1500 10 65
— HDC02668 222.3 83⁄4 875 5 34
HDC02669 — 292.1 111⁄2 1000 5 29
HDC02670 — 330.2 13 1000 4 26
— HDC02671 355.6 14 2700 10 64
HDC02672 — 381 15 1000 3 22
— HDC02673 406.4 16 1800 6 37
— HDC02674 441.3 173⁄8 2400 7 46
— HDC02675 508 20 1000 3 16
— HDC02676 508 20 2800 7 46
HDC02677 HDC02678 635 25 1725 3 23
— HDC02679 1016 40 4400 6 36
— HDC02680 1244.6 49 3725 4 25
— HDC02681 1282.7 501⁄2 945 1 6
— HDC02682 1447.8 57 2800 3 16
— HDC02683 1524 60 1500 1 8
Note: 25 mm (1") diameter hi-density cartridge heaters are made-to-order only. Standard lead time is 3 weeks.
5⁄16" Diameter, Actual 7.82 mm (0.308") with Type N Termination 254 mm (10") Leads
Part numbers listed are for cartridge heaters terminated with 254 mm (10") long leads (Type N termination).
Other terminator program terminations and options can also be applied to heaters (see ordering information).
Model Number Sheath Length Watts Watt Density
120V 240V mm inch Watts/cm2 Watts/in2
HDC00108 — 50.8 2 150 16 102
HDC00109 — 63.5 21⁄2 150 12 76
HDC00110 HDC00111 63.5 21⁄2 200 16 102
HDC00112 HDC00113 76.2 3 225 14 92
HDC00114 — 85.7 33⁄8 160 9 57
HDC00115 — 88.9 31⁄2 250 13 85
HDC00117 HDC00118 101.6 4 275 12 80
HDC00119 HDC00120 127 5 350 12 79
HDC00121 — 139.7 51⁄2 250 8 51
HDC00122 HDC00123 152.4 6 450 13 83
— HDC00124 190.5 71⁄2 600 14 87
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
HDC02670
Consult Sales
Lieferzeit:


1 inch diameter 120 volt, 1000 watts, 13 inches long
HDC02666
Consult Sales
Lieferzeit:


1 inch diameter 240 volt, 500 watts, 7 7/8 inches long

Bestellung nach Modellnummer

Artikelnummer
Stk
Artikelnummer
Stk


*Alle Preisangaben in Euro.
 Anmerkung: Ordering Information Order by Model number for stock cartridge heaters with Type N termination. Call OMEGA for model numbers for heaters with other terminator program terminations and options. Custom Engineered/Manufactured Cartridge heaters can be application specific; therefore for sizes, electrical ratings, terminations and any other design features not listed here OMEGA will custom manufacture to your specifications. Consult us with your requirements.
