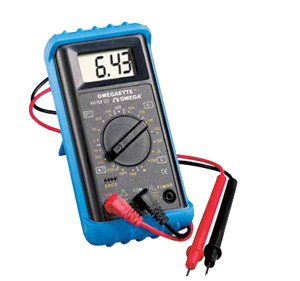

Multimeter OMEGAETTE® - Low Cost High Performance Multimeter

HHM90 Series

Portable high performance low cost Multimeter

ZUR BESTELLTABELLE

Large 3 1 /2 or 3 3 /4 Display
AC/DC Current
Resistance Measurement
Capacitance Measurement
Continuity Check Feature

Allgemeine Prüf- und Messgeräte - Verwandte Produkte anzeigen

Beschreibung

This a portable high performance low cost OMEGAETTE® Multimeter. Its specification range includes different models: while the HHM93 model is a multimiter/transistor test, the HHM97 and the HHM97EL models also feature a bargraph. A backlit display is also included in the HHM97EL model. All items provide accurate resistance and capacitance measurement.

Specifications

Model Number		HHM93	HHM93B	HHM95	HHM97	HHM97EL
DC Voltage	Accuracy	± (0.5% rdg + 2 dgts)			± (1.0% rdg + 2 dgts)
	Ranges	2/20/200/600 V			320m/3.2/32/320/600 V
AC Voltage	Accuracy	±(1.5% rdg + 5 dgts)			±( 2.5% rdg + 5 dgts)
	Ranges	200/600 V		20/200/600 V	3.2/32/320/600 V
DC Current	Accuracy	± (1.5% rdg + 3 dgts) for mA ± (2.0% rdg + 4 dgts) for 10 A			± (2.0% rdg + 3 dgts) for mA ± (3.0% rdg + 4 dgts) for 10 A
	Ranges	2 m/20 m/200 m/10 A		20 m/10 A	32 m/320 m/10 A
AC Current	Accuracy	-		± (2.0% rdg + 5 dgts) for mA ± (3.0% rdg + 5 dgts) for 10 A	± (2.5% rdg + 5 dgts) for mA ±( 3.5% rdg + 5 dgts) for 10 A
	Ranges	-		20 m/10 A	32m/320m/10 A
Resistance	Accuracy	± (1.0% rdg + 3 dgts) ± (2.5 % rdg + 5 dgts) for 20 MΩ			± (1.5% rdg + 3 dgts) ± (5.0% rdg + 7 dgts) for 32 MΩ
	Ranges	200/2 k/20 k/200 k/2 MΩ		200/2 k/20 k/ 200 k/2 M/20 MΩ	320/3.2 k/32 k/ 320 k/3.2 M/32 MΩ
Capacitance	Accuracy	-		± (3.0% rdg + 10 dgts)	-
	Ranges	-		2 n/20 n/200 n/2 µ/20 µF
HFE test		Yes		Yes	No

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

HHM93

Consult Sales

Lieferzeit:

Multimeter/transistor test

HHM97EL

Consult Sales

Lieferzeit:

Multimeter with bargraph and backlight

*Alle Preisangaben in Euro.
Anmerkung: All units come with rubber boot, 9 V battery, test leads and operator’s manual.
