LAB_MANTLES - Discontinued

HM Series

Temperature Ratings to 900°F.
Low Watt Density.
Uniform Heat Distribution. FEATURES:
Custom Designs Available.
Molded to Fit Flask.

Beschreibung

LABORATORY SAMPLE HEATERS
OEM applications often require heating for various laboratory glassware and apparatus in chromatographic and spectrographic analyses. OMEGA™ serves these needs with custom heaters designed specifically to meet the customer requirements.

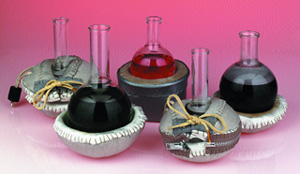

LABORATORY HEATING MANTLES
OMEGA’s Heating Mantles offer uniform heat distribution for roundbottom flasks. Whether the need is a self-standing mantle, a mantle to fit in a basket ring stand, or a full coverage zippered mantle, OMEGA™ has the solution.

Table Top Heating Mantles 482°C / 900°F Continuous

Part No. 120 VAC	Part No. 240 VAC	Size ml	Total Watts
HM0050VF1	HM0050VF2	50	52
HM0100VF1	HM0100VF2	100	70
HM0250VF1	HM0250VF2	250	143
HM0500VF1	HM0500VF2	500	210
HM1000VF1	HM1000VF2	1000	377
HM2000VF1	HM2000VF2	2000	520
HM3000VF1	HM3000VF2	3000	550
HM5000VF1	HM5000VF2	5000	620

120 volt models are supplied with a 6’ (1.8 m) power cord with a 2P 2W straight blade plug.
240 volt models are supplied with a 6’ (1.8 m) power cord with a 2P 3W straight blade plug.

Spherical Heating Mantles 450°C / 842°F Continuous

Part No. 120 VAC	Part No. 240 VAC	Size ml	Total Watts
Part No. 120 VAC	Part No. 240 VAC	Size ml	upper	lower
HM0500-SS1	HM0500-SS2	500	0	270
HM1000-SS1	HM1000-SS2	1000	140	380
HM2000-SS1	HM2000-SS2	2000	200	500

120 volt power cords are 6" (15cm) long with a 2 pole twist lock power connector and are supplied with a 4’ (1.2M) power adapter cord with a 2P 2W straight blade plug.
240 volt power cords are 6" (15cm) long with no plug.

Upper Hemispherical Heating Mantles 450°C / 842°F Continuous

Part No. 120 VAC	Part No. 240 VAC	Size ml	Total Watts
HM0250-TS1	HM0250-TS2	250	140
HM0500-TS1	HM0500-TS2	500	140
HM1000-TS1	HM1000-TS2	1000	140
HM2000-TS1	HM2000-TS2	2000	200
HM3000-TS1	HM3000-TS2	3000	200
HM5000-TS1	HM5000-TS2	5000	300

120 volt power cords are 6" (15 cm) long with a 2 pole twist lock power connector and are supplied with a 4’ (1.2 m) power adapter cord with a 2P 2W straight blade plug.
240 volt power cords are 6" (15 cm) long with no plug.

Lower Hemispherical Heating Mantles 450°C / 842°F Continuous

Part No. 120 VAC	Part No. 240 VAC	Size ml	Total Watts
HM0050-HS1	HM0050-HS2	50	60
HM0100-HS1	HM0100-HS2	100	80
HM0125-HS1	HM0125-HS2	125	80
HM0200-HS1	HM0200-HS2	200	100
HM0250-HS1	HM0250-HS2	250	180
HM0500-HS1	HM0500-HS2	500	270
HM1000-HS1	HM1000-HS2	1000	380
HM2000-HS1	HM2000-HS2	2000	500
HM3000-HS1	HM3000-HS2	3000	500
HM5000-HS1	HM5000-HS2	5000	600
HM12000-HS1	HM12000-HS2	12,000	1300

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

HM0500VF1

Consult Sales

Lieferzeit:

Table top heating mantle,500 ml, 143 watts, 120 vac

HM0500VF2

Consult Sales

Lieferzeit:

Table top heating mantle,500 ml, 143 watts, 240 vac

HM3000VF1

Consult Sales

Lieferzeit:

Table top heating mantle,3000 ml, 550 watts, 120 vac

HM3000VF2

Consult Sales

Lieferzeit:

Table top heating mantle,3000 ml, 550 watts, 240 vac

HM2000-SS1

Consult Sales

Lieferzeit:

Spherical heating mantle, 2000 ml, 200 watts upper,500 watts lower, 120 vac

HM2000-SS2

Consult Sales

Lieferzeit:

Spherical heating mantle, 2000 ml, 200 watts upper,500 watts lower, 240 vac

*Alle Preisangaben in Euro.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)	(2)	(3)
HM

Optionsbeschreibungen:

(1) Size in Milliliters Wählen Sie:
0050 für 50 ml
0100 für 100 ml
0125 für 125 ml
200 für 200 ml
0250 für 250 ml
0500 für 500 ml
1000 für 1000 ml
2000 für 2000 ml
3000 für 3000 ml
5000 für 5000 ml
12000 für 12000 ml

(2) Mantle Style Wählen Sie:
VF für table top heating mantles
-SS für spherical heating mantles
-TS für upper hemispherical heating mantles
-HS für lower hemispherical heating mantles

(3) Power Wählen Sie:
1 für 120 VAC
2 für 240 VAC

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
