S-Beam Load Cell
High Accuracy, Economical Price

LC101 and LC111 Series

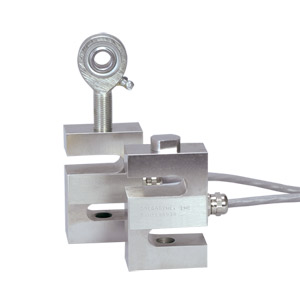

Stainless Steel S Beam Load Cell - Order online | LC101 and LC111 Series

Stainless Steel S Beam Load Cell - Order online

€513,39 LC101-25

ZUR BESTELLTABELLE
  • All Stainless Steel S beam load cell for Harsh Industrial Applications
  • 0.25% Interchangeable for Multiple Load Cell Applications
  • Calibrated in Tension
  • 5-Point Calibration Included
  • Load Buttons & Rod Ends Available
Last- und Wägezellen, Kraft- und Drehmomentaufnehmer - Verwandte Produkte anzeigen

Beschreibung

SPECIFICATIONS

Excitation: 10 Vdc, 15 Vdc max
Output: 3 mV/V ±.0075 mV/V
Linearity: ±0.03% FSO (0.1% 40 K)
Hysteresis: ±0.02% FSO(0.1% 40 K)
Repeatability: ±0.01% FSO (0.05% 40 K)
Zero Balance: ±1% FSO
Operating Temp Range: -40 to 93°C (-40 to 200°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:Zero: 0.002% FSO/°C Span: 0.002%FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 350 ±10 Ohms
Output Resistance: 350 ±10 Ohms
Full Scale Deflection: 0.010 to 0.020"
Construction: 17-4 PH Stainless Steel
Electrical: LC101: up to 200 lb = 30 ft 24 AWG; 250-2000 lb = 30 ft 20 AWG; 3000 lb and up= 15 ft 20 AWG 4-conductor shielded cable,
LC111:up to 200 lbs 4 pin connector mating connector: PT06F8-4S-R (not included) >200 lbs, 6 pin connector, mating connector: PT06F10-6S-R (not included)

The LC101 series is also available in metric configurations, with ranges from 0-10 to 0-10,000 kg and metric threads. Please see the LCM101 for complete details, or contact our Technical Sales department for more information..
Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.
Stk
Beschreibung
Stainless Steel S beam Load Cell with Cable Connection
Click to expand/minimize a list of what others bought with theLC101-25
LC101-25
€513,39
Lieferzeit: 19 Wochen

±25 lb (±11 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-50
LC101-50
€532,43
Lieferzeit: 17 Wochen

±50 lb (±23 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-100
LC101-100
€513,39
Lieferzeit: 1 Woche

±100 lb (±45 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-200
LC101-200
€561,74
Lieferzeit: 18 Wochen

±200 lb (±91 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-250
LC101-250
€513,39
Lieferzeit: 1 Woche

±250 lb (±114 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-500
LC101-500
€513,39
Lieferzeit: 18 Wochen

±500 lb (±227 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-1K
LC101-1K
€533,39
Lieferzeit: 17 Wochen

±1000 lb (±455 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-2K
LC101-2K
€503,98
Lieferzeit: 17 Wochen

±2000 lb (±909 kgf) force range

LC101-2.5K
€513,39
Lieferzeit: 17 Wochen

±2500 lb (±1134 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-3K
LC101-3K
€622,54
Lieferzeit: 6 Wochen

±3000 lb (±1361 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-5K
LC101-5K
€732,27
Lieferzeit: 18 Wochen

±5000 lb (±2269 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-10K
LC101-10K
€1.316,97
Lieferzeit: 19 Wochen

±10,000 lb (±4537 kgf) force range

LC101-20K
€1.107,65
Lieferzeit: 18 Wochen

±20,000 lb (±9074 kgf) force range

LC101-25K
€1.380,00
Lieferzeit: 17 Wochen

±25,000 lb (±11,343 kgf) force range
Click to expand/minimize a list of what others bought with theLC101-30K
LC101-30K
€1.388,00
Lieferzeit: 9 Wochen

±30,000 lb (±13,612 kgf) force range

LC101-40K
€1.415,50
Lieferzeit: 6 Wochen

±40,000 lb (±18,149 kgf) force range
Stainless Steel S beam Load Cell with Twist Lock Connector
Click to expand/minimize a list of what others bought with theLC111-25
LC111-25
€520,43
Lieferzeit: 19 Wochen

±25 lb (±11 kgf) force range
Click to expand/minimize a list of what others bought with theLC111-50
LC111-50
€529,50
Lieferzeit: 19 Wochen

±50 lb (±23 kgf) force range
Click to expand/minimize a list of what others bought with theLC111-100
LC111-100
€529,50
Lieferzeit: 19 Wochen

±100 lb (±45 kgf) force range

LC111-200
€529,50
Lieferzeit: 19 Wochen

±200 lb (±91 kgf) force range
Click to expand/minimize a list of what others bought with theLC111-250
LC111-250
€495,47
Lieferzeit: 1 Woche

±250 lb (±114 kgf) force range
Click to expand/minimize a list of what others bought with theLC111-500
LC111-500
€561,74
Lieferzeit: 19 Wochen

±500 lb (±227 kgf) force range
Click to expand/minimize a list of what others bought with theLC111-1K
LC111-1K
€529,50
Lieferzeit: 19 Wochen

±1000 lb (±455 kgf) force range
Click to expand/minimize a list of what others bought with theLC111-2K
LC111-2K
€523,32
Lieferzeit: 19 Wochen

±2000 lb (±909 kgf) force range

LC111-3K
€611,85
Lieferzeit: 19 Wochen

±3000 lb (±1361 kgf) force range
Click to expand/minimize a list of what others bought with theLC111-5K
LC111-5K
€755,24
Lieferzeit: 19 Wochen

±5000 lb (±2269 kgf) force range
Click to expand/minimize a list of what others bought with theLC111-10K
LC111-10K
€1.359,00
Lieferzeit: 19 Wochen

±10,000 lb (±4537 kgf) force range

LC111-20K
€1.107,65
Lieferzeit: 19 Wochen

±20,000 lb (±9074 kgf) force range

LC111-25K
€1.419,00
Lieferzeit: 19 Wochen

±25,000 lb (±11,343 kgf) force range

LC111-30K
€1.357,00
Lieferzeit: 19 Wochen

±30,000 lb (±13,612 kgf) force range
ACCESSORIES

PT06F8-4S-R
€36,55
Lieferzeit: 1 Woche

Mating Connector for LC111 ranges <=200 lb (not included)

PT06F10-6S-R
€38,61
Lieferzeit: 1 Woche

Mating Connector for LC111 ranges >=250 lbc (not included)
Click to expand/minimize a list of what others bought with theLBC-014
LBC-014
€74,76
Lieferzeit: 11 Wochen

1/4-28 T'hd Load Button
Click to expand/minimize a list of what others bought with theLBC-012
LBC-012
€99,11
Lieferzeit: 1 Woche

1/2-20 T'hd Load Button
Click to expand/minimize a list of what others bought with theLBC-058
LBC-058
€118,42
Lieferzeit: 1 Woche

5/8-18 T'hd Load Button
Click to expand/minimize a list of what others bought with theLBC-100
LBC-100
€133,98
Lieferzeit: ab Lager

1-14 T'hd Load Button

LBC-114
€149,21
Lieferzeit: 1 Woche

1-1/4-12 T'hd Load Button
COMPATIBLE METERS

DP25B-S-230
€420,74
Lieferzeit: ab Lager

4-digit precision Strain Meter for use with mV/V output models. 230Vac powered
Click to expand/minimize a list of what others bought with theDP41-S-230
DP41-S-230
€894,17
Lieferzeit: 1 Woche

6-digit high accuracy (0.005%) Strain Meter for use with mV/V output models. 230Vac powered

DP400S
€547,67
Lieferzeit: ab Lager

High Speed Panel Meter with Strain-Gauge Input
*Alle Preisangaben in Euro.
 Anmerkung: Mating Connector not included with LC111 models. See accessories above

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen
Optionsbeschreibungen:


(1) Cable or Connector Style Wählen Sie:
101 für Cable Style
111 für Connector Style

(2) Wählen Sie:
20 für 20 lb range
25 für 25 lb range
50 für 50 lb range
75 für 75 lb range
100 für 100 lb range
150 für 150 lb range
200 für 200 lb range
250 für 250 lb range
500 für 500 lb range
750 für 750 lb range
1K für 1000 lb range
1.2K für 1200 lb range
1.5K für 1500 lb range
2K für 2000 lb range
2.5K für 2500 lb range
3K für 3000 lb range
4K für 4000 lb range
5K für 5000 lb range
10K für 10000 lb range
15K für 15000 lb range
20K für 20000 lb range
25K für 25000 lb range
30K für 30000 lb range
40K für 40000 lb range
Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
