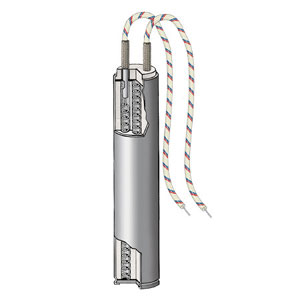

Low Density electric Cartridge Heater 1 1/4" Diameter, Actual 31.62 mm (1.245")

LDC10 Series

LDC10 Low Density electric Cartridge Heater 1 1/4

Typical Applications
Heat Sealing Equipment
Laminating Equipment
Packaging Equipment
Labeling Machines
Molds and Dies
Food Processing
Refrigeration
Shoe Machinery
Glue Guns
Wax Pots
Heating Liquids
Heating Gases

Heizkartuschen - Verwandte Produkte anzeigen

Beschreibung

Click on this link if you need more information about Cartridge Heaters.

Low-density cartridge heaters are an excellent, cost effective choice without compromising quality for Original Equipment Manufacturers (OEMs) consuming large quantities of cartridge heaters for their equipment.

Standard Specifications and Tolerances
Performance Ratings
Maximum Temperature: 650°C (1200°F)
Maximum Watt Density: 3.1 to 7.0 Watt/cm² (20 to 45 Watt/in²) depending on heater size and operating temperature

Model No.		Sheath Length		Watts	Watt Density
120V	240V	mm	inch	Watts	Watt/cm²	Watt/in²
LDC00403	LDC00404	82.6	3¹⁄₄	400	5.7	37
LDC00405	LDC00406	127.0	5	450	3.9	25
LDC00407	LDC00408	152.4	6	500	3.6	23
LDC00409	LDC00410	152.4	6	800	5.7	37
LDC00411	LDC00412	177.8	7	550	3.3	22
LDC00413	LDC00414	177.8	7	1000	6.1	39
LDC00415	LDC00416	228.6	9	675	3.1	20
LDC00417	LDC00418	254.0	10	1000	4.2	27
LDC00419	LDC00420	304.8	12	1000	3.4	22
—	LDC00421	355.6	14	2000	5.8	38
—	LDC00422	381.0	15	1250	3.4	22
LDC00423	LDC00424	419.1	16¹⁄₂	1000	2.5	16
—	LDC00425	571.5	22¹⁄₂	2200	3.9	25
—	LDC00426	609.6	24	2400	4.0	26
Note: model numbers above are for low density cartridge heaters terminated with Type F flexible leads, 254 mm (10") long. Ordering Example: LDC00417, 1000 W, 120 Vac cartridge heater.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

LDC00426

Consult Sales

Lieferzeit:

240 Volt, 2400 Watts,sheath length 24 in

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.
Anmerkung: * Low density cartridge heaters are UL recognized and CSA certified in many design variations under UL File Number E65652 and CSA File Number 043099. If you require UL and/or CSA Agency Approval, please specify when ordering. Dimensional Specifications Electrical Specifications **480V when applicable. Contact Omega. Note: Model numbers above are for low density cartridge heaters terminated with Type F flexible leads, 254 mm (10") long.
