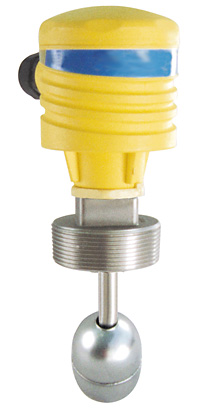

LVR51

Stainless Steel Construction for a Full Range of Chemically Compatible Liquids
Ideal for Use in Chemicals with a Specific Gravity of 0.75 or Greater
Rugged Enclosure Rated NEMA-4X for General Purpose or NEMA-7 for Hazardous Areas
Continuously Monitor Liquid Levels with Proportional 4-20 mA Output

Beschreibung

A single float is attached to a stainless steel rod, which is installed through the top of the tank. Internal to the rod is a series of reed switches designed to open and close as the float changes with the liquid level. The internal magnets within the float will open or close the reed switches in a “2-3-2 at-a-time” sequence, which enables the transmitter to provide accurate level indication. With every movement of the float, either one additional switch closes or opens.

SPECIFICATIONS
Range: 12.7 cm to 1.8 m (5" to 72")
Accuracy: 6.35 mm (0.25") over span in water
Specific Gravity: 0.75 minimum
Orientation: ±30° from vertical
Supply Voltage:
    LVR50-PP Series: 10 to 30 Vdc
    LVR50 Series: 10 to 40 Vdc
Loop Resist.: 600Ω @ 24 Vdc
Signal Output: 4 to 20 mA, two-wire
Signal Invert: 4 to 20 or 20-4 mA
Process Temp.: -40 to 149°C (-40 to 300°F)
Electronic Temp.: -40 to 71°C (-40 to 160°F)
Pressure: 300 psi maximum; -15 psig minimum
Enclosure Rating:
    LVR50-PP Series: NEMA 4X (IP65)
    LVR50 Series: NEMA 7 (IP65)
Installed Height:
    LVR50-PP Series: 13.2 cm (5.2")
    LVR50: 15.7 cm (6.2")
Encl. Material:
    LVR50-PP Series: PP, UL94VO
    LVR50 Series: Aluminum
Guide/Float Mat.: 316 SS
Process Mount: 2 NPT
Conduit Entrance: Single, ½ NPT
Classification:
    LVR50-PP: General purpose
    LVR50 Series: Explosion proof
CE Compliance: EN 50082-2 immunity EN 55011 emission
Approvals: LVR50Series: FM: Class I, Division I, Groups B, C & D; Class II, Groups E, F and G Groups E, F and G
