Bridge and Strain Gauge data acquisition system & Data Logger - Discontinued

OM-CP-BRIDGE120

ZUR BESTELLTABELLE

Data logger for strain gauge and bridge with a read rate up to 20 Samples per Second
High Speed Download
Excitation for Bridge Sensor
Programmable Start Time
Reusable
Miniature Size
Reads in Microstrain and Engineering Units
Versatile Inputs for Many Applications

Beschreibung

This Product has been discontinued. Please see OM-CP-BRIDGE101A for a potential replacement.

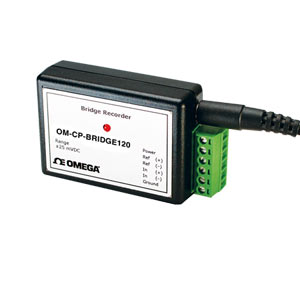

The Bridge and strain gauge data logger of the OM-CP-BRIDGE120 series is a miniature, battery-powered, standalone, bridge/strain gauge data acquisition system and data logger. It features a 20 Hz processing speed and a real-time clock module. This portable, easy-to-use device can measure and record up to 32,767 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The logger can be started and stopped from a computer and its small size allows it to fit almost anywhere.

The OM-CP-BRIDGE120 data logger makes data retrieval quick and convenient. Simply plug it into an available com port and our user-friendly software does the rest. The software converts a PC into a real-time strip chart recorder. Data can be printed in graphical and tabular format or exported to a text or Microsoft Excel® file.

Specifications
Input Connection: 6-position removable screw terminal
Input Impedance: 1 MΩ during acquisition, low impedance when inactive
Reference Voltage Output: 2.5 Vdc, 2.5 mA (1 KΩ) maximum load
Maximum Input Signal Impedance: 5 KΩ (350 Ω sensors can be used with series resistors
to produce >1 KΩ; 120 Ω gauges can be used in half and quarter bridge configurations)
Specified Accuracy: Nominal Range @ 25°C
Temperature Effect on Span and Offset: <25 µV over -40 to 80°C
Engineering Units: Stored in device; user may define any desired scale
and offset from ±1.0000E-31 to ±9.9999E+31
Start Modes: Software programmable immediate or delay start up to six months in advance
Real-Time Recording: May be used with PC to monitor and record data in real-time
Memory: 32,767 readings; software configurable memory wrap
Reading Rate: 20 Hz to 12 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
to alert user when calibration is required
Battery Type: 3.6 V lithium battery (included); user replaceable
Battery Life: 25 days
Power: 3.6 V lithium battery included
Data Format: Date and time stamped: %, ppm; e, µe, V, mV, µV engineering units
specified through software
Time Accuracy: ±1 minute per month at 20 to 30°C
Computer Interface: USB (interface cable required); 57,600 baud
Software: Windows® 98/ME/NT/2000/XP/VISTA/7 (32 and 64 bit)
Operating Environment: -40 to 80°C (-40 to 176°F) 0 to 95% RH non-condensing
Dimensions: 42 H x 68 W x 20 mm D (1.7 x 2.7 x 0.8")
Weight: 60 g (2 oz)

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

OM-CP-BRIDGE120-10

Consult Sales

Lieferzeit:

Bridge and strain gauge data logger (±10 mV input range)

OM-CP-BRIDGE120-25

Consult Sales

Lieferzeit:

Bridge and strain gauge data logger (±25 mV input range)

OM-CP-BRIDGE120-100

Consult Sales

Lieferzeit:

Bridge and strain gauge data logger (±100 mV input range)

OM-CP-BRIDGE120-1000

Consult Sales

Lieferzeit:

Bridge and strain gauge data logger (±1000 mV input range)

Accessories

OM-CP-IFC200

€168,91

Lieferzeit: ab Lager

Windows software and 3.5 m USB interface cable

OM-CP-BAT105

€24,16

Lieferzeit: ab Lager

Replacement 3.6 V lithium battery

OM-CP-CONNECTOR-6

€17,06

Lieferzeit: 4 Wochen

Replacement 6 position terminal block connector

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with 3.6V lithium battery and Operator’s manual.
A USB cable is included with the OM-CP-IFC200 Windows software (required to operate the data logger and is sold separately).
