- Discontinued Temperature Data Logger with 600 mm Stainless Steel Flexible Probe

OM-CP-HITEMP150-PT and OM-CP-HITEMP150-PT-TSK

ZUR BESTELLTABELLE

600 mm Flexible Probe
6 mm Probe Bending Radius
-200 to 250°C Measurement Range (OM-CP-HITEMP150-PT-TSK)
Operates Up to 150°C (OM-CP-HITEMP150-PT)
High Accuracy
Reusable
Submersible
Optional Traceable Calibration

Beschreibung

Find how a Data Logger works on this link.

The OM-CP-HITEMP150-PT series has been discontinued. Please see the OM-CP-HITEMP140-PT Series as a possible alternative or contact our Sales department.

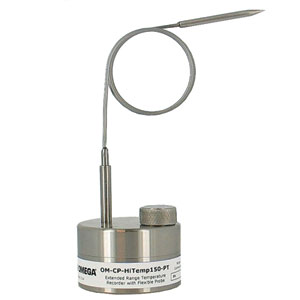

The OM-CP-HITEMP150-PT is a submersible, temperature data logger that can operate up to 150°C and has a 600 mm flexible, stainless steel probe. The probe is durable and can be spiraled, bent or angled in any direction, making it easy to log temperatures within bottles, vials or other hard to reach places.

The OM-CP-HITEMP150-PT can measure and record temperatures between -200 and 260°C. Users can select reading rate options from 1 reading every second to one every 12 hours. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged.

The OM-CP-HITEMP150-PT-TSK is a kit that includes an OM-CP-HITEMP150-PT data logger enclosed in a thermal shield. This durable system can withstand temperatures up to 250°C. The thermal shield can be easily removed from the OM-CP-HITEMP150-PT-TSK, so it may be used as a standalone data logger also. Installing the data logger back into the thermal shield is simple, just open the enclosure, thread the probe through the end cap and fasten the thermal barrier together.

The OM-CP-HITEMP150-PT-TSK is submersible and has a 600 mm flexible, stainless steel probe. The probe is durable and can be spiraled, bent or angled in any direction, making it easy to log temperatures within bottles, vials or other hard to reach places. These two devices can be started and stopped directly from a computer and their compact design allows them to fit almost anywhere. Data retrieval is simple. Plug the device into an available USB port and our easy-to-use software does the rest. The software converts a PC into a real-time strip chart recorder. Data can be printed in graphical and tabular format or exported to a text or Microsoft Excel file.

SPECIFICATIONS
OM-CP-HITEMP150-PT-TSK
Operating Environment:
-200 to 250ºC (time limited) 0 to 100% RH
Enclosure Rating: IP68
Dimensions: 53.4 x 66 mm dia.
Weight: 294.8 g

OM-CP-HITEMP150-PT
(WITHOUT THERMAL SHIELD)
Temperature Sensor: 100Ω Platinum RTD
Temperature Range: -40 to 150ºC
Temperature Resolution: 0.05ºC
Calibrated Accuracy: ±0.5ºC
Start Modes: Software programmable immediate start or delay start up to six months in advance.
Real Time Recording: May be used with PC to monitor and record data in real time
Memory: 32,767 readings
Reading Rate: One second up to once every 12 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.9V high-temperature lithium battery (included); factory replaceable only
Battery Life: 1 year typical (1 minute reading rate @25ºC)
Data Format: Date and time stamped ºC, ºF, K, ºR
Time Accuracy: ±1 minute/month at 20ºC (RS-232 cable not in use)
Computer Interface: PC serial or USB (interface cable required); 2400 baud
Software: Windows XP SP3/Vista/7 (32-bit and 64-bit)
Operating Environment: -40 to 150ºC, 0 to 100% RH
Weight: 225 g
Material: 316 Stainless Steel
Dimensions:
Body: 28 x 45 mm dia.
Probe Tip: 3.2 OD x 38 mm
Flexible Probe Portion: 607 x 1.6 mm OD.

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

OM-CP-IFC200

€168,91

Lieferzeit: ab Lager

Windows software and 3.5 m USB interface cable

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with 3.9V lithium battery. Operator’s manual and USB interface cable are included with the OM-CP-IFC200 software/cable package (required for data logger operation, sold separately).

Zugehörige Dokumentation:

Download OM-CP Series - Data Logger Quickstart Guide

Download OM-CP Series - Data Logger and Software User Guide
