Wireless Low Level Voltage Transmitter
Part of the NOMAD® Family
These products are not CE marked and use a frequency band which is not approved for use in Europe

OM-CP-RFVOLT101A

Multiple Transmitter Configurations
Automatically Converts Your PC Into a Strip Chart Recorder
Real Time Operation
Software Configurable
Programmable Engineering Units, Scale Factor and Offset Value
Programmable Start Time

Beschreibung

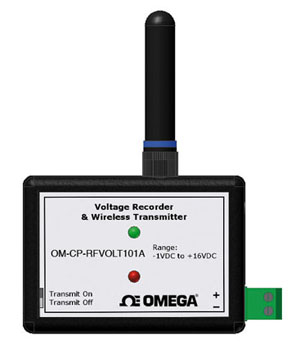

The OM-CP-RFVOLT101A is a battery powered voltage recorder and wireless transmitter. This is an all-in-one compact, portable, easy to use device that will measure and record voltage measurements. When enabled, the wireless transmitter will transmit readings back to the host computer where the data can be analyzed in real time. These readings are also logged to the device™s memory for added data security. The convenient slide switch allows the transmitter to be turned on or off without affecting the operation of the device.The device can be started, stopped and configured directly from your computer.

Its small size allows it to fit almost anywhere. In addition to the wireless communications, the
OM-CP-RFVOLT101A makes data retrieval quick and easy. Simply plug the device into an empty com port and our user-friendly software will handle the rest.

The Windows software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can also be exported to a text or Microsoft Excel file.

Specifications
Input Connection: Screw terminal
Analog Converstion Time: 133ms
Frequency Rejection: 60 MHz
Temperature Coefficient:
<25 ppm/°C;<10 ppm/°C typical
Specified Accuracy Range:
Nominal range @25°C
Engineering Units:
User may define unites up to 10 characters in length.
This value is stored within the device.
Scale Factor:
User may program any desired scaling
factor from ±1.000E-31 to ±9.999E+31.
The scaling factor is stored within the device.
Start Time: Software programmble start
time and date up to six months in advance
Memory: 8191 readings
Reading Interval:
1 reading every 30 seconds to 1 every 12 hours
Calibration: Digital calibration through software
Data Format: Date and time stamped V, mV, uV,
engineering units progammable through software
Time Accuracy:
±1 minute/month (at 20 to 30°C)
Computer Interface: PC serial or RS-232C COM
for receiver (interface cable required); 57600 baud
RF Baud Rate: 4800 baud
RF Carrier Frequency: 418 MHz
Range: 36 m (120') feet line of sight
Power: 3.6 V lithium battery included
Battery Life: 1 year typical
(1 minute reading rate @25°C)
Software:
Windows 95/98/ME/NT/2000/XP
Operating Environment:
-40 to 80°C (-40 to 176°F)
5 to 95% RH non-condensing
Dimensions:
35 H x 64 W x 16 mmD (1.4 x 2.5 x 0.6")
Weight: 60 g (2 oz)

Input Table	OM-CP-RFVOLT101A-100MV	OM-CP-RFVOLT101A-15V	OM-CP-RFVOLT101A-30V
Voltage Range	±100 mV	-1.0 to + 16.0 V	-2.0 to 32.0 V
Resolution	5 µA	0.5 mV	1.0 mV
Calibrated Accuracy	±0.01% FSR	±0.10% FSR	±0.10% FSR
Input Impedance	> 1K Ω	> 10K Ω	> 10K Ω
Overload Protection	±5 V	±30 V	±48 V

These products are not CE marked and use a frequency band which is not approved for use in Europe

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

OM-CP-RFVOLT101A-15V

Consult Sales

Lieferzeit:

Wireless voltage transmitter, -1.0 to 16.0V range

OM-CP-RFVOLT101A-30V

Consult Sales

Lieferzeit:

Wireless voltage transmitter, -2.0 to 32.0V range

OM-CP-RFVOLT101A-100MV

Consult Sales

Lieferzeit:

Wireless voltage transmitter, ±100 mV range

OM-CP-RFC101A

Consult Sales

Lieferzeit:

Includes RF receiver, 1.2m (4') RS-232 cable with DB9F termination, Windows software and operator's manual

OM-CP-BAT105

€24,16

Lieferzeit: ab Lager

Replacement 3.6 V lithium battery

OM-CP-CONNECTOR-2

€6,46

Lieferzeit: 1 Woche

Replacement 2 position terminal block connector for the OM-CP-RFVOLT101A-15V and OM-CP-RFVOLT101A-30V

OM-CP-CONNECTOR-3

€10,47

Lieferzeit: 1 Woche

Replacement 3 position terminal block connector for the OM-CP-RFVOLT101A-100MV

*Alle Preisangaben in Euro.
Anmerkung: The OM-CP-RFC101A receiver package is required to operate the wireless transmitter
These products are not CE marked and use a frequency band which is not approved for use in Europe

Zugehörige Dokumentation:

Download OM-CP Series - Data Logger and Software User Guide

Download OM-CP Series - Data Logger Quickstart Guide
