Temperature Monitoring and Alarming System with Wireless Two-Way Communication - Discontinued

OM-CP-THERMALERT-GB_P Series

ZUR BESTELLTABELLE

Precision RTD Sensing Element
View Data in Real-Time
Glycol Bottle (OM-CP-THERMALERT-GB Only)
2 Year Battery Life
Battery Life Indicator
Field Upgradeable

Beschreibung

This product has been discontinued. Please see OM-CP-RFTEMP2000A for a potential replacement.

Click on this link if you need more information about Wireless temperature sensor.

The OM-CP-THERMALERT-GB and OM-CP-THERMALERT-P are temperature monitoring and alarming systems designed for use in hospitals, laboratories, pharmaceutical facilities and other critical temperature monitoring areas. Also, these units can be used to monitor a single temperature location or expanded to include hundreds of locations by adding additional transmitters. These units record both ambient temperature and humidity.

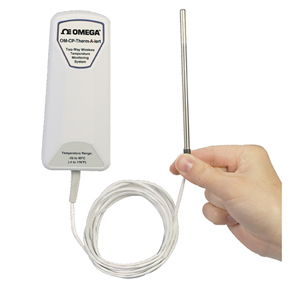

The OM-CP-THERMALERT-GB and OM-CP-THERMALERT-P provides real time notification of temperature deviations, and features a user programmable alarm that can be configured to send a message via text message, screen alarm and/or e-mail if an alarm condition occurs. The OM-CP-THERMALERT-GB system includes an RTD probe that is mounted in a miniature bottle filled with ethylene glycol. In this method, a temperature “buffered” reading is taken, preventing false alarms. The OM-CP-THERMALERT-P system includes an RTD probe with a 90 cm long lead wire and a 115 mm long probe sheath.

The OM-CP-THERMALERT-GB and OM-CP-THERMALERT-P system is equipped with wireless two-way communication. Full communication can be performed directly from a central PC, including starting, stopping and downloading. In addition to wireless transmission of data, both units store each reading to internal memory for backup. This back up data may be retrieved wirelessly at a later time. Customers can set-up automatic archiving preferences, ensuring all data is saved and retained to comply with federal regulations.

Specifications
TEMPERATURE
Probe Temperature Range:
  OM-CP-THERMALERT-GB:  -50 to 80°C (-58 to 176°F)
  OM-CP-THERMALERT-P:  -200 to 260°C (-328 to 500°F)
Probe Calibrated Accuracy:
  ±0.1°C, -20 to 80°C; ±0.5°C (outside of that range)
Resolution: 0.01°C (0.018°F)

WIRELESS
RF Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication
Band: ISM band 2.405-2.48 GHz
Maximum Output Power: +0dBm typical
Receiver Sensitivity (OM-CP-RFC1000-EXT): -95dBm typical
Range:
  Outdoor Line-of-Sight 610 metres
  Indoor: 152 metres

GENERAL
Reading Rate: One reading every two seconds to one every 24 hours
Memory: 30,000 readings; software configurable memory wrap
Wrap Around: Yes
Start Modes:
  • Immediate start
  • Delay start up to 18 months
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.6V lithium battery (included); user replaceable
Battery Life: 2 years typical
Data Format: Date and time stamped °C, °F, K, °R
Time Accuracy: ±1 minute/month (at 25°C)
Computer Interface: OM-CP-RFC1000-EXT-EUR required; 115,200 baud
Software: XP SP3/Vista/7 and 8 (32- and 64-bit)
Operating Environment: -20 to 80°C (-4 to 176°F), 0 to 95% RH non-condensing
Dimensions:
  Data Logger:
  55 W x 127 L x 33 mm D
  Wire: 2.7 m
  Probe: 0.19 dia x 114 mm
Enclosure Material: ABS plastic

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

OM-CP-THERMALERT-GB30

€372,44

Lieferzeit: 1 Woche

Wireless temperature transmitter with RTD probe and 30 ml glycol bottle

OM-CP-THERMALERT-GB60

€372,44

Lieferzeit: 1 Woche

Wireless temperature transmitter with RTD probe and 60 ml glycol bottle

OM-CP-THERMALERT-GB250

€372,44

Lieferzeit: 1 Woche

Wireless temperature transmitter with RTD probe and 250 ml glycol bottle

OM-CP-THERMALERT-P

Consult Sales

Lieferzeit:

Wireless temperature transmitter with precision RTD probe

OM-CP-RFC1000-EXT-EUR

€252,27

Lieferzeit: 4 Wochen

Wireless transceiver package includes RF transceiver, USB cable, Windows software and operator's manual

OM-CP-BAT109

€27,65

Lieferzeit: 1 Woche

Replacement 3.6V lithium battery

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with 3.6V lithium battery.

Zugehörige Dokumentation:

Download OM-CP-RFC1000 - Wireless Transciever Quick Start Guide

Download Quick start manual for OM-CP-THERMALERT series
