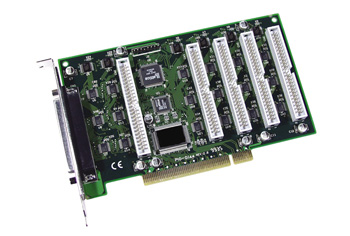

PCI Bus 144-Bit DIO Board

OME-PIO-D144

PCI Bus 144-Bit DIO Board | OME-PIO-D144

PCI Bus 144-Bit DIO Board

513,26 OME-PIO-D144

1 year warranty CE
  • 144 Digital I/O Lines Buffered on the Board
  • Connect Directly to OME-DB-24 Series Compatible Daughter Boards
  • Emulates Industrial Standard
    8255 Mode 0
  • Programmable Interrupt Handling
  • Five 50-Pin Flat Cable Connectors & One 37-Pin D-Sub Connector
  • Output Status Readback
  • High Output Driving Capability
  • No Base Address or IRQ Switches to Set
  • 4 interrupt Sources: PCO, PCI, PC2, PC3
PC-Einsteckkarten - Verwandte Produkte anzeigen

Beschreibung

The OME-PIO-D144 provides 144 TTL digital I/O lines. The OME-PIO-D144 consists of eighteen
8-bit bi-directional ports (3 ports on each connector). The 8-bit ports on each connector are port A (PA), port B (PB), and port (PC). Each 8-bit port can be independently set as input or output. All ports are configured as inputs upon power-up or reset. The OME-PIO-D144 has one D-Sub connector and five 50-pin flat cable connectors. Each header can connect to a 50-pin flat cable. The flat cable can be connected to OME-ADP-37/PCI or OME-ADP- 50/PCI adapter which can be fixed on the computer chassis. It can be installed in a 5 V PCI bus and supports true "Plug & Play".

Software Development Kit
All boards are supplied with a standard software development kit for Windows XP/Vista/7. The software development kit includes dll files for programming in C,C++ or other high level languages and OCX files for Visual Basic or Active X programming.LabView drivers are also included.

Specifications
ALL INPUTS AND OUTPUTS ARE TTL-COMPATIBLE
Logic High Voltage:
2.4 V (min)
Logic Low Voltage: 0.8 V (max)
Sink Current: 64 mA (max)
Source Current: 32 mA (max)
4 Interrupt Sources:
CON1, PC0, PC1, PC2, PC3
Operating Temperature:
0 to 60°C (32 to 140°F)
Storage Temperature:
-20 to 80°C (-4 to 176°F)
Humidity: 0 to 90% RH non-condensing
Dimensions:
105 H x 180 mm W (4.1 x 7.1")
Power Consumption: +5 V @1100 mA
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
OME-PIO-D144
513,26
Lieferzeit: 1 Woche

PCI bus 144-bit DIO board
OME-DB-24PD
529,00
Lieferzeit: 4 Wochen

24-channel relay board with 37-pin D-Sub connector, includes 1 m (3') 37-pin D-Sub connector cable (OME-CA-3710)
OME-DB-24RD/12
406,44
Lieferzeit: 3 Wochen

24-channel relay board (12 V) with 37-pin D-Sub connector, includes 1 m (3') 37-pin D-Sub connector cable (OME-CA-3710)
OME-DB-24PRD/12
Consult Sales
Lieferzeit:


24-channel power relay board (12 V) with 37-pin D-Sub connector, includes 1 m (3') 37-pin D-Sub connector cable (OME-CA-3710)
OME-DB-24POR
617,50
Lieferzeit: 4 Wochen

24-channel photo mos relay output board with 1.5 m (5') 50-pin flat cable, (OME-CA-5015)
OME-DB-24SSR
1.228,00
Lieferzeit: 4 Wochen

24-channel solid state relay output board with 1.5 m (5') 50-pin flat cable, (OME-CA-5015)
OME-DB-24C
404,67
Lieferzeit: 1 Woche

24-channel open-collector output board with 1.5 m (5') 50-pin flat cable, (OME-CA-5015)
OME-ADP-37/PCI
91,76
Lieferzeit: 4 Wochen

50-pin extender to OME-DB-37 (PCI bus)
OME-ADP-50/PCI
91,76
Lieferzeit: 4 Wochen

50-pin extender (PCI bus)
*Alle Preisangaben in Euro.
Anmerkung: OMEGACARE extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARE covers parts, labor and equivalent loaners.
All boards include utility software and a complete user's manual on CD-ROM.
Ordering Example: (1) OME-PIO-D144 PCI bus 144-Bit DIO board, €513,26

Zugehörige Dokumentation:

Download PCI-Bus Digital i/o Board - Hardware Manual
Download PCI-Bus Digital i/o Boards - Software Manual
