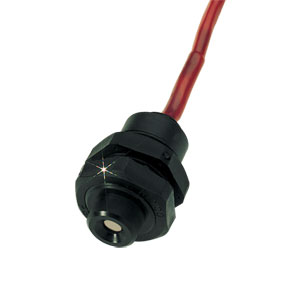

Fixed Mount Infrared Thermocouples with ABS Plastic Housing

OS36-01 Series

Fixed Mount Infrared Thermocouples | OS36-01 Series

Fixed Mount Infrared Thermocouples

243,58 OS36-01-J-50F

1 year warranty CE
  • 1:1 Approx. 60 degree Field of View
  • J, K, E or T Thermocouple Output Signal
  • Works with Standard Thermocouple Indicators and Controllers
  • Self-Powered
  • No Moving Parts
  • Temperature Compensated
  • Measurements to 290°C (550°F)
  • High Strength ABS Plastic Housing Meets NEMA Ratings
Infrarot-Temperaturmessgeräte - Verwandte Produkte anzeigen

Beschreibung

The new OS36-01 Series of infrared thermocouples are a revolutionary addition to OMEGA’s expanded line of infrared thermocouples. These units feature an exceptionally strong, hermetically sealed ABS plastic housing that makes non-contact infrared temperature measurement more economical. The threaded head can be securely mounted through a bulkhead or threaded into a tapped hole. The OS36-01 Series produce repeatable temperature readings for use in a wide variety of process monitoring and quality control applications.
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
OS36-01-J-80F
267,07
Lieferzeit: 1 Woche

Compact infrared thermocouple type J, 10 to 49°C/50 to 120°F range
OS36-01-J-140F
257,51
Lieferzeit: 1 Woche

Compact infrared thermocouple type J, 25 to 80°C/80 to 180°F range
OS36-01-J-180F
248,37
Lieferzeit: 4 Wochen

Compact infrared thermocouple type J, 70 to 104°C/160 to 220°F range
OS36-01-J-240F
253,29
Lieferzeit: 1 Woche

Compact infrared thermocouple type J, 95 to 130°C/200 to 270°F range
OS36-01-K-80F
267,07
Lieferzeit: 1 Woche

Compact infrared thermocouple type K, 10 to 49°C/50 to 120°F range
OS36-01-K-340F
253,61
Lieferzeit: 4 Wochen

Compact infrared thermocouple type K, 145 to 175°C/290 to 350°F range
OS36-01-K-180F
253,61
Lieferzeit: 4 Wochen

Compact infrared thermocouple type K, 70 to 104°C/160 to 220°F range
OS36-01-K-440F
267,06
Lieferzeit: 4 Wochen

Compact infrared thermocouple type K, 170 to 250°C/340 to 480°F range
OS36-01-T-140F
Consult Sales
Lieferzeit:


Compact infrared thermocouple type T, 25 to 80°C/80 to 180°F range
OS36-01-T-280F
256,53
Lieferzeit: 4 Wochen

Compact infrared thermocouple type T, 125 to 155°C/260 to 310°F range
OS36-01-E-240F
243,58
Lieferzeit: 4 Wochen

Compact infrared thermocouple type E, 95 to 130°C/200 to 270°F range
*Alle Preisangaben in Euro.
Anmerkung: Stripped leads are standard.

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen
Optionsbeschreibungen:


(1) Thermocouple Type Wählen Sie:
J für Type J
K für Type K
T für Type T
E für Type E

(2) Temperature Range Wählen Sie:
50F für –18 to 27°C/0 to 80°F
80F für 10 to 49°C/50 to 120°F
98.6F für 16 to 39°C/60 to 102°F
140F für 25 to 80°C/80 to 180°F
180F für 70 to 104°C/160 to 220°F
240F für 95 to 130°C/200 to 270°F
280F für 125 to 155°C/260 to 310°F
340F für 145 to 175°C/290 to 350°F
440F für 170 to 250°C/340 to 480°F
Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.

Zugehörige Dokumentation:

Download Infrared Thermocouples
Download Application Notes
