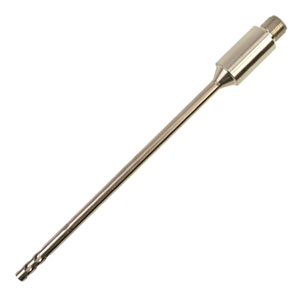

Air Temperature RTD Probe

P-L-M12 Series

Air Temperature RTD Probe | P-L-M12 Series

Air Temperature RTD Probe

  • Pt100 RTD with Class A Accuracy Standard (Tighter Accuracy Options Available)
  • 316L Stainless Steel Probe and Housing with Vent Holes Around Element
  • Temperature Range: -100 to 250°C
  • M12, 4-Pin, A-Coded Plug Connector for Easy Installation
  • Available With or Without Mounting Threads
  • Probe Will Withstand 400 psi (27.6 bar) Differential Pressure Between Airstream and Ambient Conditions

Beschreibung

This sensor combines the usefulness of our ultra-precise air measurement RTD sensors with the convenience of our M12 enabled RTD sensors. The design of the probe includes a perforated sheath over the sensing element to protect it from debris, while also allowing airflow to directly reach the element. This results in a sensor which is capable of providing accurate, fast responding temperature measurements. OMEGA™ also offers a wide variety of compression fittings, extension cables and measurement and control instruments which allow you to fully customize the system to best meet your measurement and control needs.
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
P-L-A-6-50-0-M12
Consult Sales
Lieferzeit:


Pt100, Class A
P-L-A-6-100-0-M12
105,01
Lieferzeit: 14 Wochen

Pt100, Class A
P-L-A-6-150-0-M12
Consult Sales
Lieferzeit:


Pt100, Class A
P-L-A-6-50-M8-M12
90,50
Lieferzeit: 19 Wochen

Pt100, Class A
P-L-A-6-100-M8-M12
90,50
Lieferzeit: 19 Wochen

Pt100, Class A
P-L-A-6-150-M8-M12
Consult Sales
Lieferzeit:


Pt100, Class A
P-L-A-6-50-M10-M12
Consult Sales
Lieferzeit:


Pt100, Class A
P-L-A-6-100-M10-M12
105,08
Lieferzeit: 8 Wochen

Pt100, Class A
P-L-A-6-150-M10-M12
Consult Sales
Lieferzeit:


Pt100, Class A
*Alle Preisangaben in Euro.
Anmerkung: For 1/3 DIN accuracy, change “-A-” to “-1/3-” after the “-L-” in the model number and add $9 to price. For 1/10 DIN accuracy, change “-A-” to “-1/10-” after the “-L-” in the model number and add $36.50 to price.
