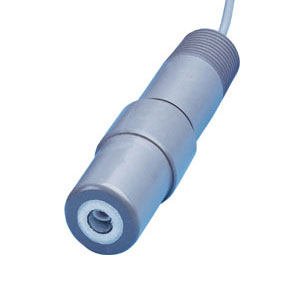

Submersible Flat Surface pH/ORP Electrodes

PHE-6510, PHE-6511, ORE-6510, and ORE-6511

Submersible pH Electrodes | PHE-6510, PHE-6511, ORE-6510, and ORE-6511

Submersible pH Electrodes

ZUR BESTELLTABELLE
  • pH/ORP Elecrtodes with CPVC or PVDF Construction
  • Designed For Mounting in Tanks, Flumes, etc
  • Easy Mounting in Tanks
pH-Instrumentierung und Elektroden für industrielle Anwendungen - Verwandte Produkte anzeigen

Beschreibung

The OMEGA™ PHE/ORE-6510 Series submersible electrodes are designed for use in drums, open tanks and streams, etc. The flat sensing surface is surrounded by a porous polyethylene reference junction which minimizes fouling. Electrode installation and removal done by a simple 1/4 turn quick disconnect. The cable assembly's cap has 1/2" MNPT thread, which can be connected to a coupling and support pipe. The pipe allows easy mechanical mounting and protects the cable from the liquid measured. The resulting assembly is lightweight for convenient handling when maintenance is needed. ATC is available as part of the mounting assembly.

The flat surface design is well suited for applications with relatively high suspended solids or where flocculation operations require low velocities.

Where only low velocities are present and coating is a problem, the electrode can be mounted at a 45° angle facing the flow so as to obtain increased scrubbing action across the measuring surface.

Submersible Electrode Options
Ordering Suffix Description Available In Line Models
-HFHF resistant to 2% at ambient temperaturePHE-6510, PHE-6511, PHE-6510-GL
-GLGround LoopPHE-6510, ORE-6510
-LCLow ConductivityAll pH electrodes
-ACRYLACRYL GelAll models but PHE-5460


Note: At the time of initial purchase, please order both electrode and mounting assembly. Mounting assembly includes assembly in which the electrode is mounted and 3 metre cable. If ordered with automatic temperature compensation (ATC), the temperature compensator is built into the mounting assembly. When the electrode has expired, simply re-order the electrode (the mounting assembly is re-usable).

Please download PDF file for full specifications and a complete list of available models.
Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.
Stk
Beschreibung
CPVC pH Electrodes - CPVC mounting assemblies should be ordered at the same time

PHE-6510-GL
€501,63
Lieferzeit: 5 Wochen

Submersion pH electrode with ground loop

PHE-6510-GLHF
€544,60
Lieferzeit: 8 Wochen

Submersion pH electrode, Fluoride resistant with ground loop
PVDF pH Electrodes - PVDF mounting assemblies should be ordered at the same time

PHE-6511
€394,28
Lieferzeit: 2 Wochen

PVDF submersion pH electrode

PHE-6511-HF
€458,09
Lieferzeit: 8 Wochen

PVDF pH electrode, Fluoride resistant

PHE-6511-LC
€434,29
Lieferzeit: 9 Wochen

Low conductivity electrode
Mounting Assemblies Are Required for Installation.
CPVC electrodes are only compatible with CPVC mounting assemblies.
PVDF electrodes are only compatible with PVDF assemblies. For additional configurations see the Part Number Builder below this table.
Click to expand/minimize a list of what others bought with thePHEH-65-10
PHEH-65-10
€101,22
Lieferzeit: 3 Wochen

CPVC, 3 m (10') cable with BNC connector
Click to expand/minimize a list of what others bought with thePHEH-65-10-PT100
PHEH-65-10-PT100
€254,37
Lieferzeit: 1 Woche

CPVC, 100Ω Platinum RTD, 3 m (10') cable with BNC connector
Click to expand/minimize a list of what others bought with thePHEH-65-10-PT1K
PHEH-65-10-PT1K
€268,66
Lieferzeit: 8 Wochen

CPVC, 1000Ω Platinum RTD, 3 m (10') cable with BNC connector

PHEH-65-10-R3K
€244,23
Lieferzeit: 9 Wochen

CPVC, 3000Ω Balco, 3 m (10') cable with BNC connector

PHEH-65-14
€122,39
Lieferzeit: 9 Wochen

CPVC, 4.3 m (14') cable with BNC connector

PHEH-65-15
€123,80
Lieferzeit: 8 Wochen

CPVC, 4.6 (15') cable with BNC connector

PHEH-65-15-PT100
€278,75
Lieferzeit: 8 Wochen

CPVC, 100Ω Platinum RTD, 4.6 (15') cable with BNC connector

PHEH-65-20
€122,39
Lieferzeit: 1 Woche

CPVC, 6 m (20') cable with BNC connector

PHEH-65-20-PT100
€291,53
Lieferzeit: 8 Wochen

CPVC, 100Ω Platinum RTD, 6 m (20') cable with BNC connector

PHEH-65-20-PT1K
€291,53
Lieferzeit: 9 Wochen

CPVC, 1000Ω Platinum RTD, 6 m (20') cable with BNC connector

PHEH-65-20-R3K
€291,53
Lieferzeit: 9 Wochen

CPVC, 3000Ω Balco, 6 m (20') cable with BNC connector

PHEH-65-25
€138,55
Lieferzeit: 8 Wochen

CPVC, 7.6 m (25') cable with BNC connector

PHEH-65-25-PT100
€305,59
Lieferzeit: 9 Wochen

CPVC, 100Ω Platinum RTD, 7.6 m (25') cable with BNC connector

PHEH-65-25-PT1K
€305,59
Lieferzeit: 8 Wochen

CPVC, 1000Ω Platinum RTD, 7.6 m (25') cable with BNC connector

PHEH-65-30
€133,00
Lieferzeit: 8 Wochen

CPVC, 9 m (30') cable with BNC connector
Click to expand/minimize a list of what others bought with thePHEH-65-30-PT100
PHEH-65-30-PT100
€318,38
Lieferzeit: 8 Wochen

CPVC, 100Ω Platinum RTD, 9 m (30') cable with BNC connector

PHEH-65-30-PT1K
€318,38
Lieferzeit: 8 Wochen

CPVC, 1000Ω Platinum RTD, 9 m (30') cable with BNC connector

PHEH-65-33
€354,18
Lieferzeit: 9 Wochen

CPVC, 10 m (33') cable with BNC connector

PHEH-65-33-PT100
€326,04
Lieferzeit: 9 Wochen

CPVC, 100Ω Platinum RTD, 10 m (33') cable with BNC connector

PHEH-65-35
€186,69
Lieferzeit: 9 Wochen

CPVC, 10.6 (35') cable with BNC connector

PHEH-65-35-PT100
€332,44
Lieferzeit: 9 Wochen

CPVC, 100Ω Platinum RTD, 10.6 m (35') cable with BNC connector

PHEH-65-40
€162,39
Lieferzeit: 9 Wochen

CPVC, 12 m (40') cable with BNC connector

PHEH-65-40-PT100
€345,22
Lieferzeit: 8 Wochen

CPVC, 100Ω Platinum RTD, 12 m (40') cable with BNC connector

PHEH-65-40-PT1K
€379,75
Lieferzeit: 8 Wochen

CPVC, 1000Ω Platinum RTD, 12 m (40') cable with BNC connector

PHEH-65-45
€213,52
Lieferzeit: 9 Wochen

CPVC, 13.7 m (45') cable with BNC connector

PHEH-65-45-PT100
€393,81
Lieferzeit: 8 Wochen

CPVC, 100Ω Platinum RTD, 13.7 m (45') cable with BNC connector

PHEH-65-50
€175,82
Lieferzeit: 8 Wochen

CPVC, 15.2 m (50') cable with BNC connector

PHEH-65-50-PT100
€377,19
Lieferzeit: 8 Wochen

CPVC, 100Ω Platinum RTD, 15.2 m (50') cable with BNC connector

PHEH-65-50-PT1K
€377,18
Lieferzeit: 8 Wochen

CPVC, 1000Ω Platinum RTD, 15.2 m (50') cable with BNC connector

PHEH-65-65-PT1K
€506,32
Lieferzeit: 9 Wochen

CPVC, 1000Ω Platinum RTD, 19.8 m (65') cable with BNC connector
PVDF Assemblies for PVDF Electrodes

PHEH-65K-10
€208,43
Lieferzeit: 9 Wochen

PVDF, 3 m (10') cable with BNC connector

PHEH-65K-10-PT100
€400,84
Lieferzeit: 8 Wochen

PVDF, 100Ω Platinum RTD, with 3 m (10') cable with BNC connector

PHEH-65K-10-PT1K
€364,41
Lieferzeit: 9 Wochen

PVDF, 1000Ω Platinum RTD, with 3 m (10') cable with BNC connector

PHEH-65K-10-R3K
€364,39
Lieferzeit: 9 Wochen

PVDF, 3000Ω Balco, with 3 m (10') cable with BNC connector

PHEH-65K-50 FT
€431,82
Lieferzeit: 9 Wochen

PVDF, 15.2 m (50') cable with BNC connector

PHEH-65K-50-PT100
€567,89
Lieferzeit: 9 Wochen

PVDF, 100Ω Platinum RTD, with 15.2 m (50') cable with BNC connector
Accessories
Click to expand/minimize a list of what others bought with thePHA-10
PHA-10
€16,67
Lieferzeit: 1 Woche

pH 10 buffer solution, 500 ml (1 pt)
Click to expand/minimize a list of what others bought with thePHA-10-GAL
PHA-10-GAL
€41,61
Lieferzeit: 1 Woche

pH 10 buffer solution, 4L (1 gal)
Click to expand/minimize a list of what others bought with thePHA-4
PHA-4
€16,67
Lieferzeit: ab Lager

pH 4 buffer solution, 500 ml (1 pt)
Click to expand/minimize a list of what others bought with thePHA-4-GAL
PHA-4-GAL
€41,61
Lieferzeit: 1 Woche

pH 4 buffer solution, 4L (1 gal)
Click to expand/minimize a list of what others bought with thePHA-7
PHA-7
€16,67
Lieferzeit: ab Lager

pH 7 buffer solution, 500 ml (1 pt)
Click to expand/minimize a list of what others bought with thePHA-7-GAL
PHA-7-GAL
€41,61
Lieferzeit: ab Lager

pH 7 buffer solution, 4L (1 gal)
Click to expand/minimize a list of what others bought with thePHA-DI
PHA-DI
€19,70
Lieferzeit: 1 Woche

De-ionized water, 500 ml (1 pt)
Click to expand/minimize a list of what others bought with thePHA-DI-GAL
PHA-DI-GAL
€49,25
Lieferzeit: 1 Woche

De-ionized water, 4L (1 gal)

PHAB-DI
€44,66
Lieferzeit: 3 Wochen

20 single-use foil packets of de-ionized water
Click to expand/minimize a list of what others bought with thePHAB-PH
PHAB-PH
€44,66
Lieferzeit: 1 Woche

5 each single-use foil packets of pH-4, pH-7, pH-10, and de-ionized water
*Alle Preisangaben in Euro.
 Anmerkung: Comes complete with Electrode Care Instruction Sheet.

NOTE: Temperature compensation is not required with ORP electrodes.

Order electrode and mounting assemblies separately. Materials of construction must be the same.

Mounting Assemblies come with 3 m (10') cable with BNC connector.

For non-standard cable lengths up to 15 m (50') replace the suffix "-10" in the mounting assembly model number with the desired length in feet, add $2 per foot to the price. (Additional cost of $2.00 per foot applies to the entire length of non-standared cable).

Note: At the time of initial purchase, please order both electrode and mounting assembly. Mounting assembly includes insertion assembly and cable. If ordered with automatic temperature compensation (ATC), the temperature compensator is built into the insertion assembly. When electrode has expired, simply re-order electrode.


 Ordering Example: (1) PHE-6511 Submersion pH Electrode CPVC, Max. temp. 65°C, €394,28  plus (1) PHEH-65-10 CPVC without Automatic Temperature Compensation with 3 metres of cable, €101,22, €394,28 + 101,22 = €495,50

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen
Optionsbeschreibungen:


(1) Type Wählen Sie:
65 für CPVC
65K für PVDF (Kynar)

(2) ATC Sensor Wählen Sie:
Keine (Feld leer lassen)
-PT100 für 100 ohm platinum RTD
-PT1K für 1000 ohm platinum RTD
-R3K für 3000 ohm Balco
-300 für 300 ohm Thermistor
-TH700 für 700 Series Thermistor
Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
