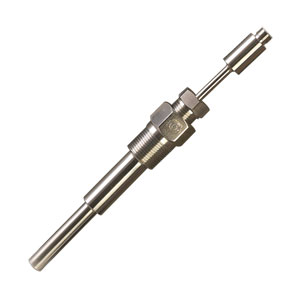

Spring Loaded RTD | Vibration Resistant with M12 Connector for use in Thermowells

PR-21SL-M12 Series

Spring Loaded RTD | Vibration Resistant, with M12 Connector | OMEGA Engineering | PR-21SL-M12 Series

€159,72 PR-21SL-3-100-A-0600-M12-1

ZUR BESTELLTABELLE
  • M12 Connectors for Easy Assembly, No Tools Required. An M12 Extension Cable is Required for Installation.
  • Spring Loaded RTD Probes for Use in Thermowells, Insures Proper Tip Contact with Thermowell and Maximum Performance
  • 4-Wire Class A PT100 RTDs, Can Be Used in Any 2, 3 or 4-Wire Application for Maximum Flexibility
  • Fits All Standard 0.260" Bore Thermowells (Note: Thermowell Not Included)
  • Probe Length = Thermowell Stem Length for Easy Selection (See Figure Below)
  • Adjustable Self Gripping Spring Allows For Use in Shorter Thermowells
  • Can Be Combined With a Selection of Programmable and Fixed Range Transmitters
Sensoren und Messumformer - Verwandte Produkte anzeigen

Beschreibung

Note: These Sensors Require an M12 Extension Cable to Connect the Sensor To Your Instrumentation. A Partial List Of Our M12 Extension Cables is Included in the Ordering Table Below.

Our RTD sensors with M12 connections provide for easy and efficient installation or removal of these sensors for preriodic calibration, troubleshooting or replacement. Gone are the days of having to pull extension cables from cable trays in order to calibrate or replace the sensor, now you simply disconnect the sensor from the extension cable saving cost and downtime. The Series PR-21SL Spring Loaded RTD has been designed to provide our customers with a simple, effective way to adapt our M12 enabled RTD probes for use in thermowells. To insure the best possible performance, the PR-21SL RTD has a spring loading feature that maintains contact between the probe and thermowell under static and vibration conditions. This helps to maintain heat transfer between the thermowell and probe, as well as dampening the effect of vibration on the sensor. With a demonstrated ability to withstand 10gs of vibration between 10 and 500HZ (for 6" long and shorter probes per MIL-STD-202G, Method 204D, Test Condition A), this probe has shown its ability to withstand real-world conditions.

To select the right length probe for your application, simply measure the depth of the bore in the thermowell (the length from the top of the thermowell to the bottom of the bore as shown as the “Thermowell Stem Length” in the sketch below).



The PR-21SL sensor assembly is designed to fit into a thermowell with a stem length equal to that specified in the model number. Simply slide the sensor assembly into the thermowell until bottomed and then compress the spring while making the 1/2NPT connection. Thread sealant tape or thread compound may be used on the 1/2NPT mounting thread to insure easy removal at a later time. The position of the self-gripping spring can also be adjusted so that the sensor can be used in a shorter thermowell, simply twist the spring while sliding it along the probe stem until the needed position is reached.

The PR-21SL can also be used as a back-up sensor for a variety of applications. The spring loading feature can be adjusted to fit a variety of thermowells. The spring loading fitting can be removed altogether and replaced with a compression type fitting if a fixed mounting is needed. The probe (less spring and hex fitting) can also be used with one of Omega's M12-Handle accessories to turn your spring loaded probe into a hand-held probe. This flexibility in mounting options, as well as the simplified and robust connection provided by the M12 connector, makes the PR-21SL the perfect solution for a wide variety of applications.

These RTD sensors can be used in any 2, 3 or 4-wire application by selecting one of the two available wiring arrangements (see the wiring diagrams below) and using only those wires needed for your connection. This allows for simplified, trouble free installation with any existing application. This also allows the PR-21 series sensor to be used for a wide variety of replacement applications since it can be connected as-is with just about any measurement or control equipment available.


  • Standard Probe Diameter: 1/4"

  • Standard Probe Lengths: See Thermowell Stem Lengths in The Order Table Below.

  • Sensor: Pt100 (100 Ohms at 0°C, .00385 TCR (alpha)) Standard, Pt1000 and Other Options Available.

  • Accuracy: Class A Standard (per IEC 60751), Others Available Upon Request.

  • Temperature Range: -50 to 250°C Except for the Connector Which is 85°C Max.

  • Insulation Resistance: 100 Megohms Minimum at 100VDC at Room Ambient Temperature.

  • Vibration Resistance: 10gs from 10-500Hz per MIL-STD-202G, Method 204D, Test Condition A.


    •
    Bestellangaben (Bitte Modellnummer angeben)

    Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

    Artikelnummer/Beschr.
    Stk
    Beschreibung

    PR-21SL-3-100-A-0250-M12-1
    €148,20
    Lieferzeit: 1 Woche

    Spring Loaded RTD Sensor to Fit Thermowells with a Stem Length of 2.5" or Less.
    Click to expand/minimize a list of what others bought with thePR-21SL-3-100-A-0400-M12-1
    PR-21SL-3-100-A-0400-M12-1
    €143,38
    Lieferzeit: 1 Woche

    Spring Loaded RTD Sensor to Fit Thermowells with a Stem Length of 4" or Less.

    PR-21SL-3-100-A-0600-M12-1
    €159,72
    Lieferzeit: 1 Woche

    Spring Loaded RTD Sensor to Fit Thermowells with a Stem Length of 6" or Less.

    PR-21SL-3-100-A-0900-M12-1
    €164,65
    Lieferzeit: 1 Woche

    Spring Loaded RTD Sensor to Fit Thermowells with a Stem Length of 9" or Less.

    PR-21SL-3-100-A-1200-M12-1
    €160,52
    Lieferzeit: 1 Woche

    Spring Loaded RTD Sensor to Fit Thermowells with a Stem Length of 12" or Less.

    PR-21SL-3-100-A-1500-M12-1
    €173,60
    Lieferzeit: 5 Wochen

    Spring Loaded RTD Sensor to Fit Thermowells with a Stem Length of 15" or Less.

    PR-21SL-3-100-A-1800-M12-1
    €181,96
    Lieferzeit: 5 Wochen

    Spring Loaded RTD Sensor to Fit Thermowells with a Stem Length of 18" or Less.
    Click to expand/minimize a list of what others bought with thePR-21SL-3-100-A-2400-M12-1
    PR-21SL-3-100-A-2400-M12-1
    €191,82
    Lieferzeit: 5 Wochen

    Spring Loaded RTD Sensor to Fit Thermowells with a Stem Length of 24" or Less.
    Accessories

    TX-M12-RTD-C
    Consult Sales
    Lieferzeit:


    Miniature Programmable Temperature Transmitter (4 to 20mA Output) with M12 Connections (Wiring Option 2 Probes)
    Click to expand/minimize a list of what others bought with theTX-M12-RTD-C-1
    TX-M12-RTD-C-1
    Consult Sales
    Lieferzeit:


    Miniature Programmable Temperature Transmitter (4 to 20mA Output) with M12 Connections (Wiring Option 1 Probes)

    TX-M12-RTD-V
    Consult Sales
    Lieferzeit:


    Miniature Programmable Temperature Transmitter (0 to 10VDC Output) with M12 Connections (Wiring Option 2 Probes)

    TX-M12-RTD-V-1
    Consult Sales
    Lieferzeit:


    Miniature Programmable Temperature Transmitter (0 to 10VDC Output) with M12 Connections (Wiring Option 1 Probes)

    M12TX-Pt100
    €117,81
    Lieferzeit: 1 Woche

    Over Molded Programmable Transmitter with 3-20mA Output and M12 Connections (for use with -2 wiring option only)
    Click to expand/minimize a list of what others bought with theM12C-PVC-4-S-F-5
    M12C-PVC-4-S-F-5
    €23,54
    Lieferzeit: 1 Woche

    M12 Extension Cable, 4 Wire PVC Cable, Straight Socket Connector One End and Flying Leads the Other, 5 meters long
    Click to expand/minimize a list of what others bought with theM12C-PVC-4-R-F-5
    M12C-PVC-4-R-F-5
    €23,54
    Lieferzeit: 1 Woche

    M12 Extension Cable, 4 Wire PVC Cable, Right Angled Socket Connector One End and Flying Leads the Other, 5 meters long
    Click to expand/minimize a list of what others bought with theM12C-PUR-4-S-F-2
    M12C-PUR-4-S-F-2
    €19,99
    Lieferzeit: 1 Woche

    M12 Extension Cable, 4 Wire Polyurethane Cable, Straight Socket Connector One End and Flying Leads the Other, 2 meters long
    Click to expand/minimize a list of what others bought with theM12C-PUR-4-S-F-5
    M12C-PUR-4-S-F-5
    €24,47
    Lieferzeit: 1 Woche

    M12 Extension Cable, 4 Wire Polyurethane Cable, Straight Socket Connector One End and Flying Leads the Other, 5 meters long

    M12CM-T24SSPC-RF-5
    €79,74
    Lieferzeit: ab Lager

    5 meter (16.4 foot) Long FEP Cable with a Right Angled Female Over Molded LCP Connector and Stripped Leads

    M12CM-T24SSPC-RF-10
    €107,52
    Lieferzeit: 6 Wochen

    10 meter (33 foot) Long FEP Cable with a Right Angled Female Over Molded LCP Connector and Stripped Leads

    M12CM-T24SSPC-SF-10
    €107,52
    Lieferzeit: 6 Wochen

    10 meter (33 foot) Long FEP Cable with a Straight Female Over Molded LCP Connector and Stripped Leads

    M12CM-T24SSPC-SF-15
    €127,59
    Lieferzeit: 6 Wochen

    15 meter (49 foot) Long FEP Cable with a Straight Female Over Molded LCP Connector and Stripped Leads

    M12CM-T24SSPC-SF-20
    €154,70
    Lieferzeit: 6 Wochen

    20 meter (65.6 foot) Long FEP Cable with a Straight Female Over Molded LCP Connector and Stripped Leads

    M12-Handle-A
    €98,15
    Lieferzeit: 4 Wochen

    Handle Accessory
    Click to expand/minimize a list of what others bought with the1/2-260S-U21/2-304SS
    1/2-260S-U21/2-304SS
    €45,31
    Lieferzeit: 1 Woche

    304SS Thermowell, 1/2NPT Mounting Thread, Stem Length 4"
    Click to expand/minimize a list of what others bought with the1/2-260S-U41/2-304SS
    1/2-260S-U41/2-304SS
    €58,98
    Lieferzeit: 1 Woche

    304SS Thermowell, 1/2NPT Mounting Thread, Stem Length 6"
    Click to expand/minimize a list of what others bought with the1/2-260S-U71/2-304SS
    1/2-260S-U71/2-304SS
    €89,05
    Lieferzeit: 1 Woche

    304SS Thermowell, 1/2NPT Mounting Thread, Stem Length 9"
    Click to expand/minimize a list of what others bought with the1/2-260S-U101/2-304SS
    1/2-260S-U101/2-304SS
    €107,03
    Lieferzeit: 1 Woche

    304SS Thermowell, 1/2NPT Mounting Thread, Stem Length 12"
    *Alle Preisangaben in Euro.
     Anmerkung:
  • For the alternate wiring arriangement (see Wiring Figure Above), change "-1" at the end of the model number to "-2" at the same price.
  • For a probe length not listed up to 24", change the stem length in the model number to the required stem length (example: 1250 = 12-1/2") and use the price from the next longer sensor.

    •  Ordering Example: (1) PR-21SL-3-100-A-0600-M12-1 PT100 RTD with M12 Plug Connection, With Spring Loading Fitting to Fit a Thermowell with a Stem Length of 6 Inches (Thermowell not included)., €159,72  plus (1) PR-21SL-3-100-A-1200-M12-1 PT100 RTD with M12 Plug Connection, With Spring Loading Fitting to Fit a Thermowell with a Stem Length of 12 Inches (Thermowell not included)., €160,52, €159,72 + 160,52 = €320,24

    Modellkonfigurator

    Stellen Sie Ihre Modellnummer zusammen
    Optionsbeschreibungen:


    (1) Length Wählen Sie:
    -0250 für 2 1/2in. Stem Length
    -0400 für 4in. Stem Length
    -0600 für 6in. Stem Length
    -0900 für 9in. Stem Length
    -1200 für 12in. Stem Length
    -1500 für 15in. Stem Length
    -1800 für 18in. Stem Length
    -2400 für 24in. Stem Length

    (2) Wiring Orientation Wählen Sie:
    -1 für Standard Wiring (See Diagram)
    -2 für Optional Wiring (See Diagram)
    Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
