Economical Brass Pressure Switches

PSW-190

^€179,82 PSW-191

ZUR BESTELLTABELLE

Available Buna-N or FKM O-ring
Contacts Rated for 5 Amps at 250 Vac or 30 Vdc
Pigtail Lead with Conduit Connection
High Operating Pressure

Druckschalter - Verwandte Produkte anzeigen

Beschreibung

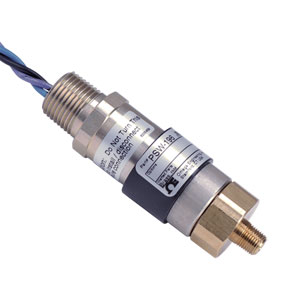

The PSW-190 cylindrical pressure switch has an epoxy-sealed electrical termination. This rugged design enables the switch to withstand harsh environments.

SPECIFICATIONS
Switch: SPDT, 5 amps at 250 Vac or 30 Vdc gold clad silver contacts for loads down to 5 mA at 6 Vdc, 2 mA at 12 Vdc and 1 mA at 24 Vdc
Operating Ambient Range:
   Buna-N construction: -20 to 75°C (-4 to167°F)
    FKM construction -20 to 80°C (-4 to 176°F)
Media Temp:
   Buna-N construction: 70°C (158°F)
    FKM construction 120°C (248°F)
Wetted Parts: Brass, O-ring and diaphragm
Repeatability:
   PSW-191, 192, 195 and 196: ±1%
   PSW-193, 194, 197 and 198: ±1.5%
Shock: Setpoint repeats after 50 g's 10 msec duration
Vibration: Setpoint repeats after 10 g's, 5-500 cps
Enclosure and Cover: Aluminum with irridite finish rated for 100 hr salt spray; potted and gasketed for outdoor use
Pressure Connection:
   PSW-191, 192, 195 and 196: 1/8 NPT
   PSW-193, 194, 197 and 198: 1/4 NPT
Weight: 128 g (4.5 oz)

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

PSW-191

€179,82

Lieferzeit: 4 Wochen

Pressure switch with 10-150 psi range and Buna-N diaphragm and O-ring

PSW-192

€179,82

Lieferzeit: 1 Woche

Pressure switch with 30-600 psi range and Buna-N diaphragm and O-ring

PSW-193

€179,82

Lieferzeit: 4 Wochen

Pressure switch with 100-1500 psi range and Buna-N diaphragm and O-ring

PSW-194

€173,38

Lieferzeit: 4 Wochen

Pressure switch with 180-3000 psi range and Buna-N diaphragm and O-ring

PSW-195

€195,06

Lieferzeit: 5 Wochen

Pressure switch with 11-150 psi range and FKM diaphragm and O-ring

PSW-196

€181,79

Lieferzeit: 4 Wochen

Pressure switch with 33-600 psi range and FKM diaphragm and O-ring

PSW-197

€187,65

Lieferzeit: 1 Woche

Pressure switch with 110-1500 psi range and FKM diaphragm and O-ring

PSW-198

€181,41

Lieferzeit: 1 Woche

Pressure switch with 198-3000 psi range and FKM diaphragm and O-ring

*Alle Preisangaben in Euro.
