Compact Programmable Timer - Discontinued

PTC-14

Compact Programmable Timer

ZUR BESTELLTABELLE

9 Programmable Modes
6 Timing Ranges
Security Code
2- or 1-Time plus 1 Instantaneous Contact
Programmable Reset Function
External Hold and Reset
IP65 Water and Dust Protection
LED Status and Timing Indicators
RoHS Compliant

Beschreibung

The PTC-14 has been discontinued. A replacement product will be available soon. For details, please contact us and ask about the PTC-14-A replacement.

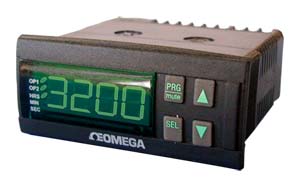

The PTC-14 programmable timer, packaged in a compact 75 x 33 x 69 mm housing, is an extremely versatile product offering nine operating modes applied to two timed output relay contacts. When only one of the timers is being used, the other output acts as a set of instantaneous changeover contacts. The single model provides timing from 0.1 seconds to 100 hours.

**Specifications**
Timing Ranges: 0 to 999.9 sec, 0 to 9999 sec, 0 to 9999 min, 0 to 99 min 59 sec, 0 to 99 hr 59 min, 23:59 in 24 hr clock mode Timing Modes: DE, DDE, DP, CCT, DE-2, IT-2, DE-IT, DD-2, 24-hour clock Supply Voltage: 12 to 24 Vac/Vdc Supply Variation:±10% of supply voltage Battery Backup:External 3 Vdc to retain clock on 24 hr mode only at loss of supply voltage Power Drain: 3 Va max Contact Ratings: OP1: 8 A @ 240 Vac, SPDT OP2: 5 A @ 240 Vac resistive, SPST Reset Time:100 msec max Ambient Conditions Working Temp:0 to 50°C Storage Temp:0 to 70°C Approvals: Complies with CE directives EN50081-1 and EN50082-1 for EMC and EN61010-1 for low voltage Weight: 140 g		Timing Modes

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

PTC-14

Consult Sales

Lieferzeit:

Programmable timer, 12-24Vac/dc powered
