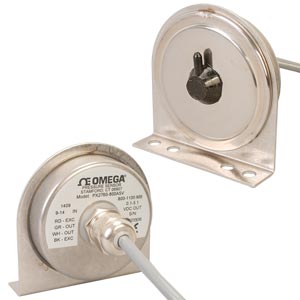

Economical Barometric Pressure Transducer

PX2760

^€649,56 PX2760-600A5V

ZUR BESTELLTABELLE

Rugged Capacitive Design
Excellent Long Term Stability
Fast Response Time
Small Size with Integral Mounting Bracket
Instant Warm-up

Druckaufnehmer / Drucktransmitter - Verwandte Produkte anzeigen

Beschreibung

OMEGA’s PX2760 Series barometric pressure transducers use a capacitive sensor that has excellent thermal stability and low hysteresis. The signal is processed through a custom ASIC, ensuring long-term reliability and accuracy. The amplified 0.1 to 5.1 Vdc output makes these transducers compatible with most process controllers and computer interface equipment and is virtually immune to EMI and RFI.

SPECIFICATIONS
Excitation: 12 Vdc (9 to 14.5 Vdc max)
Power Consumption: <0.2 W
Output Impedance: <5 Ù
Output: 0.1 to 5.1 Vdc, 3-wire
Accuracy: ±0.25% span RSS at constant temperature (includes linearity, repeatability and hysteresis)
Resolution: Infinite, limited only by noise level (0.005% FS)
Response Time: <10 ms to reach 90%
Long-Term Stability: ±0.25% FS over 6 months @ 70°F
Operating Temperature Range: -20 to 80°C (-4 to 176°F) Compensated Temperature Range: 0 to 55°C (32 to 131°F)
Storage Temperature: -55 to 120°C (-67 to 248°F)
Thermal Zero Effect: ±0.01%/°F span
Thermal Span Effect: ±0.01%/°F span
Pressure Ratings: Range Max Pressure 600 to 1100 mbar 20 psia (450 to 825 mmHg) 800 to 1100 mbar 20 psia (600 to 825 mmHg) 0 to 20 30 psia (0 to 1034 mmHg)
Sensor: Capacitive
Shock: 50 g operating, 1/2 sine 10 ms
Vibration: 2 g from 5 to 500 Hz
Acceleration: 10 g maximum
Media: Dry or non-condensing gases compatible with wetted parts
Wetted Parts: Stainless steel, alumina, gold and elastomer
Pressure Port: 1.8" tube fitting
Electrical Connection: 0.6 m (2') cable

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

PX2760-600A5V

€649,56

Lieferzeit: 6 Wochen

voltage output barometric pressure transducer with 600 to 1100 mbar absolute range

PX2760-800A5V

€635,91

Lieferzeit: 3 Wochen

voltage output barometric pressure transducer with 800 to 1100 mbar absolute range

PX2760-20A5V

€630,64

Lieferzeit: 6 Wochen

voltage output barometric pressure transducer with 0 to 20 psi absolute range

*Alle Preisangaben in Euro.
Anmerkung: All models come with complete operator’s manual.
