Diffused Semiconductor Pressure Transducer
Rugged Aerospace Design

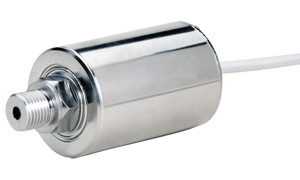

PX6000-5V

Diffused Semiconductor Pressure Transducer

ZUR BESTELLTABELLE

High Reliability
Long Term Stability
All Stainless Steel Case
Vacuum Range Available
5 Point NIST Calibration Certificate Included

Druckaufnehmer / Drucktransmitter - Verwandte Produkte anzeigen

Beschreibung

OMEGA’s PX6000 pressure transducer fits easily into your application. This low-cost transducer is small and light, and mounting requires no bulky structures.You select from 3 electrical terminations and 6 pressure fittings. The sensor is a small [about 2.5 mm (0.1")] square silicon chip with 4 diffused strain gages, mounted in the stainless steel case. Laser-trimmed resistors provide temperature compensation and adjust zero balance and span. The 0 to 5 Vdc output is compatible with most control and data acquisition systems.

The PX6000 Series uses solid state media isolation for improved reliability. Thin films of chemically inert materials are deposited or grown on the chip surface to provide electrical isolation between the sensor and the pressure medium. The sensor is less sensitive to vibration and more dependable in high-shock environments because the films add no significant mass. Corrosion resistance is outstanding, and the isolation will remain effective because there is no gel or oil column to deteriorate.

The PX6000 is also available in metric configurations, with G1/4 or G1/8 ports, and models from 0-1 to 0-25 bar pressure ranges. Please see the PXM6000 for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
Excitation: 12 to 40 Vdc unregulated
Output: 0 to 5 Vdc ±0.1 Vdc adjustable ±10% FSO
Input Current: 15 mA max with no load
Output Resistance: Less than 200 Ω
Zero Balance: 0V ±0.1 Vdc Adjustable ±5% FSO
Dielectric Isolation Resistance: 100 MΩ minimum at 45 Vdc applied between the case or a conductive medium and the bridge circuit
Sensing Element: 4-active-arm bridge using a micro-machined diffused silicon diaphragm sensor, thin-film media and dielectric isolation barriers
Temperature Sensor: 900 to 1500 Ω Output resistance @ 24°C (75°F)
Temperature Coefficient: 8% min, 10% max per 55.5°C (100°F)
Accuracy: ±0.25% FSO for all ranges (Combined linearity, hysteresis and repeatability)
Operational Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: -18 to 82°C (0 to 180°F)
Thermal Effects:
   Span: ±0.03% FSO/°F (0.054%/°C)
   Zero: ±0.03% FSO/°F (0.054%/°C)
Vibration Sensitivity: At 20 g peak sinusoidal vibration from 10 Hz to 2000 Hz (1/2" D.A.), the output shall not exceed 0.04% FSO/g for 1 bar (15 psi) range to 0.005% FSO/g for 7 bar (100 psi) and above
Natural Frequency: Greater than 35 kHz for 7 bar (100 psi) and above
Shock: 100 g, 11 ms half sine wave without damage
Proof Pressure: 2 times rated pressure will not cause changes in performance beyond the specified tolerances
Burst Pressure: 3 times rated pressure for pressure ranges below 14 bar (200 psi), or 2.5 times rated pressure for pressure ranges above 14 bar (200) psi will not cause rupture of the pressure sensor
Wetted Parts: 316 stainless steel, silicon, Pyrex® glass, epoxy, Kovar®
Electrical Connection:
   Style "0": 0.6 m (2 ft) cable
   Style "1": PTIH-10-6P connector
   Style "3": 4-pin eyelet header
   Style "6": mini DIN connector
Pressure Port:
   Style "A": 1/8-27 NPT, male
   Style "B": 1/8-27 NPT, female
   Style "C": 1/4-18 NPT, male, standard
   Style "D": 1/4-18 NPT, female
   Style "L": MS33656-4, male
   Style "M": MS33649-4, female
Weight: 170 g (6 oz) typical
Mating Connector (Style 1): PTS06A-10-6S (sold separately)
For special options consult Sales or Pressure Engineering.

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Models with 1/4 NPT Pressure Port

PX6000C1-30VAC5T

Consult Sales

Lieferzeit:

30 to 0 (in Hg) Vacuum range transducer with 0-5 Vdc output

PX6000C1-015A5T

Consult Sales

Lieferzeit:

0-15 psi Absolute Pressure transducer with 0-5 Vdc output

PX6000C1-020A5T

Consult Sales

Lieferzeit:

0-20 psi Absolute Pressure transducer with 0-5 Vdc output

PX6000C1-050A5T

Consult Sales

Lieferzeit:

0-50 psi Absolute Pressure transducer with 0-5 Vdc output

PX6000L1-100A5T

Consult Sales

Lieferzeit:

0-100 psi Absolute Pressure transducer with 0-5 Vdc output

PX6000C1-200A5T

Consult Sales

Lieferzeit:

0-200 psi Absolute Pressure transducer with 0-5 Vdc output

PX6000C1-300A5T

Consult Sales

Lieferzeit:

0-300 psi Absolute Pressure transducer with 0-5 Vdc output

PX6000C1-015G5T

Consult Sales

Lieferzeit:

0-15 psi Gage Pressure transducer with 0-5 Vdc output

PX6000C1-020G5T

Consult Sales

Lieferzeit:

0-20 psi Gage Pressure transducer with 0-5 Vdc output

PX6000C1-050G5T

Consult Sales

Lieferzeit:

0-50 psi Gage Pressure transducer with 0-5 Vdc output

PX6000C1-100G5T

Consult Sales

Lieferzeit:

0-100 psi Gage Pressure transducer with 0-5 Vdc output

PX6000C1-200G5T

Consult Sales

Lieferzeit:

0-200 psi Gage Pressure transducer with 0-5 Vdc output

PX6000C1-300G5T

Consult Sales

Lieferzeit:

0-300 psi Gage Pressure transducer with 0-5 Vdc output

Accessories

PTS06A-10-6S

Consult Sales

Lieferzeit:

Mating connector (sold separately)

*Alle Preisangaben in Euro.
Anmerkung: Metric Ranges Available - Consult Engineering
Ordering Example: (1) PT06F10-6S mating connector (sold separately), €40,78

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)	(2)		(3)	(4)	(5)	(6)
PX6000			-

Optionsbeschreibungen:

(1) Pressure Port Wählen Sie:
L für MS33656-4 Male
M für MS33649-4 Female
A für 1/8-27 NPT Male
B für 1/8-27 NPT Female
C für 1/4-18 NPT Male
D für 1/4-18 NPT Female

(2) Electrical Connection Wählen Sie:
1 für PT1H-10-6P Connector or equal (no charge) (mating connector not included)
0 für 2' (6m) cable (std) +2$/ft over 2'
3 für 4-pin Eyelet Header (no charge)

(3) Range Wählen Sie:
30 für 30 to 0 in-Hg (Vacuum only)
015 für 0-15 psi
020 für 0-20 psi
050 für 0-50 psi
100 für 0-100 psi
200 für 0-200 psi
300 für 0-300 psi

(4) Units Wählen Sie:
VAC für Vacuum Model
G für Gage Model
A für Absolute Model

(5) Output Wählen Sie:
5T für 0 to 5 Vdc Output
V für mV/V Output
I für 4 to 20mA Output

(6) Options Wählen Sie:
für No Options
-CAL11 für 11 point NIST Calibration($250.00 extra)
-xxFT für Extra length of cable $2/ft over 3ft

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
