Industrial Wet/Wet Differential Pressure Transmitter, Measures Differentials on High Line Pressures

PX80-I-HEAD

ZUR BESTELLTABELLE

Low Differential Pressure at High Line Pressure - up to 5,000 psi
All Stainless Steel Construction
Hermetically Sealed for Harsh Environments
High Overpressure Capability
Rugged Lightening Protected Amplifier Housing
See Related Links Below for Cables and Accessories

Druckaufnehmer / Drucktransmitter - Verwandte Produkte anzeigen

Beschreibung

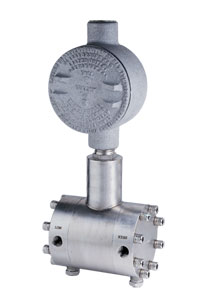

OMEGA’s PX80 Series is a heavy duty, wet-wet, differential pressure transmitter available in ranges from 1 to 5,000 psid. All stainless steel construction and high over pressure protection make the PX80 Series suitable for harsh industrial environments.

SPECIFICATIONS
mV/V Output
Electrical:
    Excitation: 10 Vdc (15 V max)
    Output: 2 mV/V nominal
Bridge Resistance: 350 Ω
Zero Balance: ±1% FSO
5 Vdc Output
Electrical:
    Excitation: 24 to 32 Vdc
    Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj 4 to 20 mA Output
Electrical:
    Excitation: 10 to 40 Vdc
    Output: 4 to 20 mA ±0.8 mA adj
Max Loop Resistance: (Input voltage . 12) x 50
Zero Balance: 4 mA ± 0.4 mA adj

COMMON SPECIFICATIONS
Performance:
    Linearity: ±0.25% FSO
    Hysteresis: ±0.10% FSO
    Repeatability: ±0.1% FSO
Environmental:
Operating Temp Range:
    mV/V: -73 to 163°C (-100 to 325°F)
    Amplified: -46 to 107°C (-50 to 225°F)
Compensated Temp Range:
    mV/V: 17 to 71°C (60 to 160°F)
Thermal Effects:
    Zero: 0.009% FSO/°C (mV and 5 V
    Zero: 0.013% FSO/°C (4 to 20 mA)
    Span: 0.009% rdg/°C
Pressure:
    Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
    Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port:
    1/4-18 NPTF: For .700 psi
    1/8-27 NPTF: For .1000 psi
Electrical Termination:
    Style 0 = 3 m (10') cable
    Style 1 = PTIH-10-6P (or equiv)
    Style 5 = Metal terminal box
    Style 6 = Micro DIN
Mating Connector:
    Style 1: PT06F-10-6S (not included)
    Style 6: Mating connector (included)
Weight: 5 lb

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

PX80D5-050DI

Consult Sales

Lieferzeit:

0-50 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80D5-100DI

Consult Sales

Lieferzeit:

0-100 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80D5-200DI

Consult Sales

Lieferzeit:

0-200 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80D5-300DI

Consult Sales

Lieferzeit:

0-300 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80D5-500DI

Consult Sales

Lieferzeit:

0-500 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80D5-700DI

Consult Sales

Lieferzeit:

0-700 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80B5-1KDI

Consult Sales

Lieferzeit:

0-1,000 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80B5-1.5KDI

Consult Sales

Lieferzeit:

0-1.500 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80B5-2KDI

Consult Sales

Lieferzeit:

0-2,000 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80B5-2.5KDI

Consult Sales

Lieferzeit:

0-2,500 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80B5-3KDI

Consult Sales

Lieferzeit:

0-3,000 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

PX80B5-5KDI

Consult Sales

Lieferzeit:

0-5,000 psi differential transmitter with a lightening protected amplifier housing, 1/8 -27 NPT female fitting

*Alle Preisangaben in Euro.
Anmerkung: Metric Ranges Available - Consult Engineering

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)		(2)
PX80		-		DI

Optionsbeschreibungen:

(1) Pressure Port Wählen Sie:
B5 für 1/8-27 NPT Female (1000 psid and over)
D5 für 1/4-18 NPT Female (700 psid and less)

(2) Range (psid) Wählen Sie:
030 für 0-30
050 für 0-50
100 für 0-100
200 für 0-200
300 für 0-300
500 für 0-500
700 für 0-700
1K für 0-1000
1.5K für 0-1500
2K für 0-2000
2.5K für 0-2500
3K für 0-3000
5K für 0-5000

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
