Industrial Wet/Wet Differential Pressure Transducer with High Over Pressure Capacity

PX80-MV

ZUR BESTELLTABELLE

Low Differential Pressure at High Line Pressure - up to 1,500 psi
FM Intrinsically Safe
All Stainless Steel Construction
Hermetically Sealed for Harsh Environments
High Overpressure Capability
High Operating Temperature

Druckaufnehmer / Drucktransmitter - Verwandte Produkte anzeigen

Beschreibung

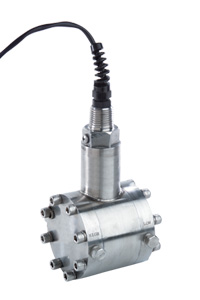

OMEGA’s PX80 is a heavy duty, wet/wet, differential pressure transducer available in ranges from ±1 to ±5000 psid. High over pressure capacity, high operating temperature and excellent temperature compensation make the PX80 an extremely accurate and reliable transducer. The all stainless steel and rugged construction allow it to withstand harsh industrial environments.

The PX80 is also available in metric configurations, with G1/8 or G1/4 ports, and models from 0-2 to 0-350 bar pressure ranges. Please see the PXM80 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output: 2 mV/V nominal
Bridge Resistance: 350 Ω
Zero Balance: ±1% FSO
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Operating Temp Range: -73 to 163°C (-100 to 325°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C
Span: 0.009% rdg/°C
Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port: See dimensional drawings on spec pages
Electrical Termination:
Style "0" = 3 m (10') cable
Style "1" = PTIH-10-6P (or equiv)
Style "6" = mini DIN
Mating Connector:
Style "1" = PT06F10-6S, sold separately
Style "6" = Mating connector (included)
Weight: 2.3 kg (5 lb)

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

PX80D1-030DV

Consult Sales

Lieferzeit:

±30 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-050DV

Consult Sales

Lieferzeit:

±50 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-100DV

Consult Sales

Lieferzeit:

±100 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-150DV

Consult Sales

Lieferzeit:

±150 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-200DV

Consult Sales

Lieferzeit:

±200 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-300DV

Consult Sales

Lieferzeit:

±300 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-500DV

Consult Sales

Lieferzeit:

±500 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-700DV

Consult Sales

Lieferzeit:

±700 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-1KDV

Consult Sales

Lieferzeit:

±1,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-1.5KDV

Consult Sales

Lieferzeit:

±1,500 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-2KDV

Consult Sales

Lieferzeit:

±2,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-2.5KDV

Consult Sales

Lieferzeit:

±2,500 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-3KDV

Consult Sales

Lieferzeit:

±3,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-5KDV

Consult Sales

Lieferzeit:

±5,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PT06F10-6S

€40,78

Lieferzeit: ab Lager

Mating connector (sold separately)

*Alle Preisangaben in Euro.
Anmerkung: Metric Ranges Available - Consult Engineering

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)	(2)		(3)	(4)	(5)
PX80			-

Optionsbeschreibungen:

(1) Pressure Port Wählen Sie:
B für 1/8-27 NPT Female (1000 psid and over)
D für 1/4-18 NPT Female (700 psid and less)

(2) Electrical Connection Wählen Sie:
0 für 10 ft PVC Cable
1 für PT1H-10-6P Connector or equal
5 für Lightning Protected Amplifier Housing (4-20 mA model only)

(3) Range (psid) Wählen Sie:
030 für 0-30
050 für 0-50
100 für 0-100
200 für 0-200
300 für 0-300
500 für 0-500
700 für 0-700
1K für 0-1000
1.5K für 0-1500
2K für 0-2000
2.5K für 0-2500
3K für 0-3000
5K für 0-5000

(4) Units Wählen Sie:
D für Differential Pressure

(5) Output Wählen Sie:
V für mV/V
5T für 0-5 Vdc
I für 4-20 mA

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
