PXCPC Series

PC Mountable Silicon Pressure Sensors

ZUR BESTELLTABELLE

Ranges from 4 inH₂O to 150 psi
Gauge, Absolute or Differential Pressure Versions Available
Temperature Compensated for Low Thermal Drift
Low Cost, Small Size, PC Board Mountable
Micromachined Silicon Technology
High Impedance, Low Current Draw
PC Mountable SIP 4-Pin Package
For Use with Clean Dry Gases

Druckaufnehmer / Drucktransmitter - Verwandte Produkte anzeigen

Beschreibung

The PXCPC series has been discontinued. Please see the PX26 series as a possible alternative or contact our Technical Sales department.

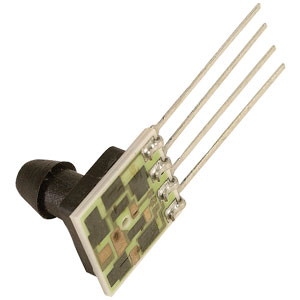

The PXCPC Series pressure sensors come standard with tube pressure ports and use stateof- the-art micromachined silicon technology to deliver accurate, stable pressure measurement in a miniature package. On sensors of 5 psi and above the high side of the silicon is protected by a silicone gel coating. The sensors are designed for use with non-corrosive non-ionic gases. Many industrial and research gases fall into this category.

SPECIFICATIONS
@ 12 Vdc, 25°C (77°F)
Excitation: 12 Vdc typical (3 Vdc minimum to 16 Vdc maximum)
Output mV (@ 12 Vdc) Range:
    4 inH₂O: 25 ±2 mV
    10 inH₂O: 20 ±1 mV
    1 psi: 18 ±1 mV
    5 psi: 60 ±1 mV
    15 to 60 psi: 90 ±5 mV
    100 psi: 100 ±5 mV
    150 psi: 90 ±5 mV
Linearity, Hysteresis Error: 0.25% typical 1% maximum
Operating Temperature: -25 to 85°C (-13 to 185°F)
Compensated Temperature: 0 to 70°C (32 to 158°F)
Thermal Effects
    Zero Shift: ±1.0 mV
    Span Shift: ±2.0% span
Input Impedance: 5 kΩ
Output Impedance: 3 kΩ
Over Pressure (Maximum)
    Absolute: The lesser of 3 x full scale or 250 psi
    Gauge/Diff:
      = 1 psi Range: 3 psi maximum
      >1 psi: The lesser of 3 x full scale of 250 psi
Common Mode Pressure: 50 psi maximum
Response Time: 1 ms
Weight: 2 g (0.06 oz)
