RTD Sensors Fluid Immersion High-Accuracy

RTD-810

RTD Sensors Fluid Immersion High-Accuracy | RTD-810

RTD Sensors Fluid Immersion High-Accuracy

€135,76 RTD-810

ZUR BESTELLTABELLE
  • Sensor Contains a Precision 100 Ohm Class A DIN Platinum Element
  • Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
  • 3-Wire Configuration with PFA Insulated and Jacketed Lead Wire and Miniature 3-Pin Connector with Mating Connector
  • Temperature Range -200 to 750ºC (Cable to 260ºC)
  • Sensor Includes a Stainless Steel Probe Stem and 1/8NPT Mounting Fitting
  • Mating Connector Sold Separately!

Beschreibung

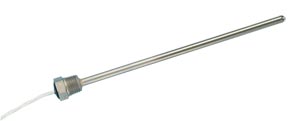

This immersion sensor has a closed ended stainless steel tube, 1/8NPT mounting fitting, 100 Ohm Class A DIN platinum element with PFA insulated & jacketed leads and miniature connector. Its rugged design is ideally suited for fluid measurements and pressurized systems where the sensor must mount into a threaded port. With a maximum temperature rating of 750ºC, this sensor can be used in a wide variety of applications. Combine the RTD-810 with any of the Omega extension cables, hand-held meters, controllers, displays or thermometers to form a complete measurement and control system.
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
RTD-810
€135,76
Lieferzeit: 7 Wochen

Stainless Steel closed end housing with 1/8 NPT process thread. Class A. 1m (40") PFA lead wire.
RTD-810-MTP
€156,06
Lieferzeit: 7 Wochen

Stainless Steel closed end housing with 1/8 NPT process thread. Class A. 1m (40") PFA lead wire with MTP Male connector
RTD-810-TA3F
€160,70
Lieferzeit: 7 Wochen

Stainless Steel closed end housing with 1/8 NPT process thread. Class A. 1m (40") PFA lead wire with Male Audio connector
Sold Separately, Mating Connector & clamp & other accessory Part Number
OTP-U-F
€12,86
Lieferzeit: ab Lager

Mating Connecter for OTP Termination End.
MTP-U-F
€5,42
Lieferzeit: ab Lager

Mating Connecter for MTP Termination End.
CN1A-RTD
€272,88
Lieferzeit: 1 Woche

1/16 DIN On-Off LCD Temperature Controller
DRF-RTD-115VAC-0/200C-4/20
Consult Sales
Lieferzeit:


RTD Input Signal Conditioner
DP460-RTD
Consult Sales
Lieferzeit:


Economical Temperature Meter
*Alle Preisangaben in Euro.
 Anmerkung: Terminations Available: Provided with standard miniature connector; for larger sized connector, add “-OTP” to model number and $7 to price; for audio connector, add “-TA3F” to model number and $17 to price. If ordering with a TA3F connector, please specify wiring arraingement.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
 Ordering Example: (1) RTD-810 100 Ohm Class A DIN Platinum RTD with Stainless Steel Probe and 1/8NPT Mounting Thread, 40, €135,76
