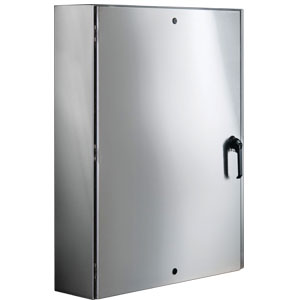

NEMA 4X 304 SS ELECTRICAL ENCLOSURE

SCE-ELSSLPPL Series

0.75" Thick 304 Stainless Steel
Seams Continuously Welded and Ground Smooth
Flange Trough Collar Around All Sides of Door Opening
Collar Studs Provided for Mounting Optional Sub-Panels
Mounting Holes in Back of the Enclosure for Wall Mounting
Mounting Hardware, Sealing Washers and Hole Plugs Included
Stainless Steel Concealed Hinges
Removable and Interchangeable Doors
Black Zinc Die Cast Keylocking/ Padlocking Handles
3-Point Latching Mechanism
Removable Print Pocket
Oil and Water Resistant Gasket
Ground Stud on Door and Body

Beschreibung

The SCE-ELSSLPPL Series of electrical enclosures are designed to house electrical and electronic controls, instruments and equipment in areas which may be regularly hosed down or are in very wet conditions. These stainless steel electrical cabinets provide protection from dust, dirt, oil and strong jets of water. This outdoor electrical control panel is the solution for weatherproof applications. For outdoor applications a drip shield is recommended.

SPECIFICATIONS
Industry Standards (IS6):
    NEMA: Type 3R, 4, 4X, 12 and Type 13
    UL Listed: Type 3R, 4, 4X and 12
    CSA: Type 4, 4X and 12
    IEC: 60529 IP66
Finish: #4 brushed finish on all exterior surfaces

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

SCE-24EL2010SSLPPL

€1.953,00

Lieferzeit: 3 Wochen

24H x 20W x 10D"

SCE-24EL2410SSLPPL

€2.216,00

Lieferzeit: 3 Wochen

24H x 24W x 10D"

SCE-30EL2412SSLPPL

€2.646,00

Lieferzeit: 3 Wochen

30H x 24W x 12D"

SCE-30EL3012SSLPPL

€2.959,00

Lieferzeit: 3 Wochen

30H x 30W x 12D"

SCE-36EL2412SSLPPL

€2.930,00

Lieferzeit: 3 Wochen

36H x 24W x 12D"

SCE-36EL3012SSLPPL

€3.320,00

Lieferzeit: 3 Wochen

36H x 30W x 12D"

SCE-42EL3612SSLPPL

€4.043,00

Lieferzeit: 5 Wochen

42H x 36W x 12D"

SCE-48EL3612SSLPPL

€4.462,00

Lieferzeit: 3 Wochen

48H x 36W x 12D"

SCE-60EL3612SSLPPL

€5.224,00

Lieferzeit: 3 Wochen

60H x 36W x 12D"

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with mounting hardware, sealing washers and hole plugs.
