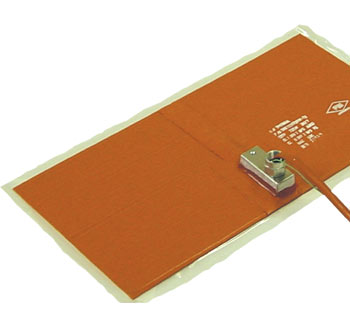

Heavy Duty Explosion Resistant Heating Blankets

SEPHB Series

^€371,68 SEPHB-612-180-120-T3

ZUR BESTELLTABELLE

Factory Mutual Hazardous Area Approval
Class I, Div 2, Groups A, B, C, and D; Class II, Div 2, Groups F and G
Integral Built-In High-Limit Thermal Cutout Prevents Temperature Runaway†
Optional Pressure Sensitive Adhesive Available
Moisture and Chemical Resistant
Maximum Exposure Temperature of 232°C (450°F)
APPLICATION
• Low-Temperature Ovens
• Process Vats and Dip Tanks
• Storage Tanks
• Hoppers, Dry Storage Bins, Coal Silos
• Conveyors

Flexible Heizsysteme - Verwandte Produkte anzeigen

Beschreibung

Find how Silicone heater elements work on this link or general information about industrial heater elements.

OMEGALUX™ silicone rubber heavy-duty heating blankets feature built-in high-limit thermal cutout protection, which, in the event of a primary temperature controller failure, maintains blanket sheath temperature below the minimum safe auto-ignition temperature of the material being heated or materials in the area. (“T Rating” in the National Electric Code, Section 500.)

OMEGALUX™ SEPHB Series blankets are flexible and readily conform to most plane and simple curved surfaces. Blankets are easy to install with optional factory applied pressure-sensitive adhesive, creating a permanent bond.

OMEGALUX™ SEPHB blankets are compatible with most chemical fluids and oils commonly encountered in field service. They are exceptionally resistant to weather, moisture, and effects of sunlight, and ozone gases, and they can be used in areas of high radioactivity.

SPECIFICATIONS
Wattage: 180, 360, 720 or 1440 W
Power: 120, 240 and 480 V (contact OMEGALUX™ for 480 V heaters)
Dielectric Strength: 2000 V
Watt Density: 2.5 W/in2

CAUTION AND WARNING! Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.

High-Limit Thermostat Temperature
T4A	70°C (158°F)
T3	145°C (292°F)

Volts	Watts	Dimensions: mm (in)	Model No.
120	180	152 x 305 (6 x 12)	SEPHB-612-180-120-*
240	180	152 x 305 (6 x 12)	SEPHB-612-180-240-*
120	360	152 x 610 (6 x 24)	SEPHB-624-360-120-*
240	360	152 x 610 (6 x 24)	SEPHB-624-360-240-*
120	360	305 x 305 (12 x 12)	SEPHB-1212-360-120-*
240	360	305 x 305 (12 x 12)	SEPHB-1212-360-240-*
120	720	305 x 610 (12 x 24)	SEPHB-1224-720-120-*
240	720	305 x 610 (12 x 24)	SEPHB-1224-720-240-*
120	1440	610 x 610 (24 x 24)	SEPHB-2424-1440-120-*
240	1440	610 x 610 (24 x 24)	SEPHB-2424-1440-240-*

*Alle Preisangaben in Euro.
Anmerkung: Article 501 of the NEC requires that the maximum sheath temperature of the heater shall not exceed 80 percent of the auto-ignition temperature of the surrounding atmosphere when heater is continuously energized.
Auto-Ignition Temperature: The minimum temperature required to initiate or cause selfsustained combustion of a solid, liquid or gas independently of the heating or heated element (see NFPA 325M, Fire Hazard Properties of Flammable Liquids, Gases and Volatile Solids).

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)		(2)		(3)		(4)
SEPHB-		-		-		-

Optionsbeschreibungen:

(1) Dimension Wählen Sie:
612 für 6 in x 12 in
624 für 6 in x 24 in
1212 für 12 in x 12 in
1224 für 12 in x 24 in
2424 für 24 in x 24 in

(2) Watt Wählen Sie:
180 für 180 W
360 für 360 W
720 für 720 W
1440 für 1440 W

(3) Volt Wählen Sie:
120 für 120 V
240 für 240V

(4) High-Limit Thermostat Temperature Rating Wählen Sie:
T3 für 145°C (292°F)
T4A für 70°C (158°F)

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
