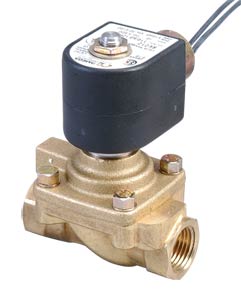

Solenoid Valve, 2-Way General Purpose
Brass Body, Normally Open

SV210 Series

SV210_SERIES 2-Way General Purpose Solenoid Valves

ZUR BESTELLTABELLE

Durable Brass Valve Body
Rugged NEMA 4 (IP65) Housing
Mounts in Any Position
Rated for Continuous Duty

Ventile, Regler und I/P-Konverter - Verwandte Produkte anzeigen

Beschreibung

Follow this link if you want to know how a solenoid valve works.

TYPICAL APPLICATIONS: Water Treatment, Dry Cleaning, Commercial Laundry Equipment, Irrigation, Cooling, Petroleum Processing, Dish and Bottle Washing, Pollution Control, Heat Exchangers

The SV211 through SV217 are pilot-operated solenoid valves. These valves use the energy stored in the pressurized fluid to actuate the valving mechanism. They require the minimum pressure differential specified for proper valve operation. A direct-acting, normally open solenoid valve is an integral part of the pilot-operated valve and is used to affect the balance of pressure above and below a diaphragm or piston.

SPECIFICATIONS
Operation: Pilot operated
Wetted Parts: Brass, Stainless steel, copper, and seal
Medium: Liquid or gases
Max Static Pressure: 1.5 times max psid, vacuum (>5 microns ABS)
Ambient Temp: -9 to 50°C (15 to 122°F)
Mounting: Pipe mounting, any direction
Power: 10 W, 120 Vac, Class F

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Accessories

SVCOIL-110AC

€87,41

Lieferzeit: 16 Wochen

Replacement coil, 110 Vac

SVCOIL-220AC

€95,48

Lieferzeit: 1 Woche

Replacement coil, 220 Vac

*Alle Preisangaben in Euro.
