Solenoid Valves, 3-Way and 4-Way

SV240, SV250, SV260 and SV270 Series

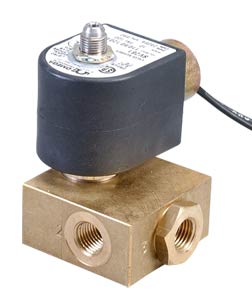

3-Way and 4-Way Solenoid Valves Direct-Acting or Pilot-Operated | SV240, SV250, SV260 and SV270 Series

486,10 SV261

CE
  • General Purpose, Quick Exhaust, and Selectable NO/NC Models
  • Rugged NEMA 4 (IP65) Housing
  • Mounts in Any Position
  • Rated for Continuous Duty
Ventile, Regler und I/P-Konverter - Verwandte Produkte anzeigen

Beschreibung

Find how a Solenoid valve works on this link.

TYPICAL APPLICATIONS: Mobile Equipment, Gas Sampling, Compressors, Ball Valve Actuators, Cylinders, Dispensing, Laundry Equipment, Machine Tool Equipment

The SV241, SV242, and SV261 Series valves are 3-way, directacting, and normally closed. The SV241 and SV242 can be used for liquids or gases, while the SV261 offers a quick-exhaust feature and is limited to air use. The most common application for these 3-way valves is the control of single-acting cylinders or spring-return actuators. The pressure inlet port is blocked in the de-energized position.

A 3-way normally closed valve has 3 ports labeled 1, 2, and 3. When de-energized, no flow occurs from port 1, but there is flow from port 2 to 3. When energized, flow occurs from port 1 to 2, but no flow occurs from port 3. Usually, 3-way valves are used to control larger pneumatically activated valves. Port 1 is connected to the pressure source, port 2 is connected to the cylinder controlling the pneumatic activation, and port 3 is the exhaust port vented to the room.

The SV251 is a multipurpose 3-way valve and can be used as normally open or normally closed. During installation, for normally closed select port 1 as supply pressure. Port 2 is connected to the pneumatic cylinder, and port 3 is the exhaust port. To configure as normally open, select port 3 as supply pressure. Port 2 is connected to the pneumatic cylinder, and port 1 is the exhaust port. The SV251 can be used for liquids or gases.

The SV271 is a 4-way, 5-ported solenoid valve, rated for air applications only. It is a 2- position, pilot-operated valve typically used to control doubleacting cylinders or pneumatic actuators. A 4-way valve has ports labeled 1, 2, 3, 4, and 5. When de-energized, pressure is supplied to port 1, which is open to cylinder port 4 and closed to cylinder port 2. Port 4 is closed to exhaust port 3. When energized, pressure port 1 is closed to cylinder port 4 and open to cylinder port 2. Cylinder port 2 is closed to exhaust port 3. Cylinder port 4 is open to exhaust port 5.

SPECIFICATIONS
Operation:
    SV241, SV242 and SV251: Direct acting
    SV261, SV271: Pilot operated
Wetted Parts: Brass, Stainless steel, copper, and seal
    SV241: Also Delrin®,
    SV271: Aluminum, Delrin®, stainless steel, copper and seal
Medium: Liquid or gases as specified in "To Order" chart
Max Static Pressure: 1.5 times max psid
Ambient Temp: -9 to 50°C (15 to 122°F)
Mounting: Pipe mounting, any direction
Power: 10 W, 120 Vac coils, 50 to 60 Hz
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
3-Way General Purpose, Direct Acting, Normally Closed, Brass Body
SV241
243,80
Lieferzeit: 16 Wochen

150 max psid
3-Way Selectable Service, Direct Acting, User-Selectable NO or NC, Brass Body
SV251
219,95
Lieferzeit: 1 Woche

100 max psid
3-Way Quick Exhaust, Pilot Operated, Normally Closed, Brass Body, Air Only
4-Way General Purpose, Pilot Operated, Normally Closed, Aluminum Body, Air Only
ACCESSORIES
SVCOIL-110AC
€87,41
Lieferzeit: 16 Wochen

Replacement coil, 110 vac
SVCOIL-220AC
€95,48
Lieferzeit: 1 Woche

Replacement coil, 220 vac
*Alle Preisangaben in Euro.
