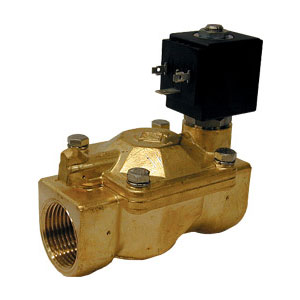

OMEGA-FLO® 2-Way Solenoid Valves

SV6000 Series

SV6000 SOLENOID VALVE, ON OFF VALVE, COIL | SV6000 Series

SV6000 SOLENOID VALVE, ON OFF VALVE, COIL

€299,84 SV6004-NO

ZUR BESTELLTABELLE
1 year warranty CE
  • Normally Closed or Normally Open
  • Ideal for Compressed Air, Inert Gas, Synthetic Oils and Water
  • 120 Vac Standard (220 Vac and DC Coils are Optional)
  • All Coils are CE
Ventile - Verwandte Produkte anzeigen

Beschreibung

Follow this link if you want to know how a solenoid valve works.

SV-6000 Series 2-way solenoid valves are internally piloted with assisted lift valves featuring Brass, stainless steel construction and FKM seal material. The temperature range from -10 to 137°C (14 to 280°F) and FKM 0- ring material is ideal for neutral media such as compressed air, inert gases, synthetic oils and water. Buna-N O-rings are good for compressed air, inert gases, and water. Buna-N O-rings have a more limited temperature range from -10 to 90.5°C (14 to 195°F). Electrical connection options are a 1/2" conduit plug or strain relief cable grip connector.
Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.
Stk
Beschreibung
Normally Closed

SV6001
€143,47
Lieferzeit: 3 Wochen

1/4" NPT Cv=1.5

SV6002
€149,34
Lieferzeit: 3 Wochen

3/8" NPT Cv=1.7
Click to expand/minimize a list of what others bought with theSV6003
SV6003
€145,11
Lieferzeit: 3 Wochen

1/2" NPT Cv=1.7
Click to expand/minimize a list of what others bought with theSV6004
SV6004
€262,21
Lieferzeit: 1 Woche

3/4" NPT Cv=9.8
Click to expand/minimize a list of what others bought with theSV6005
SV6005
€281,03
Lieferzeit: 4 Wochen

1" NPT Cv=14

SV6006
€531,26
Lieferzeit: 3 Wochen

1 1/4" NPT Cv=28
Click to expand/minimize a list of what others bought with theSV6007
SV6007
€594,10
Lieferzeit: 3 Wochen

1 1/2" NPT Cv=36

SV6008
€770,14
Lieferzeit: 3 Wochen

2" NPT Cv=53
Normally Open
Click to expand/minimize a list of what others bought with theSV6004-NO
SV6004-NO
€299,84
Lieferzeit: 5 Wochen

3/4" NPT Cv=9.8
Click to expand/minimize a list of what others bought with theSV6005-NO
SV6005-NO
€323,33
Lieferzeit: 5 Wochen

1" NPT Cv=14

SV6006-NO
€570,27
Lieferzeit: 5 Wochen

1 1/4" NPT Cv=28

SV6007-NO
€611,42
Lieferzeit: 5 Wochen

1 1/2" NPT Cv=36

SV6008-NO
€817,18
Lieferzeit: 5 Wochen

2" NPT Cv=53
Connectors
Click to expand/minimize a list of what others bought with theSV-CGC
SV-CGC
€16,70
Lieferzeit: 1 Woche

Cable grip connector
Click to expand/minimize a list of what others bought with theSV-CC
SV-CC
€16,69
Lieferzeit: 1 Woche

1/2" conduit connector
Coils
Click to expand/minimize a list of what others bought with theSV8COIL-115AC
SV8COIL-115AC
€50,64
Lieferzeit: 1 Woche

Replacement 8W coil for 110 to 120 VAC/50 to 60 Hz 154ºC (310ºF) (Class F)
Click to expand/minimize a list of what others bought with theSV8COIL-12DC
SV8COIL-12DC
€47,41
Lieferzeit: 1 Woche

8W coil for 12 Vdc 154ºC (310ºF) (Class F)
Click to expand/minimize a list of what others bought with theSV8COIL-24DC
SV8COIL-24DC
€51,68
Lieferzeit: 1 Woche

8W coil for 24 Vdc 154ºC (310ºF) (Class F)
Click to expand/minimize a list of what others bought with theSV8COIL-24AC/60HZ
SV8COIL-24AC/60HZ
€50,65
Lieferzeit: 1 Woche

8W coil for 24 Vac/60Hz 182º (360ºF) (Class H)
Click to expand/minimize a list of what others bought with theSV8COIL-220AC
SV8COIL-220AC
€46,46
Lieferzeit: ab Lager

8W coil for 220 to 240 Vac/50 to 60 Hz 154ºC (310ºF) (Class F)
Click to expand/minimize a list of what others bought with theSV8COIL-115/60HZ
SV8COIL-115/60HZ
€72,34
Lieferzeit: 1 Woche

8W coil for 115 Vac/60 Hz 182º (360ºF) (Class H)
Click to expand/minimize a list of what others bought with theSV12COIL-120/60HZ
SV12COIL-120/60HZ
€73,80
Lieferzeit: 3 Wochen

12W coil for 120 Vac/60 Hz 154ºC (310ºF) (Class F)

SV12COIL-12DC
€69,14
Lieferzeit: 1 Woche

12W coil for 12 Vdc 154ºC (310ºF) (Class F)
Click to expand/minimize a list of what others bought with theSV12COIL-24DC
SV12COIL-24DC
€67,70
Lieferzeit: 1 Woche

12W coil for 24 Vdc 154ºC (310ºF) (Class F)
Click to expand/minimize a list of what others bought with theSV14COIL-24DC
SV14COIL-24DC
€97,11
Lieferzeit: 1 Woche

14W coil for 24 Vdc 182º (360ºF) (Class H)

SV14COIL-24/50-60HZ
€106,25
Lieferzeit: 1 Woche

14W coil for 24 Vac/50 to 60Hz 182º (360ºF) (Class H)
Click to expand/minimize a list of what others bought with theSV14COIL-12DC
SV14COIL-12DC
€97,10
Lieferzeit: 1 Woche

14W coil for 12 Vdc 182º (360ºF) (Class H)
Repair Kits (Include Diaphragm, Spring, Plunger, and O-rings)

VRK-6000
€95,69
Lieferzeit: 3 Wochen

Repair kit for SV6001, SV6002, SV6003

VRK-6000-NO
€108,88
Lieferzeit: 5 Wochen

Repair kit for SV6002-NO, SV6003-NO

VRK-6045
€108,52
Lieferzeit: 3 Wochen

Repair kit for SV6004, SV6005

VRK-6045-V
€108,52
Lieferzeit: 1 Woche

Repair kit for SV6004, SV6005 with FKM O-rings

VRK-6045-NO
€121,09
Lieferzeit: 5 Wochen

Repair kit for SV6004-NO, SV6005-NO

VRK-6067
€302,86
Lieferzeit: 3 Wochen

Repair kit for SV6006, SV6007

VRK-6067-V
€318,02
Lieferzeit: 5 Wochen

Repair kit for SV6006, SV6007 with FKM O-rings

VRK-6067-NO
€296,94
Lieferzeit: 5 Wochen

Repair kit for SV6006-NO, SV6007-NO

VRK-6008
€326,68
Lieferzeit: 1 Woche

Repair kit for SV6008

VRK-6008-V
€341,55
Lieferzeit: 5 Wochen

Repair kit for SV6008 with FKM O-rings

VRK-6008-NO
€326,68
Lieferzeit: 5 Wochen

Repair kit for SV6008-NO
*Alle Preisangaben in Euro.
 Anmerkung: Comes complete with operator's manual, 8 W coil, and cable grip connector.
Add “-V” to model numbers to change standard BUNA O-rings to FKM and add $50 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
