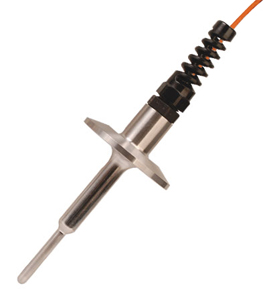

Hygienic Thermocouple Sensor With Integral Cable

TCS-H-CB-120 Hygienic Thermocouples

^€265,24 TCS-TU-H-0300-D1-CB-120

ZUR BESTELLTABELLE

1/4" Diameter Probe Design for Standard Duty, or
3/8" to 3/16" Stepped Probe Design For Heavy Duty Applications
Probe Lengths of 3", 4", 5" and 6" Available From Stock, Other Lengths Also Available
Process Connection is a 1½"-16 AMP Tri-Grip™ (Tri-Clamp® Compatible) Standard Conforming to ASME BPE-2007. Other Cap Sizes and Styles are Available.
Sensor Can be Used in Sanitary, Hygienic and Clean-In-Place Food, Dairy, Beverage and BioPharmaceutical Processes
316L SS Wetted Surfaces with 32 µ in or Better Finish
Includes 2-Conductor (#24AWG Stranded) Special Limits of Error Thermocouple Cable with PFA Insulation and Jacket, 10' Long with Molded Nylon Strain Relief, Longer Lengths Available
Sensor Cables Supplied with Stripped Leads, Optional Connectors, Transmitters and Electronic Instruments are Available.
Ungrounded Type J, K, T or E Thermocouples.
-50 to 200°C (-58 to 392°F) Temperature Range

Hygienegerecht - Verwandte Produkte anzeigen

Beschreibung

Find how Sanitary Sensors works on this link.

The OMEGA™ TCS-S-CB and TCS-H-CB Series Thermocouple Sensors are designed for use in Sanitary or Hygienic Clean-in-Place applications in the Food, Dairy, Beverage and BioPharmaceutical industries. These sensors are manufactured with 316L stainless steel housings that meet the dimensional requirements of the ASME BPE-2007 Standard, and are welded and processed to provide a clean, smooth, 32 µinch or better surface finish in the wetted areas for easy cleaning.

In addition to the standard 1½-16AMP process connection, these can be provided in the following sizes and styles:

Process Connection	Model Number Code
3/4"-16AMP	-B1-
1" and 1½"-16AMP	-D1-
2"-16AMP	-E1-
2½"-16AMP	-F1-
3"-16AMP	-G1-
4"-16AMP	-H1-

If you need a process connection that is not listed above, please contact our sales department for availability.

The probe stems are manufactured in two configurations; standard ¼" diameter probe for standard duty service, and a stepped 3/8" to 3/16" diameter probe design for good response times in heavy duty applications.

The integral cable with molded strain relief allows for easy and direct connection to your instrumentation. These sensors are also available in RTD and Thermistor styles to accommodate any process input requirement. In addition to the standard 1½-16AMP flange design, these can be provided in a wide variety of flange sizes and styles. If you need something a little (or a lot) different, we can accommodate your needs.

Food process hygienic temperature sensors can be used to aid food safety inspection compliance and verification of time temperature control. Combined with a chart recorder model CTXL you can temperature monitor a CCP ( Critical Control Point) or sanitation time and move toward a HACCP (Hazard Analysis Critical Control Point) compliance plan.

This sensor is stocked with Type "T" or Type "J" Thermocouples standard, but are available in any thermocouple type:

Thermocouple Type	Positive/Negative Conductors	Color Code (Red is Negative)
Type T	Copper/Constantan	Blue/Red with Brown Jacket
Type E	Chromel/Constantan	Purple/Red with Brown Jacket
Type K	Chromel/Alumel	Yellow/Red with Brown Jacket
Type J	Iron/Constantan	White/Red with Brown Jacket

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

Standard Duty ¼" Probe Design

TCS-TU-S-0300-D1-CB-120

€214,19

Lieferzeit: 5 Wochen

3" Probe, Type "T" Thermocouple

TCS-TU-S-0400-D1-CB-120

€214,19

Lieferzeit: 5 Wochen

4" Probe, Type 'T" Thermocouple

TCS-TU-S-0500-D1-CB-120

€214,19

Lieferzeit: 5 Wochen

5" Probe, Type "T" Thermocouple

TCS-TU-S-0600-D1-CB-120

€210,60

Lieferzeit: 5 Wochen

6" Probe, Type "T" Thermocouple

TCS-JU-S-0300-D1-CB-120

€218,41

Lieferzeit: 5 Wochen

3" Probe, Type "J" Thermocouple

TCS-JU-S-0400-D1-CB-120

€214,19

Lieferzeit: 5 Wochen

4" Probe, Type "J" Thermocouple

TCS-JU-S-0500-D1-CB-120

€214,19

Lieferzeit: 5 Wochen

5" Probe, Type "J" Thermocouple

TCS-JU-S-0600-D1-CB-120

€214,19

Lieferzeit: 5 Wochen

6" Probe, Type "J" Thermocouple

Heavy Duty 3/8" to 3/16" Probe Design

TCS-TU-H-0300-D1-CB-120

€265,24

Lieferzeit: 5 Wochen

3" Probe, Type "T" Thermocouple

TCS-TU-H-0400-D1-CB-120

€265,24

Lieferzeit: 5 Wochen

4" Probe, Type "T" Thermocouple

TCS-TU-H-0500-D1-CB-120

€265,24

Lieferzeit: 5 Wochen

5" Probe, Type "T" Thermocouple

TCS-TU-H-0600-D1-CB-120

€265,24

Lieferzeit: 5 Wochen

6" Probe, Type "T" Thermocouple

TCS-JU-H-0300-D1-CB-120

€318,29

Lieferzeit: 5 Wochen

3" Probe, Type "J" Thermocouple

TCS-JU-H-0400-D1-CB-120

€265,24

Lieferzeit: 5 Wochen

4" Probe, Type "J" Thermocouple

TCS-JU-H-0500-D1-CB-120

€265,24

Lieferzeit: 5 Wochen

5" Probe, Type "J" Thermocouple

TCS-JU-H-0600-D1-CB-120

€265,24

Lieferzeit: 5 Wochen

6" Probe, Type "J" Thermocouple

*Alle Preisangaben in Euro.
Anmerkung: Please contact sales for different probe/cable lengths and flange diameters.
Ordering Example: (1) TCS-TU-S-0300-D1-CB-120 Ungrounded Type, €214,19

Modellkonfigurator

Stellen Sie Ihre Modellnummer zusammen

	(1)		(2)		(3)		(4)		(5)
TCS-		U-		-		-		-CB-

Optionsbeschreibungen:

(1) Thermocouple Type Wählen Sie:
T für Type T
J für Type J
K für Type K
E für Type E

(2) Probe Diameter Wählen Sie:
S für Standard Duty 1/4 inch
H für Heavy Duty 3/8 to 3/16 inch stepped probe

(3) Probe Length Wählen Sie:
0300 für 3 inch length
0400 für 4 inch length
0500 für 5 inch length
0600 für 6 inch length

(4) Sanitary Flange (Cap) Size Wählen Sie:
D1 für 1-1/2 inch Tri-Grip Flange (standard)
B1 für 3/4 inch 16AMP Tri-Grip Flange
E1 für 2 inch 16AMP Tri-Grip Flange
F1 für 2-1/2 inch 16AMP Tri-Grip Flange
G1 für 3 inch 16AMP Tri-Grip Flange
H1 für 4 inch 16AMP Tri-Grip Flange

(5) Lead Wire Cable Length Wählen Sie:
120 für 120 inch/10 ft (standard)
144 für 144 inch/12 ft
180 für 180 inch/15 ft
240 für 240 inch/20 ft

Anmerkung: Nicht alle Optionen können miteinander kombiniert werden, die gültigen Teilenummern entnehmen Sie bitte dem Datenblatt.
