Heavy-Duty 30.5mm Metal Push Buttons, Selector Switches, Contact Blocks, Legend Plates and Pushbutton Enclosures

10250T Series

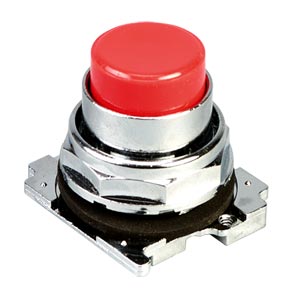

Heavy-Duty 30.5mm Metal Pushbuttons, Selector Switches, Contact Blocks, Legend Plates and Push Buttons Enclosures | 10250T Series

€45,21 10250T112

ZUR BESTELLTABELLE
CE
  • Heavy-Duty Zinc Die Cast Construction
  • Enclosed Silver Contacts with Reliability Nibs
  • Diaphragm Seals with Drainage Holes
  • Grounding Nibs on Operator Casing
Steuerschalter - Verwandte Produkte anzeigen

Beschreibung

The 30.5 mm pushbutton line features a zinc die cast construction with chrome-plated housing and mounting nut. The same durable construction is also available with the corrosive resistant E34 Series of pushbuttons.

The contact blocks feature enclosed silver contacts with pointed "reliability nibs" for reliable performance from logic level up to 600V. To ensure reliable switching, nibs bite through oxide which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications.

Reliability nibs improve performance in dry circuit, corrosive, fine dust and other contaminated atmospheres.

Under normal environmental conditions, the minimum operational voltage is 5V and the minimum operational current is 1 mA, AC/DC. For operation under a wider range of environmental conditions, logic level contact blocks with inert palladium tipped contacts are recommended.

10250T Series operators have "grounding nibs"?4 metal points on the operator casting designed to bite through most paints and other coatings on metal panels to enhance the ground connection when the operator is securely tightened.

The 10250T pushbutton operators offer front of panel drainage via holes in the operator bushing. Hidden from view by the mounting nut, these holes prevent buildup of liquid inside the operator, which can prevent operation in freezing environments. The holes also provide a route for escaping liquid in high pressure washdowns, effectively relieving pressure from the internal diaphragm seal. This ensures reliable sealing in applications even beyond NEMA 4.

SPECIFICATIONS
Standards and Certifications:
CE EN60947-5-1
    UL 508: File No. 131568
    CSA C22.2 No. 14: File No. LR68551
Ingress Protection (When Mounted in Similarly Rated Enclosure):
    Standard Indicating Lights: UL (NEMA) Type 1, 2, 3, 3R, 3S, 4, 4X, 12, 13; IEC IP65
    All Other Operators: UL (NEMA) Type 1, 2, 3, 3R, 4, 4X, 12, 13; IEC IP65
MECHANICAL RATINGS
Frequency of Operation:
    All Pushbuttons: 6000 operations per hr
    Key and Lever Selector Switches: 3000 operations per hr
    Auto-Latch Devices: 1200 operations per hr
Life:
Pushbuttons: 10 x 106 operations
Contact Blocks: 10 x 106 operations
PresTest Units: 10 x 106 operations
Lever and Key Selector Switches: 0.25 x 106 operations
Twist-to-Release Pushbuttons: 0.3 x 106 operation
Shock Resistance Duration: 20 mS ≥ 5g
Climate Conditions:
    Operating Temperature: -17 to 66?C (1 to 150?F)
    Storage Temperature: -40 to 80?C (-40 to 176?F)
    Altitude: 2000 m (6562')
    Max Humidity: 95% RH @ 60?C (140?F)
Terminals: Marking; NC-NO on the contact block to meet the NEMA requirements; dual marking system 1 to 2 for normally closed, 3 to 4 for normally open to meet BS5472(Cenelec EN50 005)
Clamps: Terminals are saddle clamp type for 1 x 22 AWG (0.34 mm2) to 2 x 14 AWG (2.5 mm2) conductors; torque = 7 lb-in (0.8 Nm)
Degree of Protection Against Direct Electrical Contact: IP2X with fingerproof shroud
Light Units: Transformers will withstand short circuit for 1 hr per IEC 60997-5-1
Average Bulb Life:
    Transformer type: 20,000 hrs
    Resistor/Direct Voltage Type: 2500 hr min @ rated V
    LED: 60,000 to 100,000 hrs
Electrical Ratings
    Insulation: Ui = 660 Vac or Vdc
    Thermal: lth = 10 A
Short Circuit Coordination to IEC/EN 60947-5-1:
    Rated Conditional Short Circuit Current: 1 kA
    Fuse Type: GE Power Controls TIA 10, Red Spot Type gG, 10 A, 660 Vac, 460 Vdc, BS88-2, IEC 60269-2-1
    UL Rating: A600, P600
AC Load Life Duty Cycle: 1200 operations per hr
    10A: 110V pf 0.4 ? 1 x 106 operations
    5A: 250V pf 0.4 ? 1 x 106 operations
    2A: 660V pf 0.4 ? 1 x 106 operations
Switching Capacity:
    AC15 Rated Make/Break (11 x le at 1.1 x Ue):
        6 A: 120V pf 0.3
        4 A: 240V pf 0.3
        2 A: 660V pf 0.3
    DC13 Rated Make/Break (1.1 x le at 1.1 x Ue):
        1.0 A: 125V L/R≥ 0.95 @ 300 mS
        0.55 A: 250V L/R ≥ 0.95 @ 300 mS
        0.1 A: 660V L/R ≥ 0.95 @ 300 mS
        10 A: 110V pure resistive
Maximum Ratings for Logic Level and Hostile Atmosphere Application:
    Max Amperes: 0.5 A
    Max Volts: 120 Vac/Vdc
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung

COMPLETE PUSHBUTTONS - Contact Block included
10250T23B
€72,52
Lieferzeit: 8 Wochen

Start button (black flush button comes with NO contact block)
10250T25R
€72,52
Lieferzeit: 8 Wochen

Stop button (red extended button comes with NC contact block)
10250T29
€145,53
Lieferzeit: 1 Woche

'Emergency Stop' -momentary- Red JUMBO mushroom head button comes with NC contact block

Non-Illuminated Pushbutton Operators - Contact Blocks sold separately
10250T101
€46,87
Lieferzeit: 8 Wochen

Black flush pushbutton operator, momentary
10250T103
€49,45
Lieferzeit: 1 Woche

Green flush pushbutton operator, momentary
10250T112
€45,21
Lieferzeit: 1 Woche

Red extended pushbutton operator, momentary
10250T122
Consult Sales
Lieferzeit:


Red mushroom head operator, momentary
10250T17213
€118,18
Lieferzeit: 1 Woche

E-Stop mushroom operator, momentary
10250T172
€135,36
Lieferzeit: 1 Woche

Red jumbo mushroom head operator, momentary
Non-Illuminated Push-Pull Operators - Button Head & Contact Blocks sold separately
10250T5
€86,24
Lieferzeit: 8 Wochen

Push-pull maintained 2-position operator without lens
Non-Illuminated Push-Pull Button Heads
10250TB62
€13,02
Lieferzeit: 8 Wochen

Red mushroom push-pull buton head
10250TB63
€13,02
Lieferzeit: 1 Woche

Red 'Emergency Stop' mushroom push-pull buton head
10250TJ62
€71,64
Lieferzeit: 8 Wochen

Red JUMBO mushroom push-pull buton head
10250TJ63
€110,53
Lieferzeit: 8 Wochen

Red JUMBO mushroom 'Emergency Stop' push-pull buton head

Illuminated Pushbutton Operators - Lens & Contact Blocks sold separately
10250T411
€156,76
Lieferzeit: 8 Wochen

Illuminated pushbutton operator, no lens, 120 Vac, incandescent, momentary
10250T79
€102,61
Lieferzeit: 8 Wochen

24/28V incandescent light module
Lens for Illuminated Pushbuttons
10250TC21
€12,31
Lieferzeit: 8 Wochen

Red glass lens for illuminated pushbuttons
10250TC43
€14,17
Lieferzeit: 1 Woche

Amber glass lens for illuminated pushbuttons
10250TC22
€12,31
Lieferzeit: 8 Wochen

Green glass lens for illuminated pushbuttons
10250TC14N
€22,14
Lieferzeit: 1 Woche

Green plastic lens for illuminated pushbuttons
10250TC15N
€22,14
Lieferzeit: 8 Wochen

Amber plastic lens for illuminated pushbuttons
10250TC13N
€22,14
Lieferzeit: 8 Wochen

Red plastic lens for illuminated pushbuttons
Illuminated Push-Pull Operators - Button Head & Contact Blocks sold separately
10250T63
€128,62
Lieferzeit: 8 Wochen

120V transformer incandescent Push-Pull light unit. maintained
Lens for Illuminated Push-Pull Pushbuttons
10250TC47
€13,73
Lieferzeit: 1 Woche

Red mushroom lens for push-pull pushbuttons
10250TC53
€13,02
Lieferzeit: 8 Wochen

Red mushroom lens for push-pull pushbuttons
10250TC57
€29,90
Lieferzeit: 1 Woche

Red mushroom side illuminated aluminum ring lens
10250TC63
€29,90
Lieferzeit: 8 Wochen

Red mushroom 'Emergency Stop' lens for push-pull pushbuttons

INDICATING LIGHTS - Lens sold separately
10250T181N
€156,76
Lieferzeit: 8 Wochen

120V transformer type
10250T201N
€128,62
Lieferzeit: 1 Woche

120V full voltage/resistor type
Lens for Indicating Lights
10250TC1N
€12,31
Lieferzeit: 1 Woche

Red plastic lens for indcating light
10250TC2N
€12,31
Lieferzeit: 1 Woche

Green plastic lens for indcating light
10250TC19N
€12,31
Lieferzeit: 8 Wochen

Amber plastic lens for indcating light
10250TC6N
€12,31
Lieferzeit: 8 Wochen

White plastic lens for indcating light
10250TC7N
€22,14
Lieferzeit: 1 Woche

Red glass lens for indcating light
10250TC8N
€22,14
Lieferzeit: 1 Woche

Green glass lens for indcating light
10250TC9N
€22,14
Lieferzeit: 8 Wochen

Amber glass lens for indcating light
10250TC12N
€22,14
Lieferzeit: 8 Wochen

White glass lens for indcating light
PRES-TO-TEST INDICATING LIGHTS - Lens sold separately

10250T221N
€207,37
Lieferzeit: 8 Wochen

Pres-to-test indicating light, 120V transformer type
10250T231N
€175,23
Lieferzeit: 8 Wochen

Pres-to-test indicating light, 120V full voltage/resistor type
Lens for Pres-To-Test Indicating Lights
10250TC21
€12,31
Lieferzeit: 8 Wochen

Red plastic lens for Pres-To-Test indicating lights
10250TC22
€12,31
Lieferzeit: 8 Wochen

Green plastic lens for Pres-To-Test indicating lights
10250TC43
€14,17
Lieferzeit: 1 Woche

Amber plastic lens for Pres-To-Test indicating lights
10250TC13N
€22,14
Lieferzeit: 8 Wochen

Red glass lens for Pres-To-Test indicating lights
10250TC14N
€22,14
Lieferzeit: 1 Woche

Green glass lens for Pres-To-Test indicating lights
10250TC15N
€22,14
Lieferzeit: 8 Wochen

Amber glass lens for Pres-To-Test indicating lights

SELECTOR SWITCHES
Complete Selector Switches - Contact Blocks Included
10250T20LB
€145,94
Lieferzeit: 1 Woche

On/Off switch (black knob switch comes with NO-NC contact block)
10250T21LB
€117,59
Lieferzeit: 1 Woche

H-O-A switch (black lever switch comes with NO-NO contact block)
Selector Switch Operators - Contact Blocks sold separately

10250T1311
€67,67
Lieferzeit: 1 Woche

2-position maintained selector switch, knob
10250T1323
€64,14
Lieferzeit: 8 Wochen

3-position maintained selector switch, knob
10250T3011
€64,14
Lieferzeit: 8 Wochen

2-position maintained selector switch, lever
10250T3023
€60,84
Lieferzeit: 7 Wochen

3-position maintained selector switch, lever
10250T15112
€153,54
Lieferzeit: 8 Wochen

2-position maintained selector switch, keyed
10250T15237
Consult Sales
Lieferzeit:


3-position maintained selector switch, keyed

CONTACT BLOCKS
10250T2
€54,14
Lieferzeit: 1 Woche

Contact block, 2 NO, up to 6 blocks can be stacked
10250T3
€54,14
Lieferzeit: 1 Woche

Contact block, 2 NC, up to 6 blocks can be stacked
10250T51
€27,62
Lieferzeit: 1 Woche

Contact block, 1 NC, up to 6 blocks can be stacked
10250T53
€27,85
Lieferzeit: 9 Wochen

Contact block, 1 NO, up to 6 blocks can be stacked
10250T1
€60,09
Lieferzeit: 1 Woche

Contact block, NO-NC, up to 6 blocks can be stacked
10250T71
€26,17
Lieferzeit: 8 Wochen

Contact block, Late Opening NC, up to 6 blocks can be stacked
10250T47
€52,20
Lieferzeit: 8 Wochen

Contact block, Early Closing NO and standard NC, up to 6 blocks can be stacked
10250T57
€52,20
Lieferzeit: 8 Wochen

Contact block, Early Closing NO and standard NO, up to 4 blocks can be stacked

10250T Legend Plates
10250TM13
€5,95
Lieferzeit: 8 Wochen

E-stop
10250TM24
€5,95
Lieferzeit: 8 Wochen

Off
10250TM25
€5,95
Lieferzeit: 8 Wochen

On
10250TM31
€5,95
Lieferzeit: 8 Wochen

Run
10250TM33
€5,95
Lieferzeit: 8 Wochen

Start
10250TM34
€5,95
Lieferzeit: 8 Wochen

Stop
10250TM36
€5,95
Lieferzeit: 8 Wochen

Blank
10250TM38
€5,95
Lieferzeit: 8 Wochen

For/Rev
10250TM42
€7,82
Lieferzeit: 1 Woche

Off/On
10250TM47
€6,49
Lieferzeit: 1 Woche

Start/Stop
10250TM50
€5,95
Lieferzeit: 8 Wochen

F-O-R
10250TM51
€5,95
Lieferzeit: 8 Wochen

H-O-A
10250TM80
€5,95
Lieferzeit: 8 Wochen

Power On

Die Cast Pushbutton Enclosures NEMA 4, 4X, 12, & 13
10250TN11
€156,76
Lieferzeit: 8 Wochen

1 Button enclosure
10250TN12
€175,23
Lieferzeit: 8 Wochen

2 Button enclosure
10250TN13
€207,37
Lieferzeit: 8 Wochen

3 Button enclosure
10250TN14
€255,62
Lieferzeit: 8 Wochen

4 Button enclosure

Replacement Lamps
10250ED986-4
€31,69
Lieferzeit: 8 Wochen

6.3V, 10250T flasher
28-2202
€13,02
Lieferzeit: 8 Wochen

6.3V, 10250T transformer, PresTest and full voltage
28-5184
€13,02
Lieferzeit: 8 Wochen

12V, 10250T full voltage
28-5185
€13,02
Lieferzeit: 8 Wochen

24V, 10250T full voltage
28-5186
€13,02
Lieferzeit: 8 Wochen

32V, 10250T full voltage
28-5187
€13,02
Lieferzeit: 8 Wochen

55V, 10250T resistor
28-494
€24,43
Lieferzeit: 8 Wochen

120V, 10250T neon
28-3754
€24,43
Lieferzeit: 8 Wochen

120V, 10250T neon, T 3¼ bayonet
28-3755
€24,43
Lieferzeit: 8 Wochen

24V, 10250T neon
*Alle Preisangaben in Euro.
 Anmerkung: Momentary Pushbutton Operators come with retaining nut, operator gasket, and instruction sheet.
All others come with instruction sheet.
 Ordering Example: (1) 10250T101 Black flush pushbutton operator, €46,87
We noticed you are from the US. Visit your local site for regional offers and live support.
Stay here.
Go to the the US site >
