Base Mount Compression Load Cells

LC414 Series

ZUR BESTELLTABELLE

High Accuracy base Mount Compression Load Cells
5-Point NIST Traceable Calibration Included
Built-In Mechanical Overload Stops
All Stainless Steel Construction for Harsh Industrial Environments
Integral Mounting Plate Threaded for 1"-8 Mounting Bolts
Up to 12.7 mm (0.5") Off-Center Loading

Last- und Wägezellen, Kraft- und Drehmomentaufnehmer - Verwandte Produkte anzeigen

Beschreibung

This item is discontinued.

More information about how a load cell works in this link.

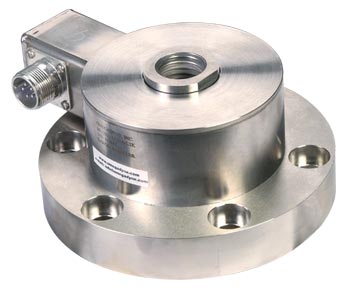

The LC414 is designed for rugged industrial weighing applications. Built-in overload stops and the ability to withstand up to 12.7 mm (0.5") off center loading allows the LC414 to survive in applications when the load cells would not. The all stainless steel construction and sealed connector provides a load cell that can withstand the harsh environments found in most industrial applications. The integral mounting plate with mounting holes makes installation fast and secure.

SPECIFICATIONS
Excitation: 10V AC or DC, 15V max
Output: 3 mV/V ±0.25%
Calibration: 5 points in compression 0%, 50%, 100%, 50%, 0% capacity
Linearity: ±0.05%
Hysteresis: ±0.05%
Repeatability: ±0.02%
Max Off Center Load: 12.7 mm (0.5") Change in Output Due to 12.7 mm
(0.5") Off Center Loading: 0.5% load
Operating Temperature: -18 to 71°C (0 to 150°F)
Compensated Temperature: -9.4 to 46°C (15 to 115°F)

Thermal Effects
Span: ±0.0014% rdg/°C rated output
Zero: ±0.0023% FS/°C rated output
Safe Overload: 150% capacity
Ultimate Overload: 225% capacity
Bridge Resistance: 350 O nominal
Protection Level: IP66
Electrical Connection: 6 m (20')
Insulation Resistance: 5000 Meg O
Span Adjustment: ±2.5%
Mating Connector: MS3106F-14S-5S, sold separately
Construction: 17-4 pH stainless steel
Connector Wiring: A = (-) Output B = (-) Excitation C = Ground D = (+) Output E = (+) Excitation

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

LC414-24

Consult Sales

Lieferzeit:

24 lb compression load cell

LC414-30

Consult Sales

Lieferzeit:

30 lb compression load cell

LC414-50

Consult Sales

Lieferzeit:

50 lb compression load cell

LC414-60

Consult Sales

Lieferzeit:

60 lb compression load cell

LC414-120

Consult Sales

Lieferzeit:

120 lb compression load cell

LC414-240

Consult Sales

Lieferzeit:

240 lb compression load cell

LC414-600

Consult Sales

Lieferzeit:

600 lb compression load cell

LC414-1.2K

Consult Sales

Lieferzeit:

1.2K lb compression load cell

LC414-2.4K

Consult Sales

Lieferzeit:

2.4K lb compression load cell

LC414-3K

Consult Sales

Lieferzeit:

3K lb compression load cell

LC414-6K

Consult Sales

Lieferzeit:

6K lb compression load cell

LC414-12K

Consult Sales

Lieferzeit:

12K lb compression load cell

LC414-24K

Consult Sales

Lieferzeit:

24K lb compression load cell

LC414-30K

Consult Sales

Lieferzeit:

30K lb compression load cell

MS3106F-14S-5S

€223,69

Lieferzeit: 9 Wochen

Mating Connector (sold separately)
